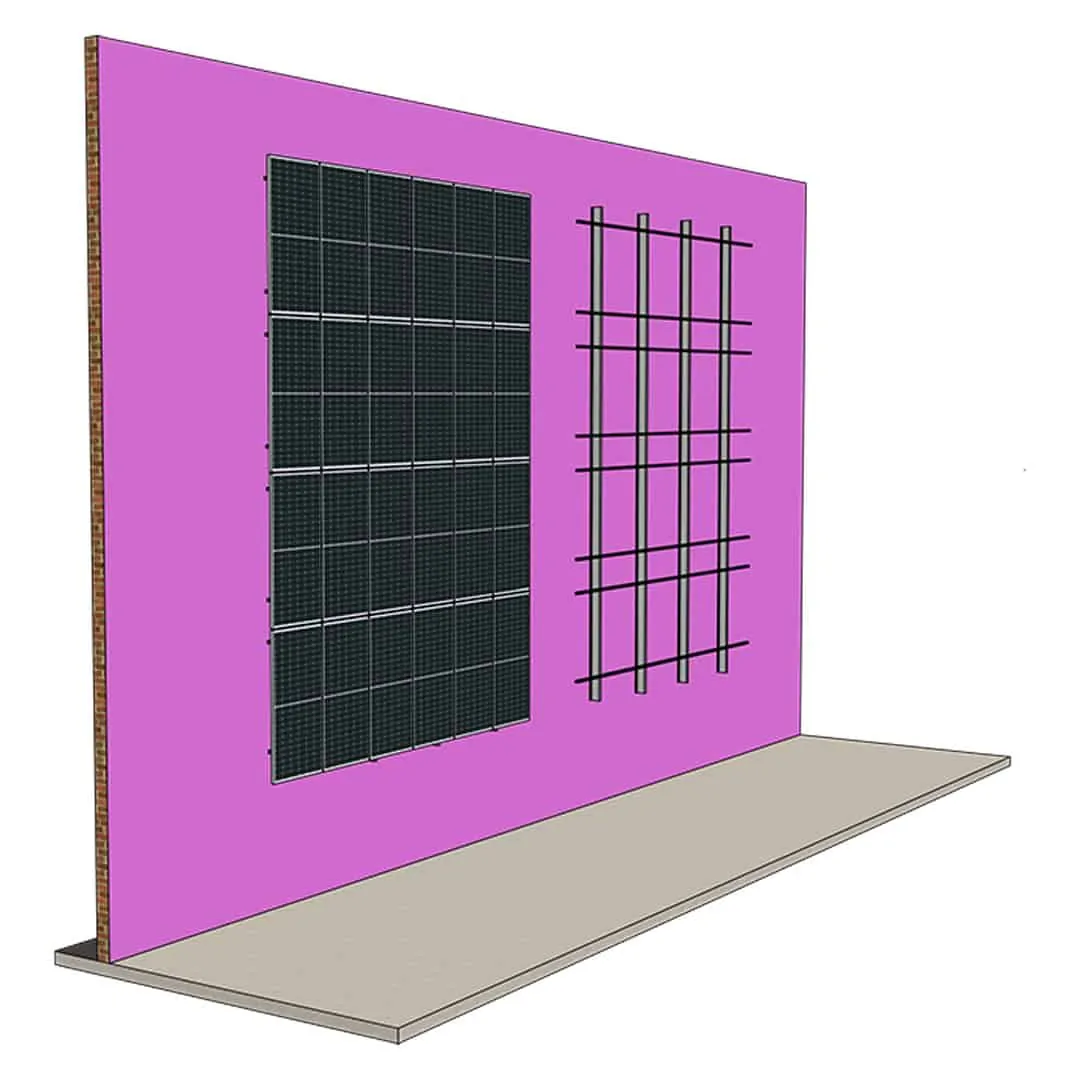

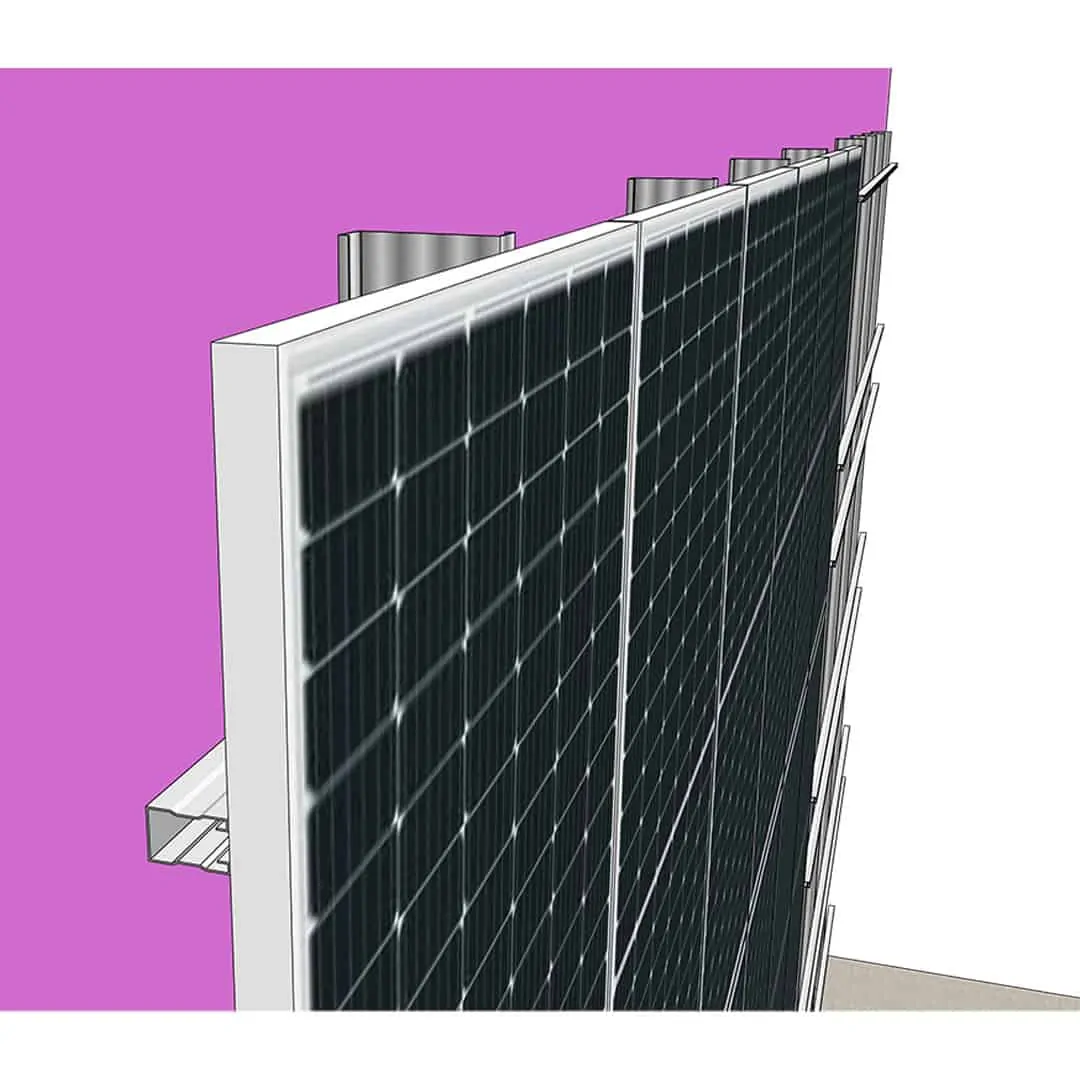

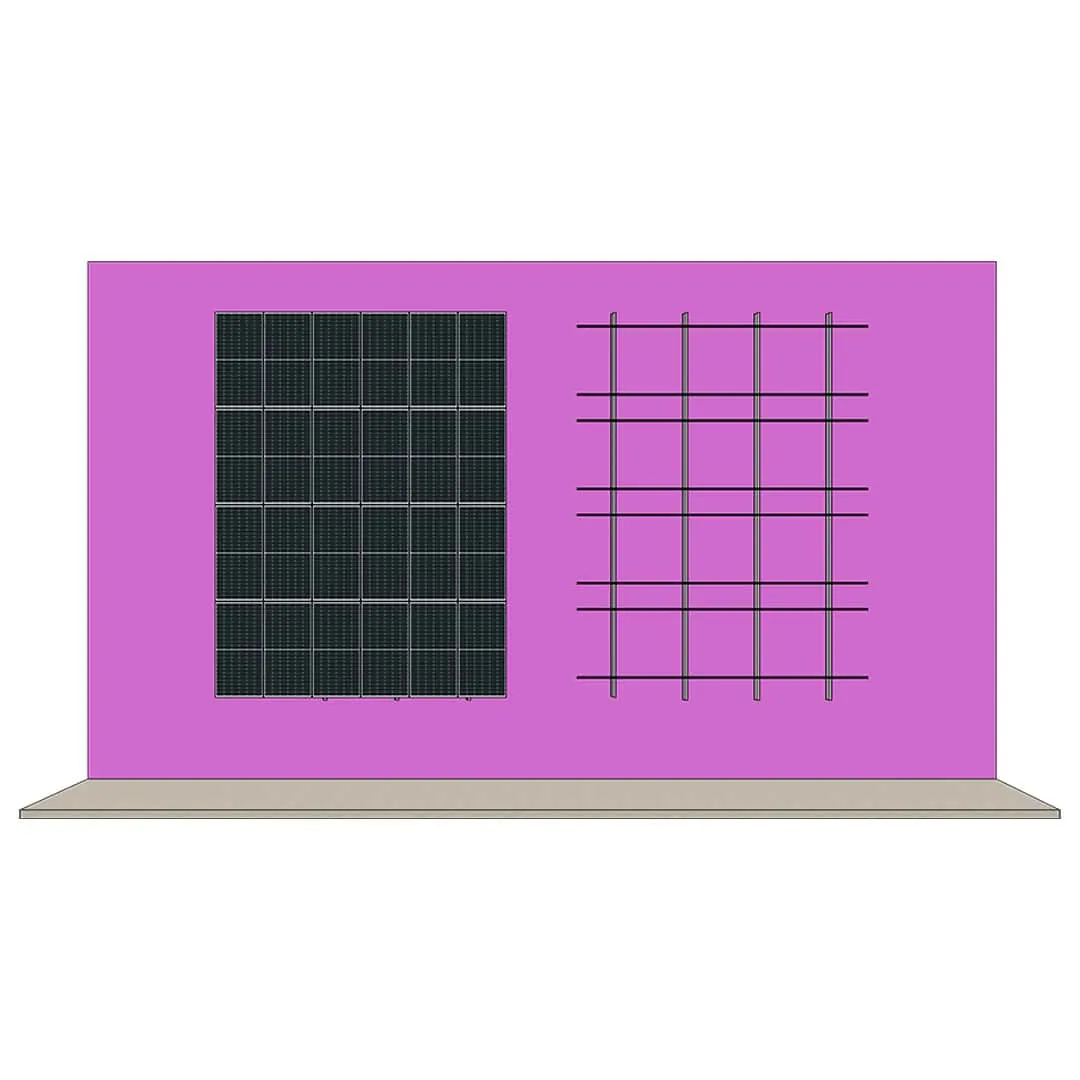

Photovoltaic facade system 1P-6
The Photovoltaic facade system 1P-6 is a compact, high-efficiency solution for integrating solar modules into building exteriors. Optimized for partial wall coverage and modular scalability, it turns façades into productive energy assets without compromising the architectural concept. The hot-dip galvanized steel framework delivers long-term corrosion resistance, structural stability, and consistent performance under wind loads, while the portrait layout supports clean cable routing and straightforward maintenance. Ideal for residential and commercial retrofits or new builds, this system helps projects meet sustainability targets, reduce operational costs, and make intelligent use of vertical surfaces.
Capacity: 1 column of 6 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Photovoltaic facade system 1P-6
The Photovoltaic facade system 1P-6 is a compact solution developed by Pro Solar Tech for projects that require reliable vertical solar integration on a smaller scale. Designed for partial wall coverage, building retrofits, or modular installations, the system makes unused façade areas functional without interfering with architectural design. By converting walls into productive energy generators, it allows developers and building owners to extend solar capacity even when rooftop space is unavailable or already occupied.
The structure is made from hot-dip galvanised steel, ensuring long-term protection against corrosion and mechanical stress. Each system is reinforced with bracing members for stability and equipped with aluminium clamps and class 8.8 bolts for secure module fixation. The portrait orientation supports optimal energy capture, neat cable routing, and straightforward maintenance. With the Photovoltaic facade system 1P-6, projects can align with sustainability objectives, reduce energy costs, and optimise space utilisation in both new builds and retrofitted properties.
Advantages of Photovoltaic facade system 1P-6
- Maximised use of limited wall space: Many buildings do not have the capacity for full-scale solar façades but still benefit from partial vertical integration. The 1P-6 system is optimised for smaller wall sections, making it an excellent choice for retrofits or modular expansions. By installing six panels per column, property owners can increase renewable energy generation while maintaining architectural balance. For developers and EPCs, this flexibility ensures that even fragmented or irregularly shaped surfaces become productive assets. The system allows step-by-step scalability, enabling clients to start with limited capacity and expand over time, providing an accessible entry point into façade-mounted photovoltaics without requiring large upfront investment.
- Strong structural performance and durability: The Photovoltaic facade system 1P-6 is engineered for decades of reliable service. Constructed from galvanised steel, reinforced with purlins and bracing members, and secured by high-strength fasteners, it offers resistance against wind, rain, snow, and daily thermal cycles. These materials and structural reinforcements are chosen to minimise deformation and maintain alignment of the modules over time. In practice, this means reduced maintenance, stable energy yield, and predictable long-term return on investment. The durability of the system is a decisive factor for developers and operators who need assurances that the façade installation will not compromise building safety or performance.
- Seamless integration with building design: Unlike ground-mounted systems, façade installations must align with the appearance and function of the building. The 1P-6 is compact enough to integrate into residential and commercial projects without overwhelming architectural aesthetics. Its portrait orientation ensures visual uniformity, while cable routing is kept discreet, preserving the clean lines of the façade. This makes the system suitable for visible areas where both functionality and appearance are critical. For architects and developers, this advantage means projects can comply with sustainability requirements while respecting design intent, ensuring that energy generation does not clash with the visual identity of the building.
- Ease of installation and straightforward maintenance: One of the priorities for Pro Solar Tech in designing the 1P-6 system was to minimise on-site complexity. The structure is modular and delivered with pre-drilled holes, alignment points, and prefabricated elements that speed up assembly. Installation crews can work faster, reducing labour costs and keeping construction timelines on schedule. Once operational, the system allows easy access for inspection, panel replacement, and cleaning. Cable organisation is clear and efficient, reducing the time required for technical interventions. For EPC contractors and facility managers, this translates into lower operational expenses and greater predictability in long-term project planning.
Compatible photovoltaic panels
The Photovoltaic facade system 1P-6 is compatible with standard large-format photovoltaic modules, optimised for dimensions of 2278 × 1134 × 30 mm. This ensures compatibility with widely available Tier 1 modules, offering developers flexibility in procurement. By supporting a common module size, the system guarantees long-term availability of replacements and access to the latest high-efficiency panel technologies. The result is an adaptable façade solution that maintains compatibility across multiple solar generations.
Capacity
The system supports one vertical column of six photovoltaic panels in portrait orientation. With panel dimensions of 2278 × 1134 × 30 mm, the 1P-6 achieves a compact configuration that balances energy yield with architectural integration. This makes it suitable for smaller wall areas, modular expansions, or phased project rollouts.

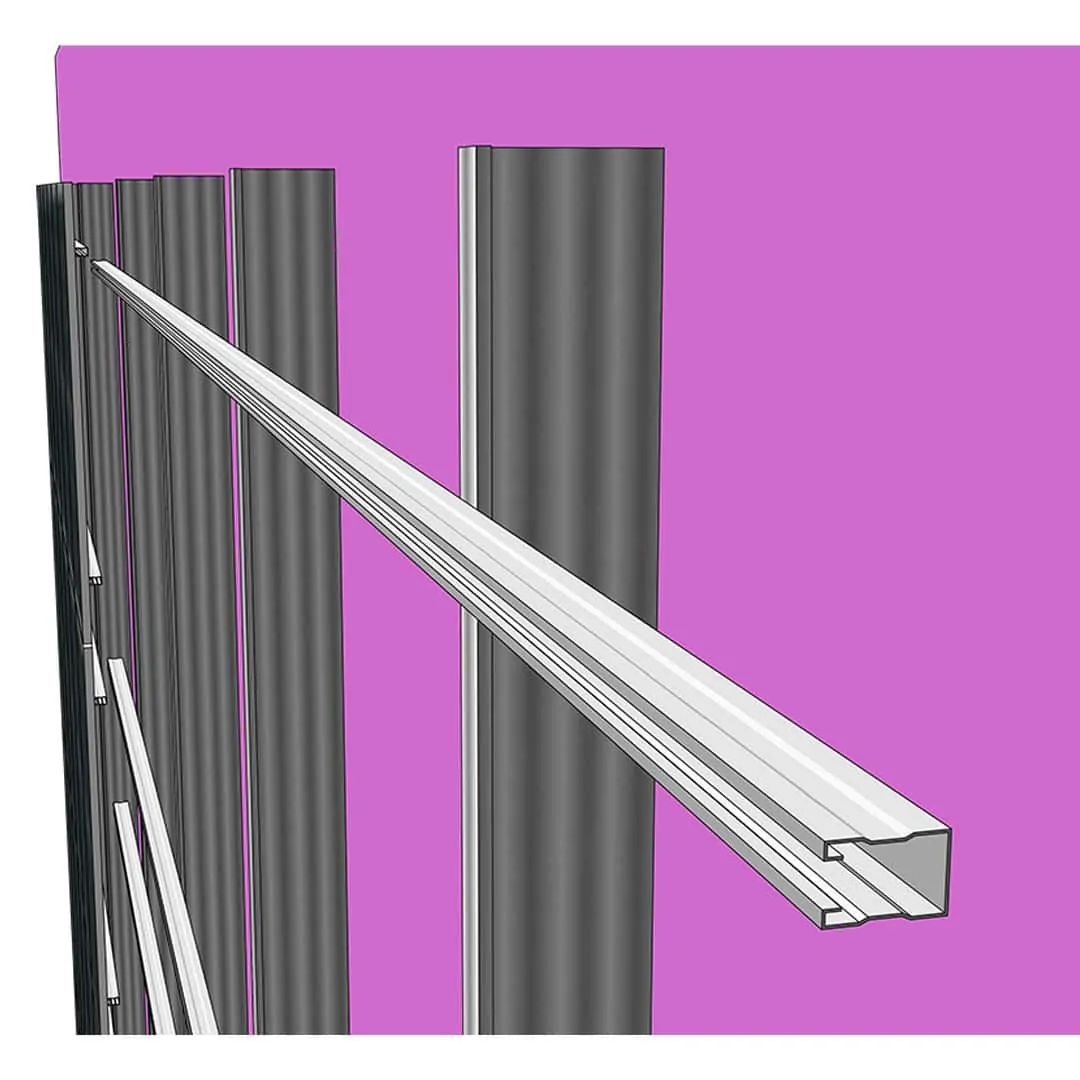

System components
- System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Solar panels |
|---|
