Ground Mount PV Systems 2P-10, Concrete Pier
The Ground Mount PV System 2P-10, built on a concrete pier foundation, is specifically designed for reliable integration in large photovoltaic parks. Its fully galvanized steel frame ensures exceptional durability with corrosion resistance and minimal maintenance, even in demanding climates. Offering tilt angle options of 20°, 23°, 25°, 28°, and 30°, the system allows developers to optimize energy yield according to project requirements and site conditions. The modular design adapts easily to varied terrains, while the clamping system provides accurate alignment and simplifies servicing. With a balanced mix of compact size, load capacity, and structural stability, the 2P-10 represents a cost-effective and safe solution for long-term solar investments.
Capacity: 20 photovoltaic panels (2278 × 1134 × 30 mm)
Foundation system: galvanized steel poles set in isolated concrete pier foundations
Kit includes
- 12 galvanized steel poles (support posts)
- 6 main beams
- 8 transverse purlins
- 4 bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mount PV systems 2P-10, concrete pier

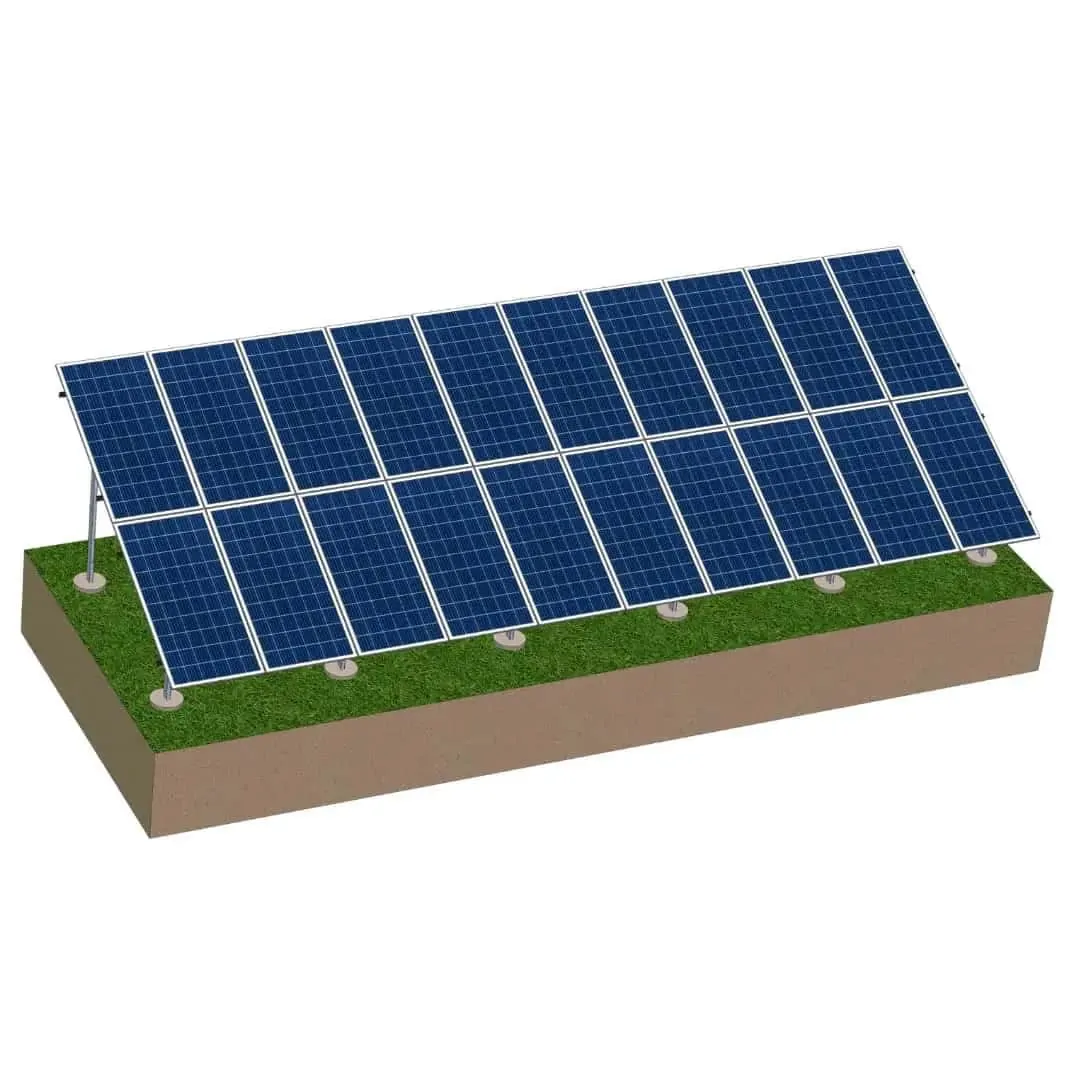

The Ground mount PV systems 2P-10, Concrete Pier is a robust and reliable mounting solution designed specifically for commercial and industrial photovoltaic installations. Built entirely from hot-dip galvanized steel, this structure ensures exceptional corrosion resistance and long-term durability, even in harsh environmental conditions. Each system is engineered with a modular layout that simplifies both installation and maintenance, while its isolated concrete pier foundations guarantee maximum stability across all soil types, including terrains where driven posts are not feasible. The table accommodates two landscape-oriented panels per row, extending over ten rows for a total of 20 modules per structure. With multiple tilt options, developers can optimize energy generation according to site latitude, solar irradiation, and project goals. Pre-drilled and clearly labeled components minimize assembly time, reduce errors, and lower labor costs. Designed for efficiency, adaptability, and structural integrity, the 2P-10 Concrete Pier system provides EPC contractors and investors with a proven solution that balances fast execution with long-term performance security.
Advantages of the Ground mount PV systems 2P-10, Concrete Pier
- Maximizes land utilization: The compact arrangement of the 2P-10 system allows developers to maximize installed capacity per square meter of land while still preserving access for inspections, cleaning, and technical interventions. Rows are organized efficiently, minimizing spacing losses and ensuring optimal south-facing orientation. This design is particularly beneficial for projects developed on irregular or constrained plots, where every square meter counts. By ensuring higher kWh production density, the system delivers stronger financial returns without compromising maintenance accessibility.
- Minimizes long-term maintenance needs: Built from galvanized steel, industrial-grade bolts, and aluminum clamps, the system is engineered to withstand environmental stressors such as humidity, dust, wind, and thermal variations. The corrosion-resistant finish protects every component, extending service life and reducing the frequency of maintenance interventions. With joints designed to preserve preload and resist loosening over time, the system minimizes operational disruptions and ensures predictable long-term performance. This reliability translates into lower O&M costs and reduced lifetime ownership expenses.
- Allows expansion or modification without redesign: Thanks to its modular architecture, the 2P-10 system can be expanded by adding identical sections or adapted for modules of different dimensions with minimal adjustments. This avoids costly redesigns, accelerates engineering approvals, and allows developers to adapt quickly to changing project requirements or evolving technology. For investors planning multi-phase rollouts, this scalability provides both flexibility and cost control, ensuring consistency across the project lifecycle.
- Complies with green energy standards: While the system requires concrete foundations, it is designed to minimize environmental disruption and remain fully reversible at the end of its life cycle. More than 95% of its materials—steel and aluminum—are recyclable, aligning with ESG objectives and supporting compliance with sustainability requirements in public tenders or green financing schemes. By combining durability, recyclability, and reversibility, the 2P-10 ensures that projects meet modern expectations for responsible, low-impact construction.
Capacity
Each Ground mount PV systems 2P-10, Concrete Pier structure is designed to accommodate 20 photovoltaic modules with standard dimensions of 2278 × 1134 × 30 mm, offering an optimized balance between compact design, efficient land use, and reliable system output.
Tilt angles
Standard tilt options include 20°, 23°, 25°, 28°, and 30°. Other tilt configurations can be manufactured on request to match project-specific energy goals and site conditions.
Compatible photovoltaic panels
The 2P-10 system is optimized for modules with dimensions of 2278 × 1134 × 30 mm, one of the most common formats used in today’s solar industry. On request, the structure can be adapted to support modules of alternative dimensions or frame thicknesses, ensuring maximum flexibility for developers sourcing panels from different manufacturers.
System components

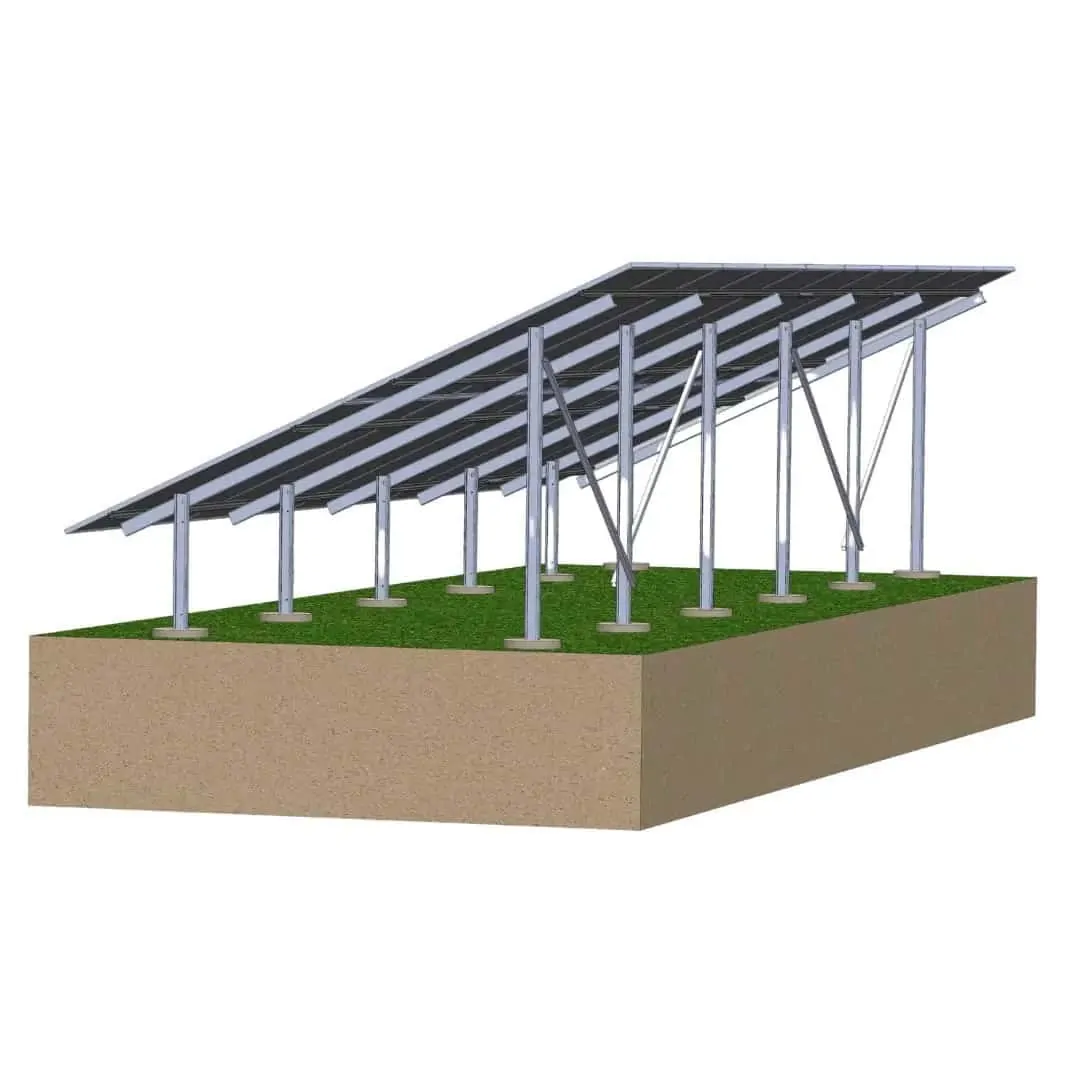

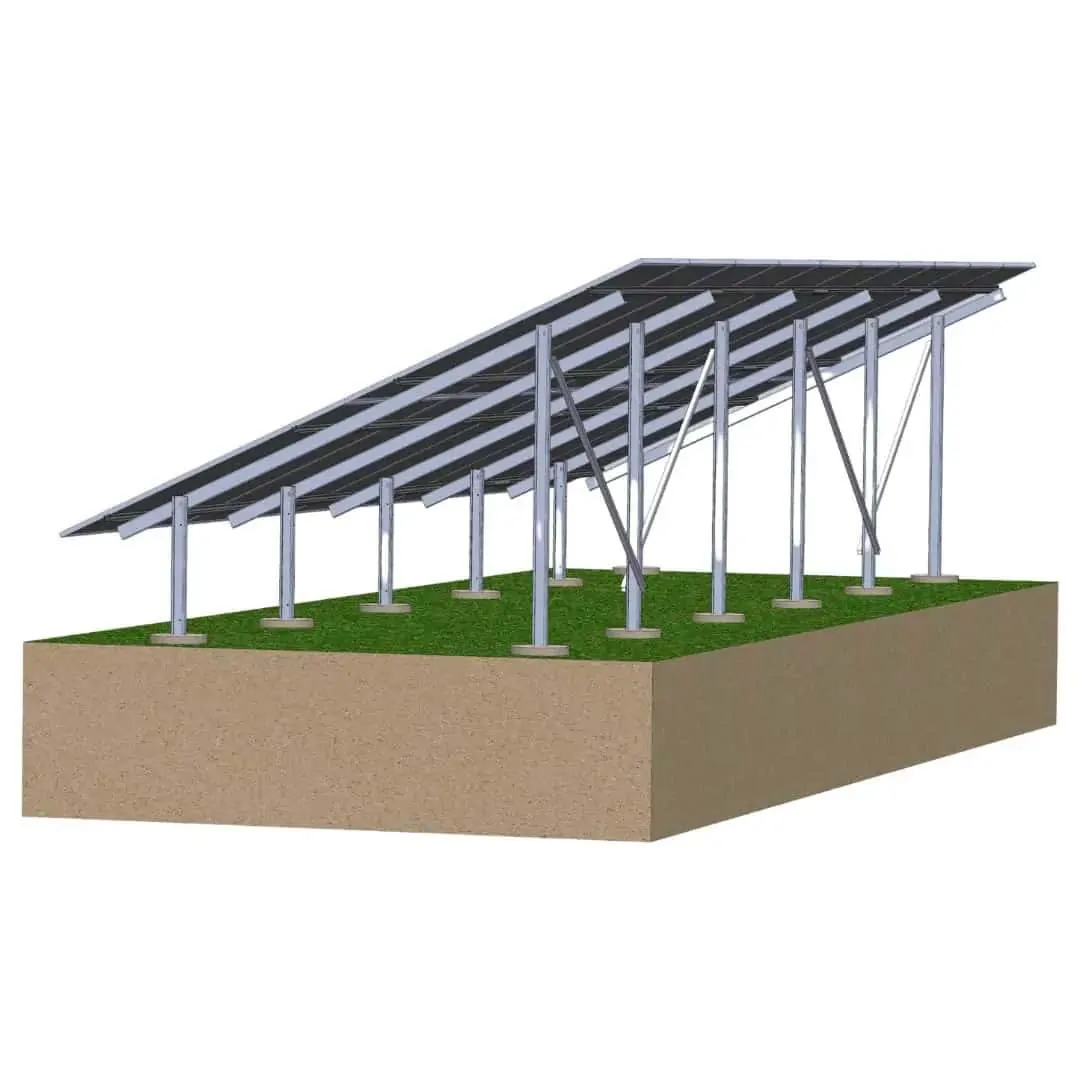

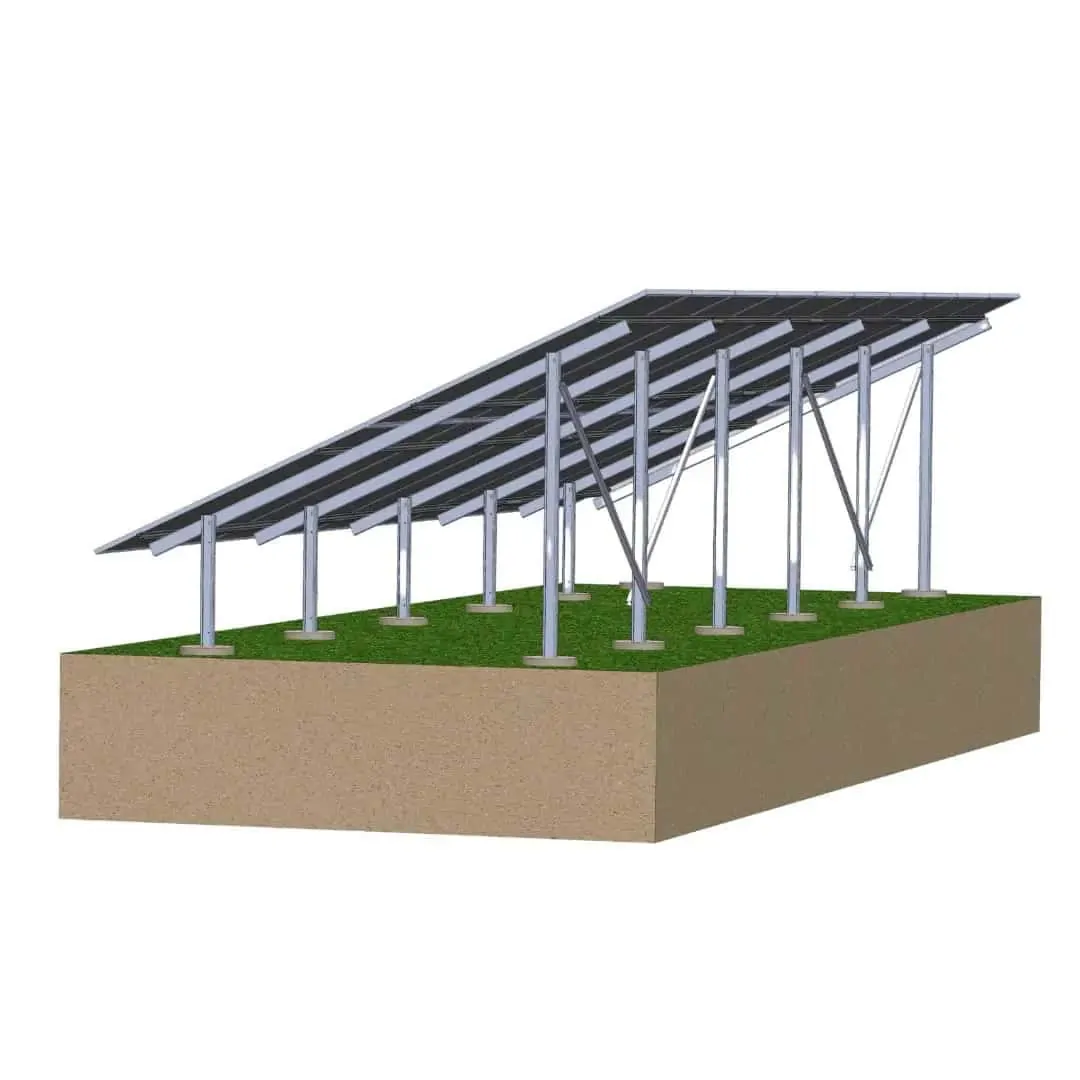

- 12 support poles: Heavy-duty galvanized steel posts anchored into isolated concrete piers at a depth of approximately 1000 mm. These poles form the structural backbone of the system, ensuring stability under heavy wind and snow loads while transferring forces safely into the foundation.
- 6 main beams: Longitudinal beams in galvanized steel that tie the vertical supports together and distribute loads evenly across the array. Pre-drilled with precision, they allow quick alignment during installation and ensure consistent structural performance throughout the system’s service life.
- 8 cross purlins: Transverse members designed to hold and align the modules across the width of the structure. They maintain proper spacing, resist uplift forces, and ensure uniform distribution of mechanical loads across the solar table, keeping modules secure under all operating conditions.
- 4 bracing members: Diagonal reinforcement elements that provide additional rigidity to the structure. By counteracting torsional forces and vibration, they enhance stability and ensure that the array remains straight and properly aligned even under dynamic wind conditions.
- Set of high-strength galvanized bolts (class 8.8): Industrial-grade fasteners designed to secure all joints. With anticorrosion coatings and high tensile strength, they guarantee durable connections that maintain structural integrity and minimize the need for retightening during the system’s lifetime.
- Aluminum clamps: Purpose-built clamps for mid and end positions, designed to hold the modules firmly in place without damaging the frames. Their anodized finish and stainless-steel hardware ensure long-term resistance against corrosion and preserve module warranties.
As direct manufacturers, we supply a wide range of ground-mounted PV systems available from stock for immediate delivery. The 2P-10 Concrete Pier system, with its 20-module capacity and robust concrete-based foundation, provides unmatched reliability, adaptability for all terrains, and compliance with modern sustainability standards—making it the ideal solution for EPC contractors and investors seeking dependable solar infrastructure.
