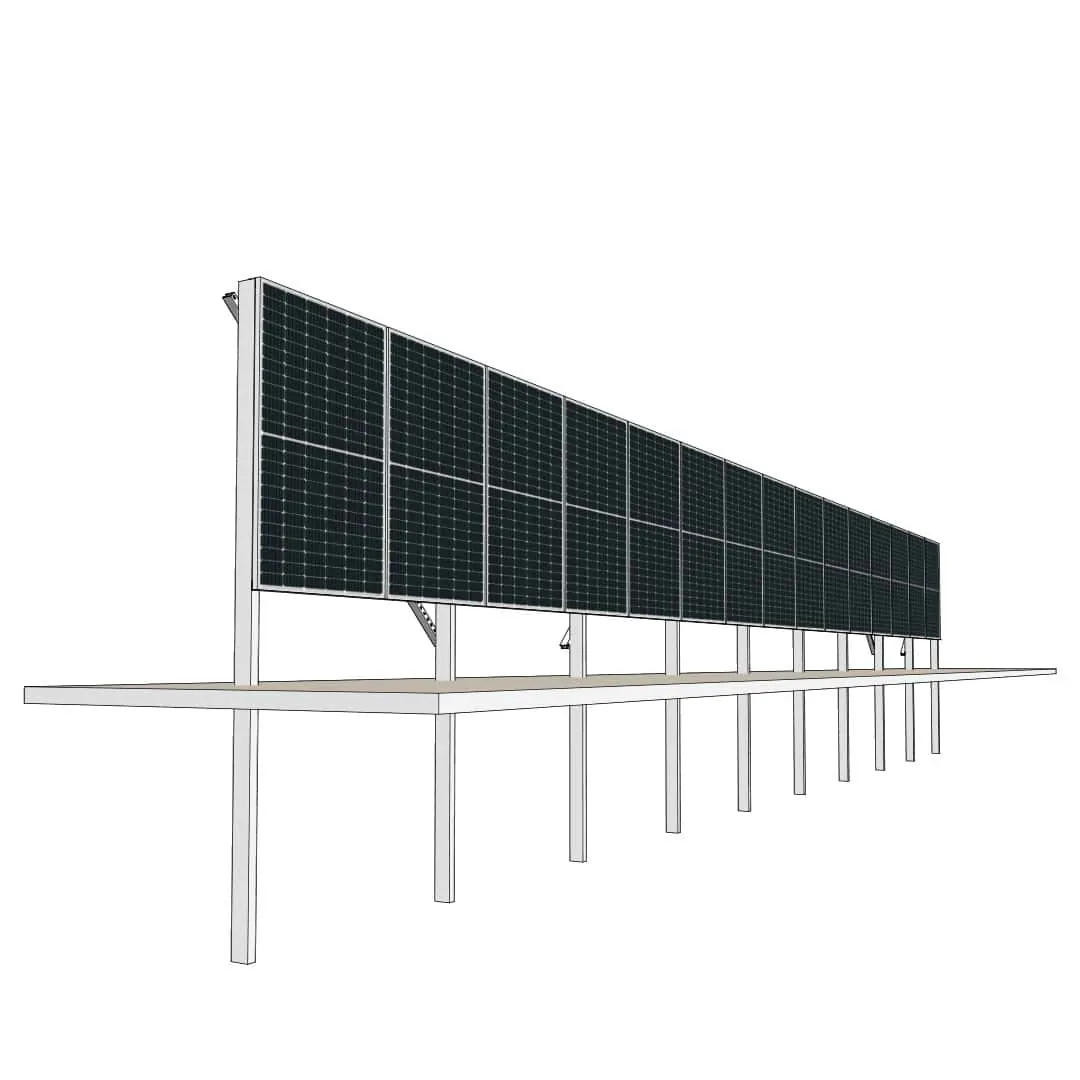

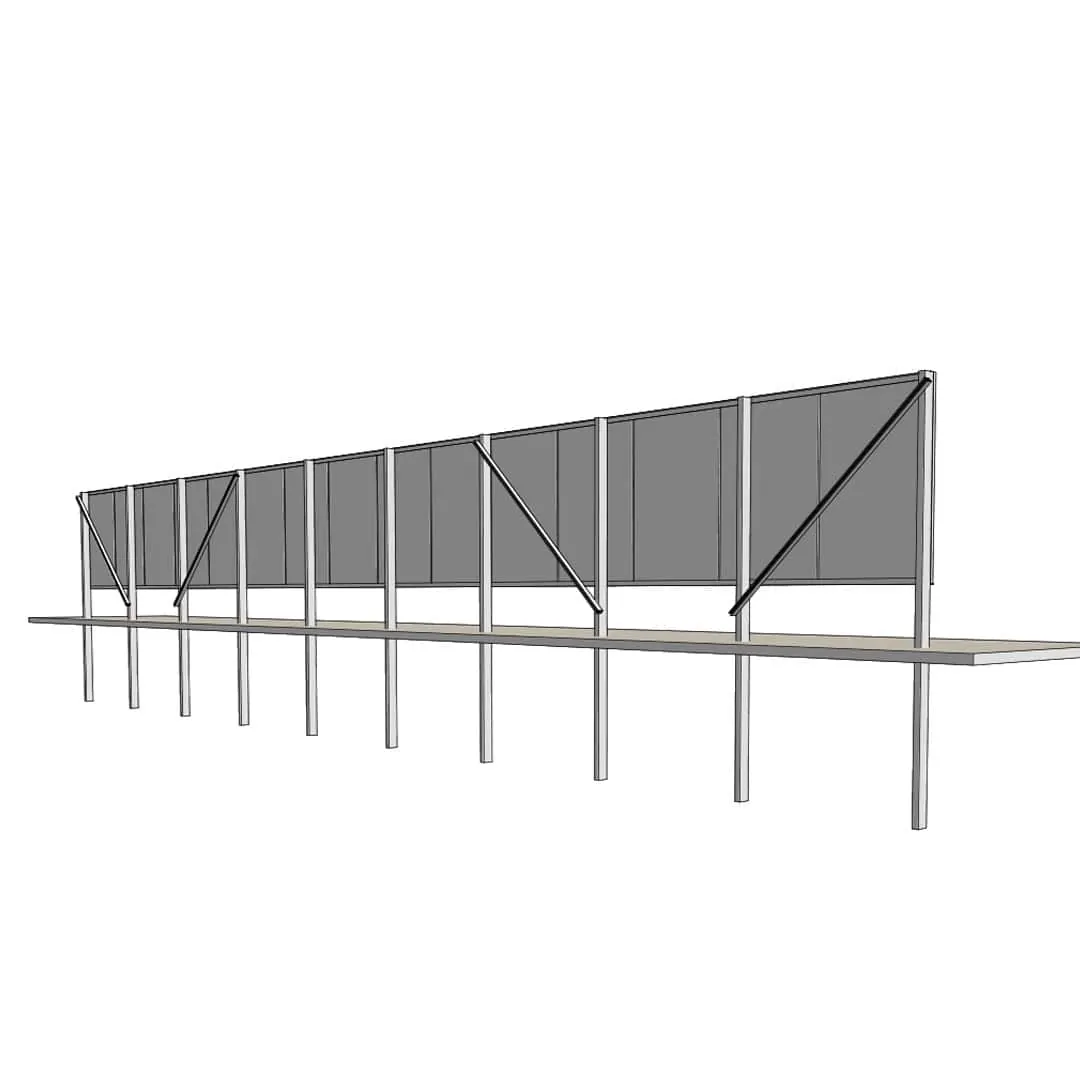

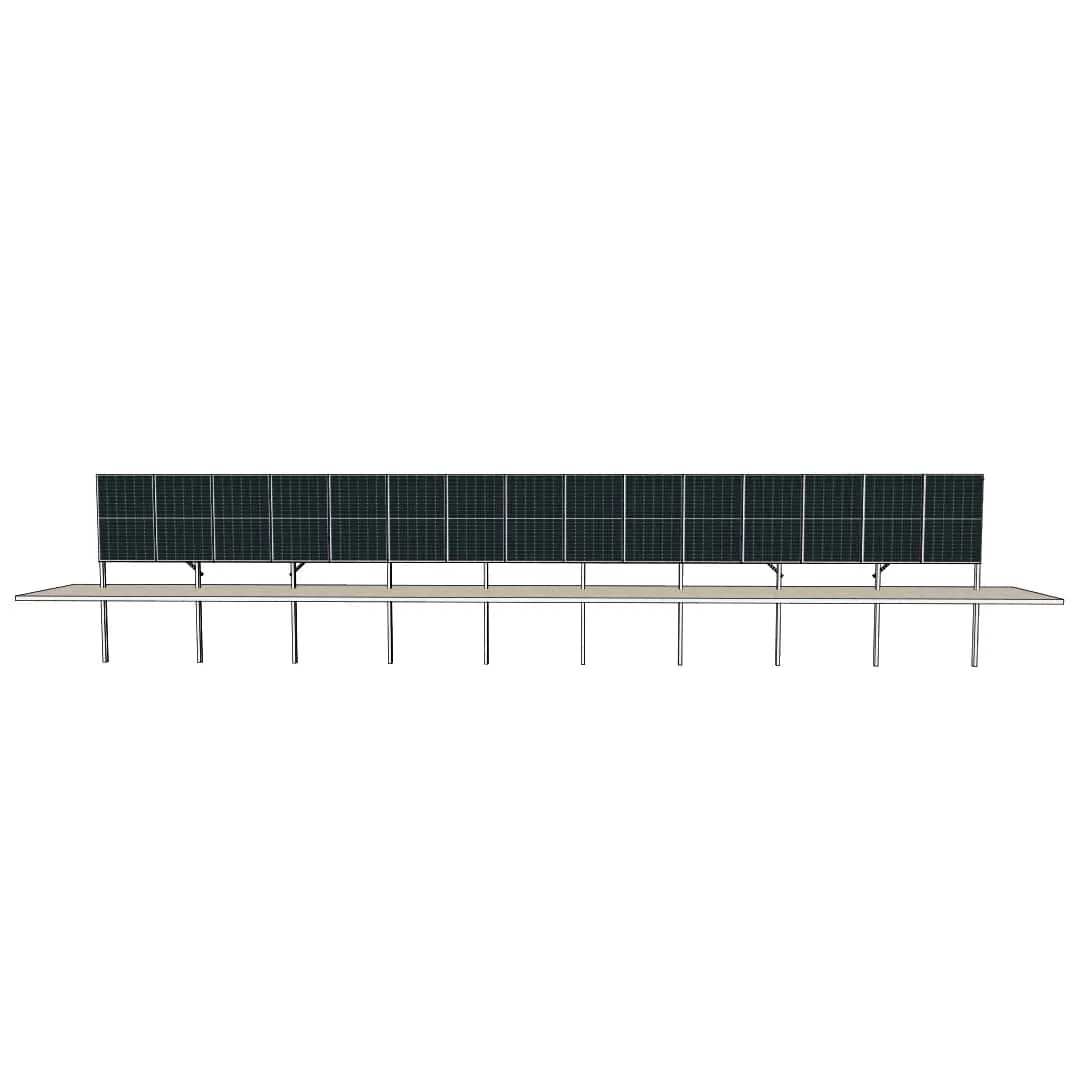

Solar Panel Fence 1P-15
The Solar Panel Fence 1P-15 is a dual-purpose perimeter system that delivers site security and clean energy generation in a single footprint. Engineered with hot-dip galvanized steel for long-term corrosion resistance, it turns boundary lines into productive assets while preserving a sleek architectural profile. The continuous portrait layout supports tidy cable routing, streamlined maintenance, and consistent energy yield. Ideal for industrial facilities, agricultural land, and residential communities, this fence-mounted PV solution optimizes land use, lowers operating costs, and strengthens sustainability performance over the project lifetime.
Capacity: 15 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven pile or concrete base (selected per soil and project requirements)
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Solar Panel Fence 1P-15
The Solar Panel Fence 1P-15 is an innovative dual-purpose system developed by Pro Solar Tech to transform perimeter fencing into a productive source of renewable energy. By combining the essential role of boundary security with the functionality of solar power generation, this solution makes every metre of fencing contribute to a project’s sustainability and efficiency targets. Instead of using land exclusively for protection, the Solar Panel Fence 1P-15 converts boundaries into active energy-producing infrastructure.
The structure is engineered from hot-dip galvanised steel, ensuring strong resistance to corrosion, high mechanical stability, and long service life. With a portrait arrangement of fifteen panels per section, the fence achieves a consistent and symmetrical layout that simplifies cable management and enables straightforward servicing. Maintenance tasks such as inspections, module cleaning, or replacements are efficient and cost-effective.
This system is particularly suitable for industrial sites that need both secure perimeters and reduced energy costs, agricultural properties that require fencing and energy generation in the same footprint, and residential communities where visual appearance, safety, and sustainability all need to be balanced. By integrating renewable energy into an existing function, the Solar Panel Fence 1P-15 delivers added value, maximises land use, and offers predictable returns across the lifecycle of the project.
Advantages of Solar Panel Fence 1P-15
- Dual-functionality for security and energy production: Conventional fencing provides safety but does not contribute to operational efficiency. The Solar Panel Fence 1P-15 delivers both protection and renewable energy generation, eliminating the need for separate installations. This dual functionality maximises land value, reduces redundancy in infrastructure, and creates an additional revenue stream from areas that would otherwise remain passive. For investors and developers, this translates into higher returns and more efficient use of available space.
- Durability and long-term performance: Manufactured from hot-dip galvanised steel, secured with class 8.8 bolts, and reinforced with aluminium clamps, the system ensures excellent resistance to corrosion, wind, and other environmental factors. Its structural design guarantees stability and alignment over time, even under challenging site conditions. With minimal degradation and very low maintenance requirements, the Solar Panel Fence 1P-15 delivers reliable energy yield throughout its service life. This long-term performance makes it an economically attractive solution for projects requiring both safety and durability.
- Optimised design for efficient operation: The portrait layout of the panels provides a clean and continuous appearance while improving cable organisation and maintenance efficiency. The system allows technicians to access connections quickly, replace individual modules without dismantling large sections, and perform regular inspections with minimal disruption. This operational efficiency reduces downtime, lowers maintenance costs, and ensures consistent energy production. For EPC contractors and operators, the streamlined design makes both installation and servicing predictable and cost-effective.
- Flexible application across different sectors: The Solar Panel Fence 1P-15 is adaptable to a wide range of project types. Industrial facilities benefit from reduced energy costs while maintaining secure perimeters. Farms and agricultural installations gain additional revenue without sacrificing productive land. Residential communities can implement the system to enhance sustainability while preserving a modern architectural profile. The system’s flexibility ensures it can be integrated across multiple environments, providing consistent advantages regardless of project scale or sector.
Compatible photovoltaic panels
The Solar Panel Fence 1P-15 is designed for standard large-format photovoltaic modules with dimensions of 2278 × 1134 × 30 mm, which are widely available from Tier 1 manufacturers. This ensures strong compatibility, stable fixation, and long-term availability of replacement modules. Supporting common panel sizes also provides procurement flexibility and access to high-efficiency technologies from multiple suppliers. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
15 panels/structure
Each section of the Solar Panel Fence 1P-15 supports fifteen photovoltaic modules in portrait orientation. With panel dimensions of 2278 × 1134 × 30 mm, the configuration ensures substantial energy generation per section while maintaining the protective function of a fence. This makes it suitable for large-scale perimeter projects where both energy yield and boundary security are critical.
Foundation system
Driven pile or concrete base (selected per soil and project requirements) – both options provide reliable anchoring, long-term durability, and flexibility for installation across diverse site conditions.
System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Poles | |
|---|---|
| Foundation system | |
| Solar panels |
