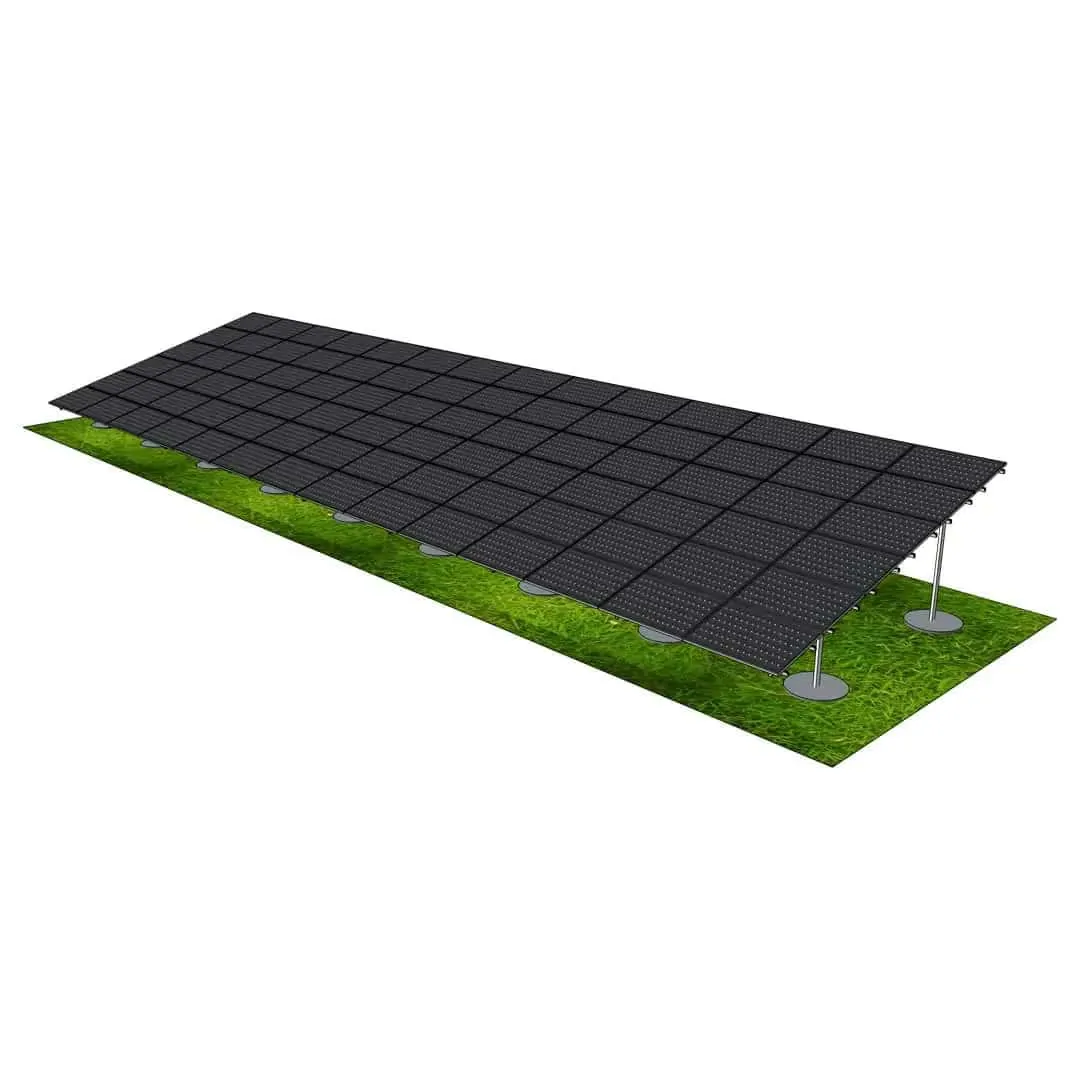

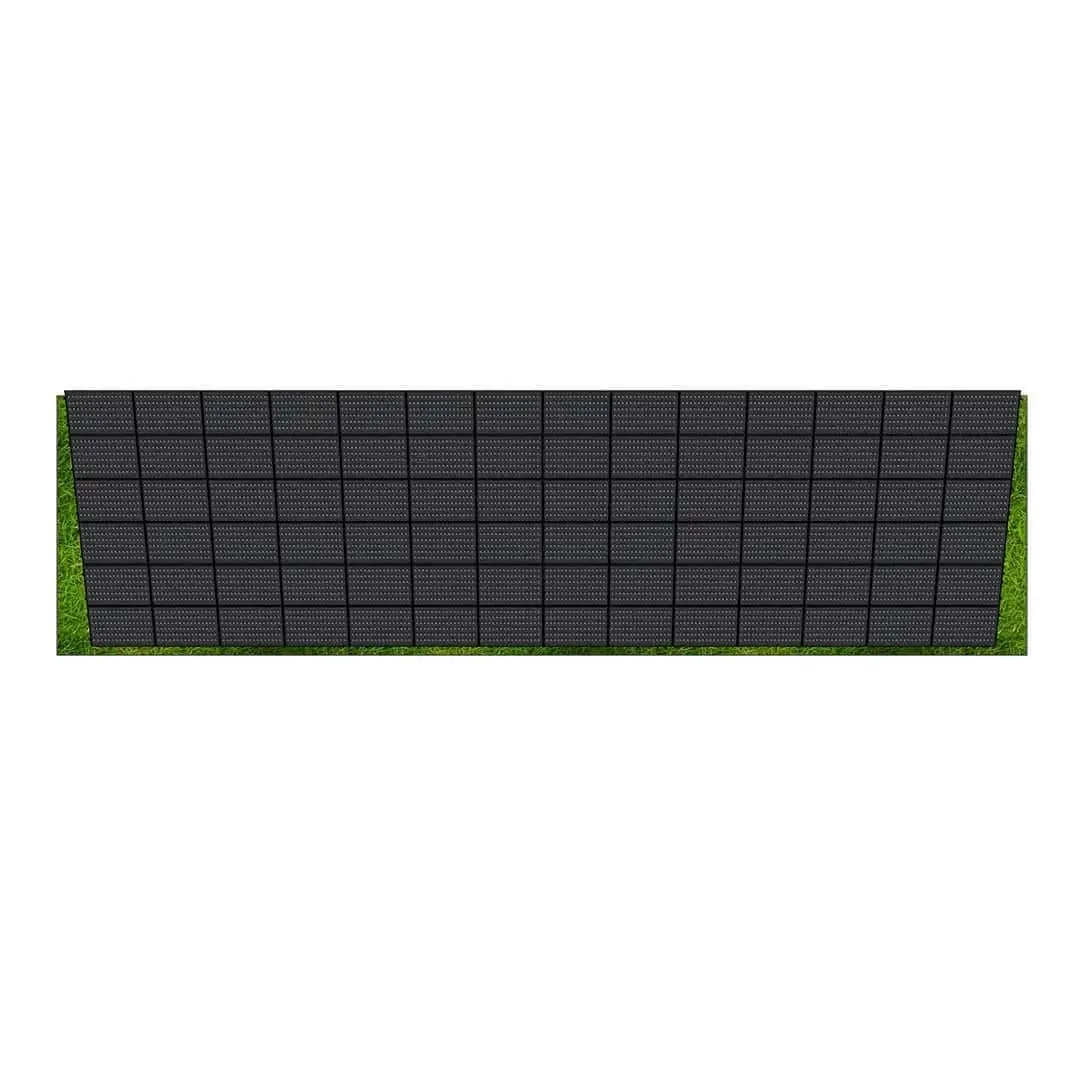

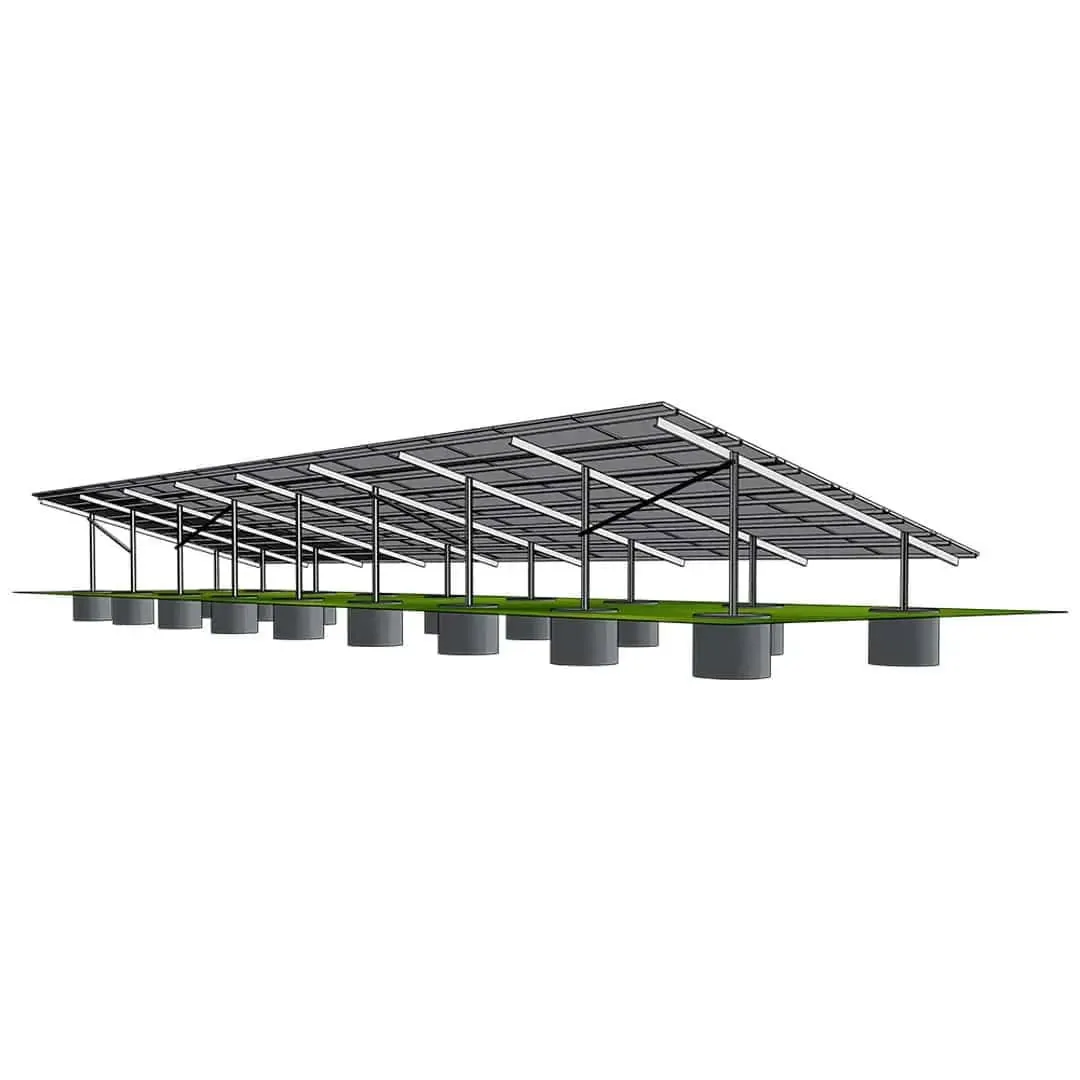

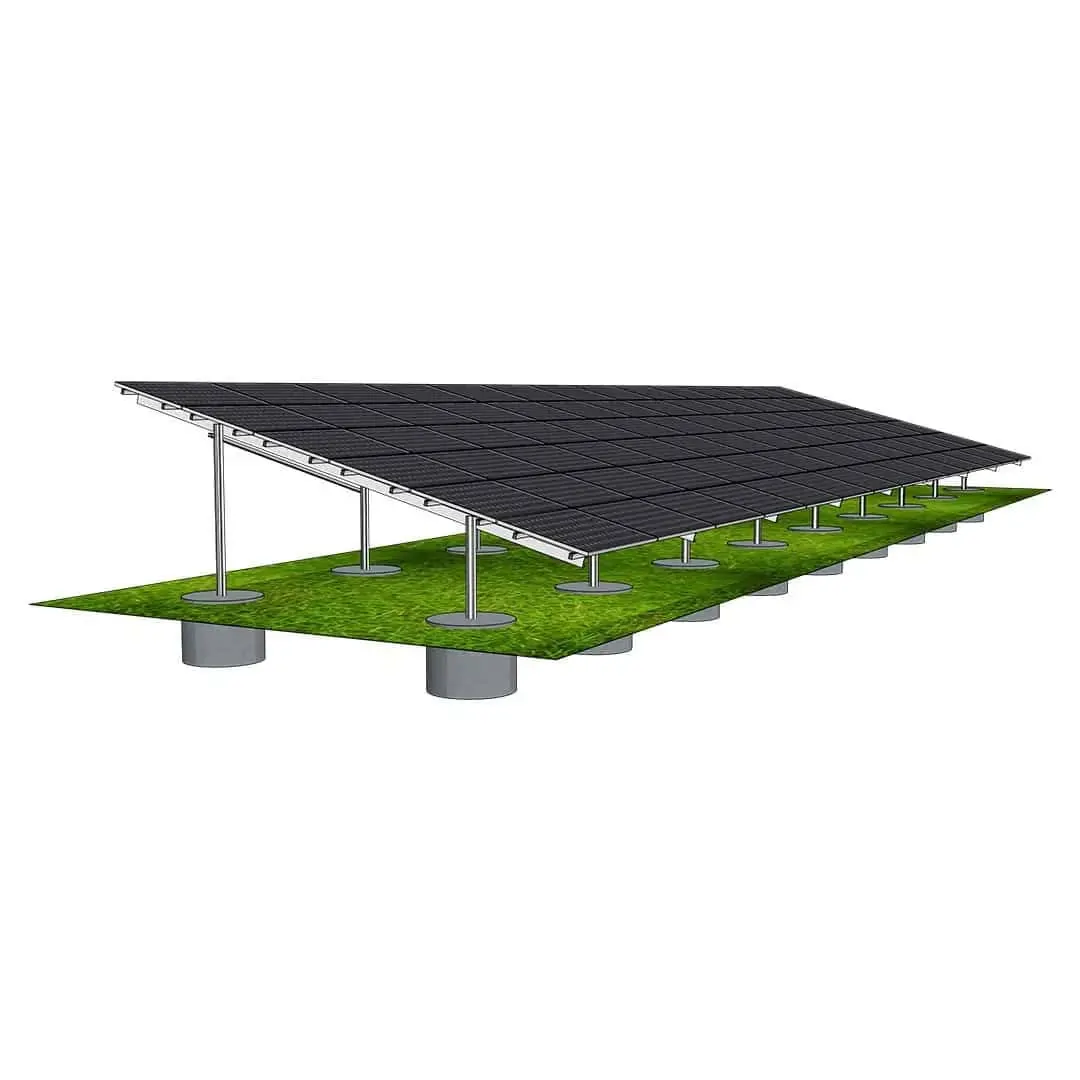

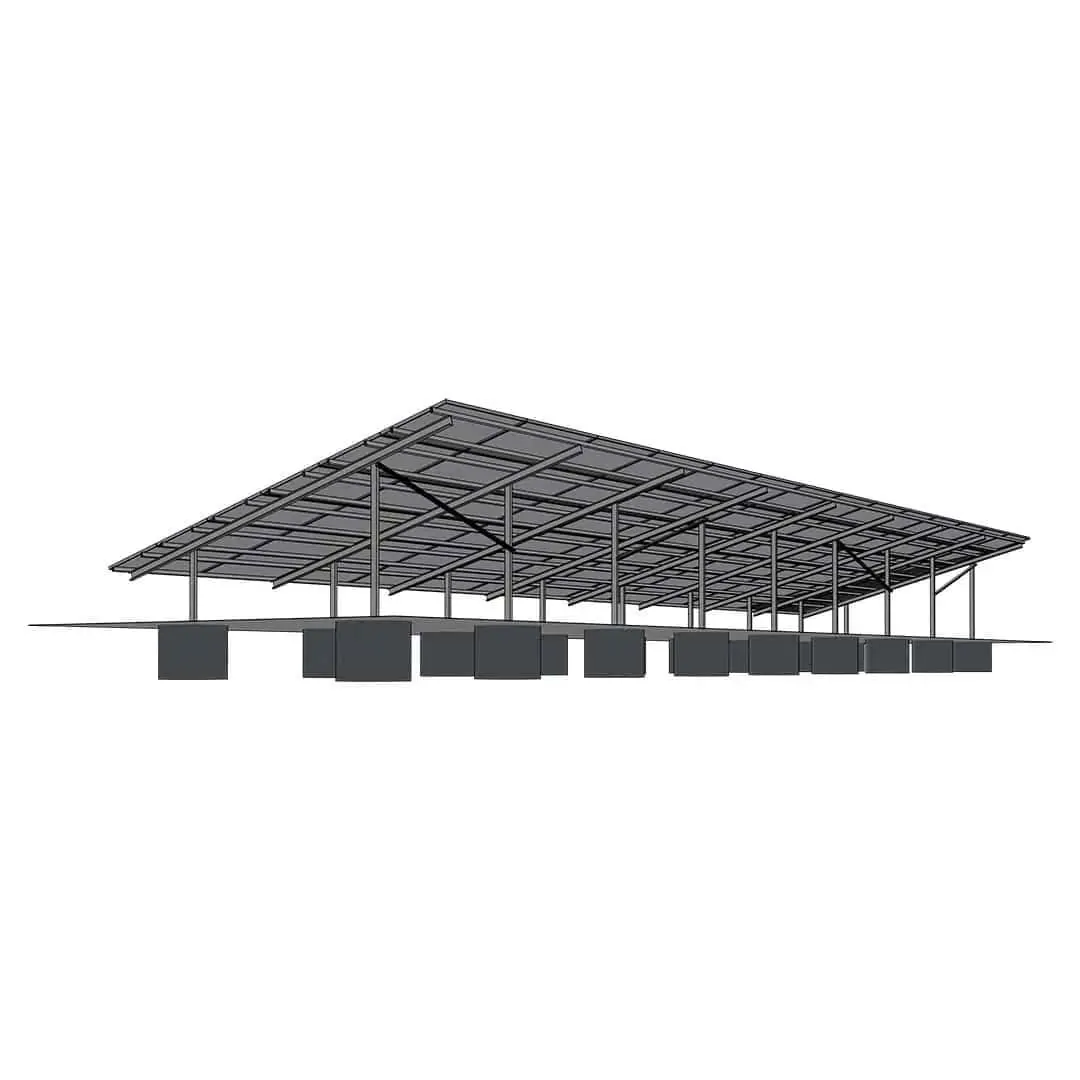

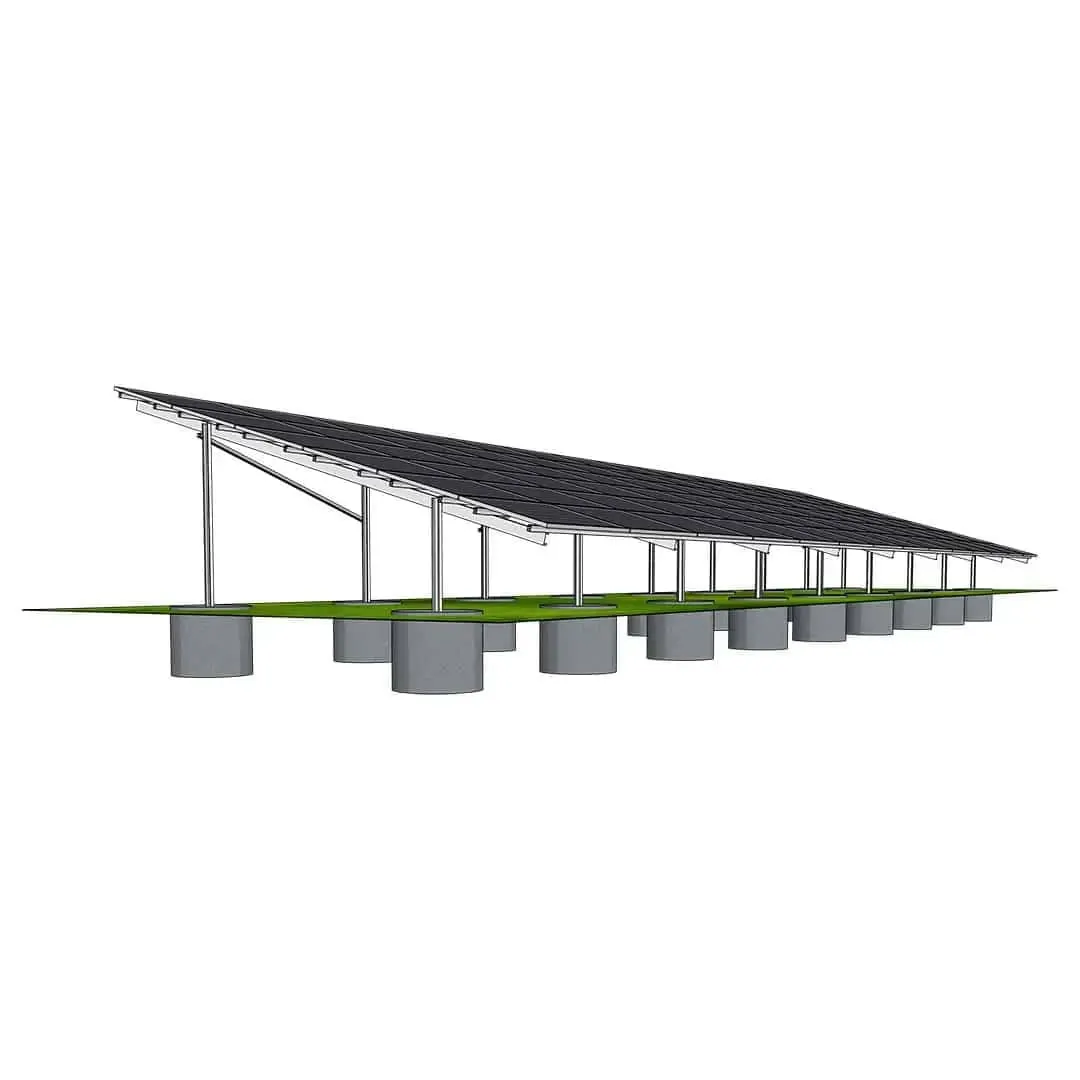

Ground Mounted Solar Systems 6L-14, Concrete Pier
The Ground Mounted Solar System 6L-14, featuring a concrete pier foundation, is engineered for large-scale photovoltaic installations, offering a refined balance between structural resilience and fast, efficient assembly. Its fully galvanized steel frame delivers excellent corrosion protection and minimal maintenance even in harsh environments. The modular design adapts effortlessly to varied terrain contours and diverse project demands. An intuitive clamping system ensures accurate panel alignment and eases future maintenance. With multiple tilt angle options and a robust panel capacity, the 6L-14 system is the ideal choice for developers aiming to optimize ROI without compromising on quality or operational safety.
Capacity: 84 photovoltaic panels (2278 × 1134 × 30 mm)
Foundation system: galvanized steel poles set in concrete piers
Kit includes
- 18 galvanized steel poles (support posts)
- 9 main beams
- 60 transverse purlins
- 4 bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted solar systems 6L-14, Concrete pier
The Ground mounted solar systems 6L-14, Concrete pier is a professional-grade mounting solution specifically designed for large-scale solar parks and commercial installations. Built from hot-dip galvanized steel and engineered for strength, durability, and fast assembly, this structure provides the reliability developers demand when building high-performance photovoltaic fields. Its configuration accommodates 84 solar modules in a landscape orientation, allowing for maximum land utilization without compromising accessibility for service. The robust concrete pier foundation ensures exceptional stability under wind and snow loads, while the modular design allows for easy adjustments to terrain variations. With pre-drilled and labeled components, installation is straightforward and efficient, reducing labor costs and minimizing time on site. The 6L-14 system is the ideal choice for developers seeking a balance of long-term durability, optimized energy yield, and low maintenance requirements—all delivered in a ready-to-install package.
Advantages Ground mounted solar systems 6L-14, Concrete pier
- Maximizes land utilization: The compact design and optimized row arrangement make it possible to fully exploit the available surface, reducing spacing losses while maintaining excellent southern orientation. This ensures higher energy density per square meter of land, which translates into better ROI for investors. At the same time, the structure is engineered to maintain convenient access lanes for service, cleaning, and inspection. The adaptability of the frame allows it to fit both expansive solar fields and irregularly shaped plots, ensuring optimal performance even in challenging layouts.
- Minimizes long-term maintenance needs: All components of the Ground mounted solar systems 6L-14, Concrete pier are corrosion-resistant, including galvanized steel beams, high-strength zinc-coated bolts, and durable aluminum clamps. These materials are selected to withstand harsh environmental conditions such as dust, humidity, wind, and temperature fluctuations. This robust construction reduces the need for regular tightening, replacement, or repainting, ensuring the system performs consistently for decades. The minimized maintenance overhead significantly reduces operational costs, which is particularly valuable in large-scale solar farms.
- Allows for expansion or modification without redesign: Thanks to its modular architecture, the system can be extended with identical sections at any time, enabling future expansion without redesigning the base structure. If project requirements change, or if different solar module dimensions need to be integrated, only minimal adjustments to the clamping system are required. This feature provides investors with unparalleled flexibility to adapt installations to evolving energy strategies, technology upgrades, or scaling requirements—saving both time and design costs in the long run.
- Complies with modern green energy standards: The Ground mounted solar systems 6L-14, Concrete pier minimizes environmental impact by relying on a foundation system that uses concrete piers instead of massive slabs. The structure is entirely reversible, meaning land can be restored to its original state after decommissioning. Additionally, the primary materials—steel and aluminum—are over 95% recyclable, supporting circular economy goals. This makes the system not only environmentally responsible but also eligible for financing programs and tenders that prioritize ESG compliance and sustainable construction practices.
Capacity
Each structure accommodates 84 photovoltaic panels with standard dimensions of 2278 × 1134 × 30 mm, providing a complete row configuration that optimizes both land use and energy production.
Tilt angles
The system is available with tilt angles of 8°, 10°, 12°, and 15°, depending on location, seasonal optimization, and desired energy yield. In addition, we can produce custom configurations at other tilt angles upon request, providing full flexibility for specific project requirements.
Compatible photovoltaic panels
The Ground mounted solar systems 6L-14, Concrete pier is optimized for modules with standard dimensions of 2278 × 1134 × 30 mm. This size represents one of the most widely used formats in the industry, ensuring full compatibility with Tier 1 manufacturers. However, our engineering team can also adapt the structure to accommodate solar panels of different dimensions or thicknesses, offering complete flexibility for developers who operate with mixed technologies or non-standard module sizes.
System components
- 18 support poles: Heavy-duty galvanized steel poles designed to be anchored 1000 mm deep into concrete piers. They provide the structural backbone of the system, ensuring long-term stability against wind pressure and snow loads, even in challenging environments.
- 9 main beams: These longitudinal beams connect the supporting poles and distribute loads evenly across the entire structure. They are hot-dip galvanized for maximum resistance against corrosion and guarantee the durability of the installation over its lifetime.
- 60 cross purlins: Purlins are used to create a stable grid that holds the solar modules in place. Their precise alignment ensures consistent spacing, proper module orientation, and optimal weight distribution, which enhances the system’s energy capture.
- 4 bracing members: Bracing components are critical for structural rigidity, preventing torsion and vibration caused by wind forces. They ensure that the system maintains stability and alignment across its entire length, even under heavy loads.
- Set of high-strength galvanized bolts (class 8.8): These bolts secure all steel elements together, providing maximum connection strength and long-term durability. The zinc coating prevents corrosion and guarantees that the fastening system remains reliable throughout the operational lifespan.
- Aluminum clamps for panel fixation: Designed for compatibility with the specified module dimensions, these clamps firmly secure the panels without damaging their frames. The use of aluminum ensures lightweight handling combined with high corrosion resistance.
As direct manufacturers, we offer a wide range of ground mounting structures available in stock. The Ground mounted solar systems 6L-14, Concrete pier is ready for immediate delivery from our warehouse, ensuring your projects can be executed without delays. With scalable, durable, and ESG-compliant solutions, we provide the reliability developers and EPCs need to complete solar installations on time and within budget.
