Photovoltaic facade system 1P-12
The Photovoltaic facade system 1P-12 is an advanced mounting solution designed for vertical integration of solar panels into building exteriors. By combining aesthetics with renewable energy generation, this system transforms facades into efficient power sources without compromising architectural style. Its robust galvanized steel structure ensures long-term durability and weather resistance, while the portrait layout supports consistent performance and clean cable routing. Ideal for commercial, residential, and institutional buildings, the 1P-12 helps projects meet sustainability targets, reduce operational costs, and utilize previously unused wall surfaces, all while maintaining a modern, refined appearance and enabling straightforward installation and maintenance.
Capacity: 1 column of 12 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Photovoltaic facade system 1P-12
The Photovoltaic facade system 1P-12 is a dedicated mounting solution designed for vertical solar installations. At Pro Solar Tech, we specialise in developing structures that address real challenges faced by EPC contractors, developers, and investors in the photovoltaic sector. This system allows unused building façades to be turned into productive energy surfaces. In urban projects where roof space is insufficient or where maximum capacity is required, façade integration offers an effective way to extend generation potential without acquiring extra land.

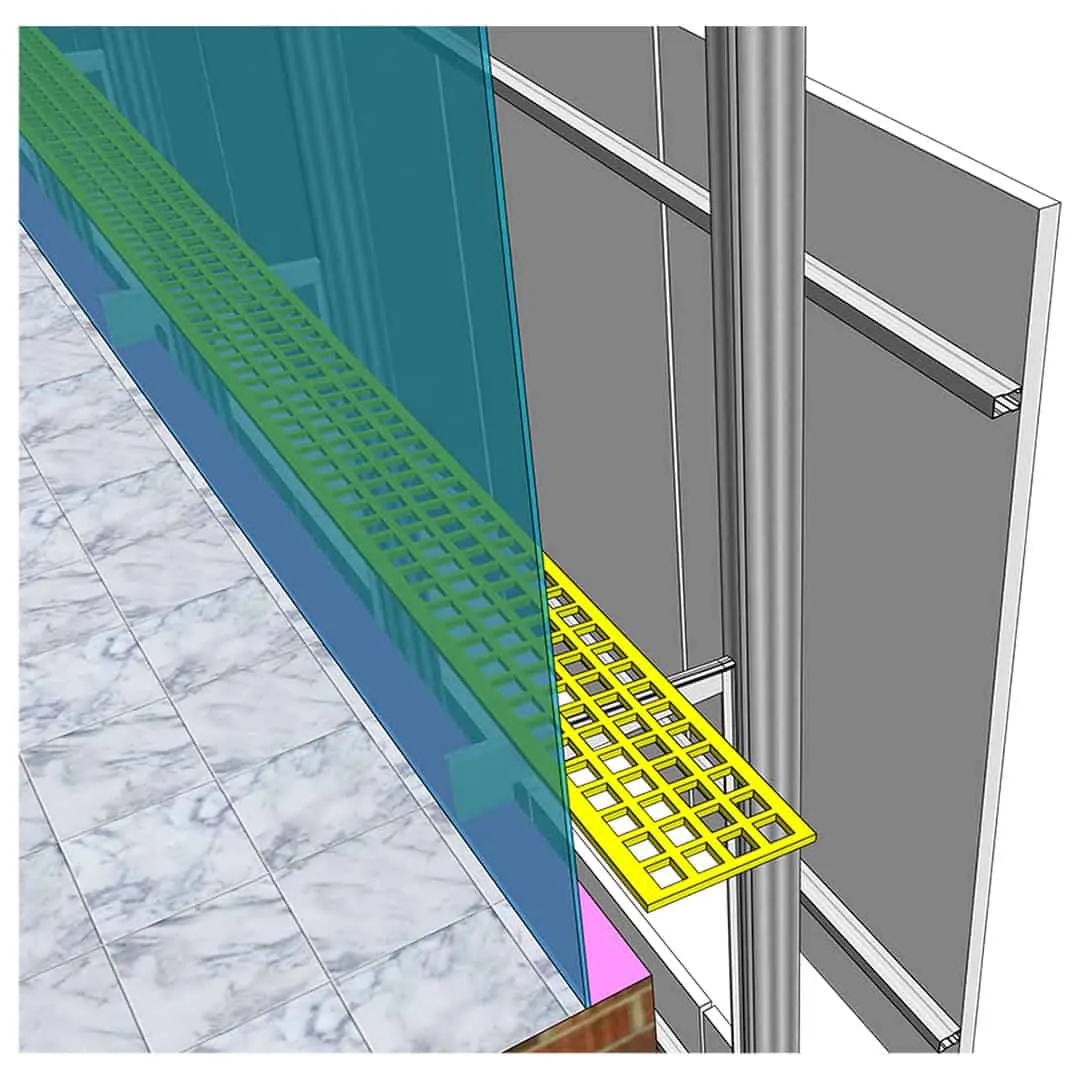

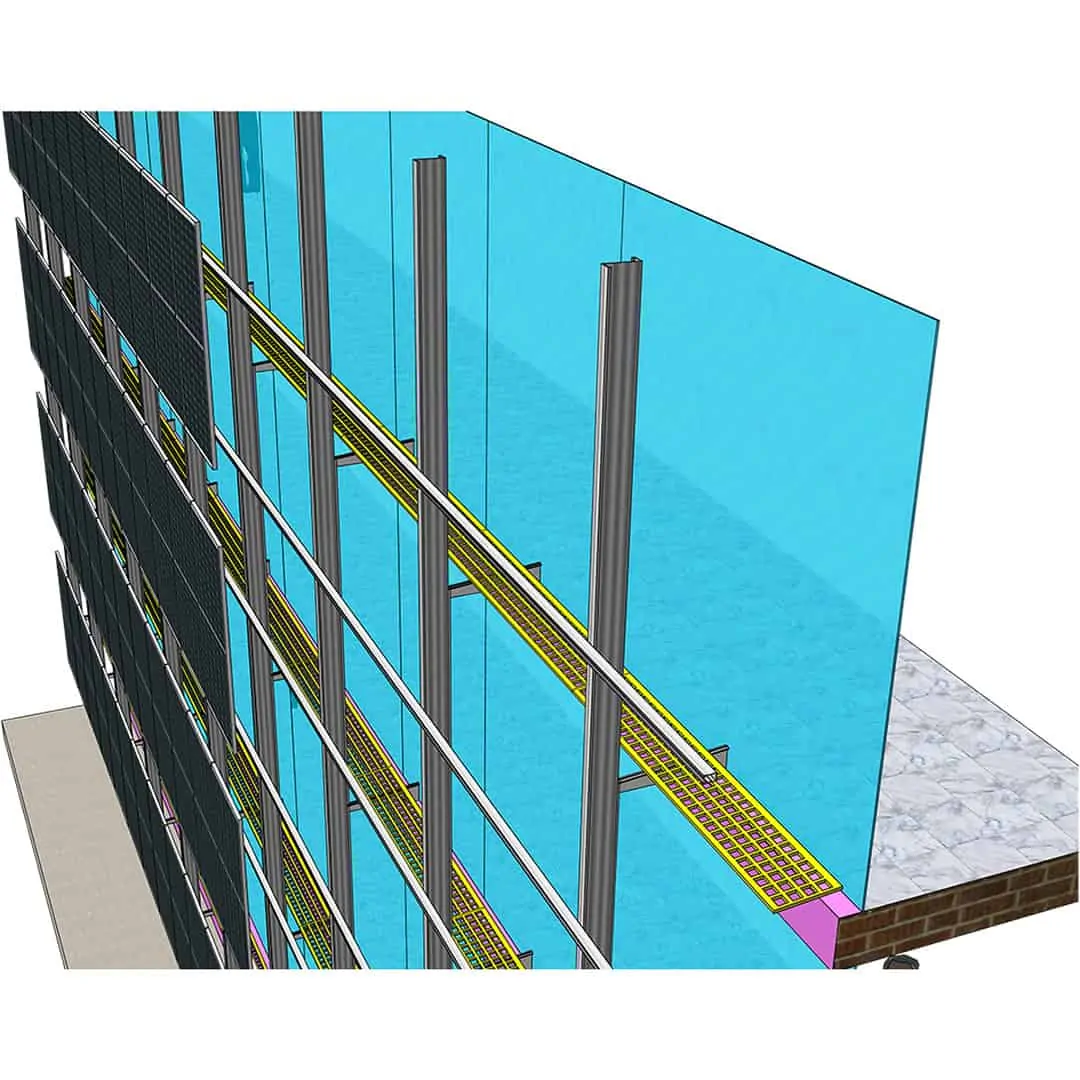

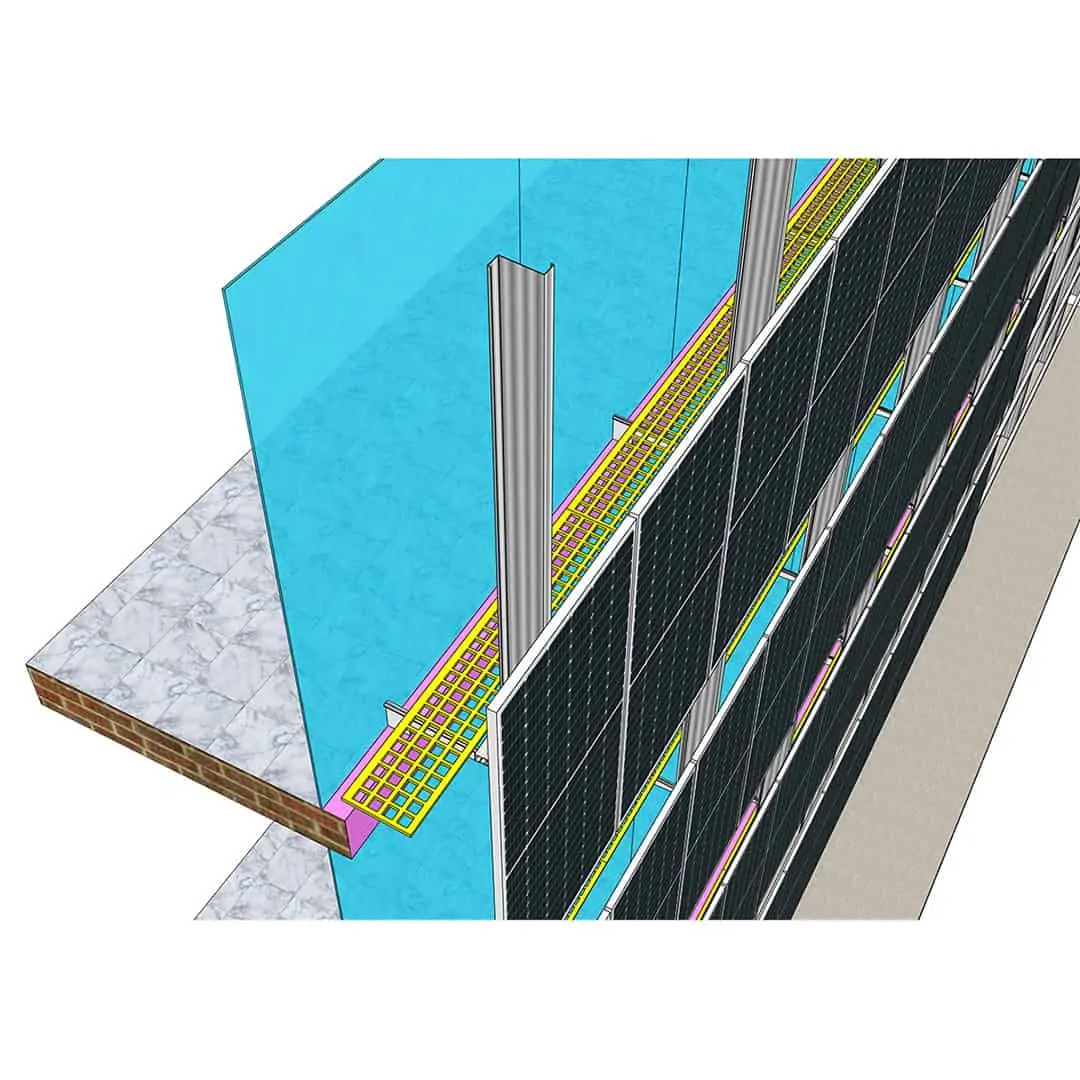

The 1P-12 system is engineered from hot-dip galvanised steel, supported by transverse purlins and reinforced bracing members. Every component is designed for long-term stability, corrosion resistance, and reliable load transfer into the main structure of the building. The assembly process has been simplified for on-site teams, reducing installation time and avoiding unnecessary complexity. Cables can be routed efficiently along the portrait modules, which results in a clean layout and easier access during operation and maintenance.
This type of solution is increasingly relevant for commercial and institutional buildings aiming to achieve energy independence and comply with stricter sustainability targets. Instead of viewing façades as passive architectural surfaces, our system transforms them into active energy-producing assets. The Photovoltaic facade system 1P-12 is a practical, durable, and cost-effective choice for companies looking to expand solar deployment while maintaining control over installation costs and long-term reliability.
Advantages of Photovoltaic facade system 1P-12
- Optimised use of vertical surfaces: Many projects face restrictions in available roof or ground area. The Photovoltaic facade system 1P-12 enables developers to install modules directly on exterior walls, unlocking new capacity. This approach improves the overall energy output of a site and makes it possible to meet production targets without additional land acquisition. It is a direct and measurable way to increase yield per project.
- High structural strength and durability: The 1P-12 system is manufactured from galvanised steel with high-strength bolts and aluminium clamps. These materials guarantee resistance against wind loads, snow, and temperature fluctuations. Once installed, the structure maintains stability for decades with minimal degradation. This ensures a secure long-term investment and predictable performance for operators.
- Clean design and straightforward servicing: The portrait configuration delivers a consistent and well-aligned panel layout that suits different architectural contexts. Beyond appearance, this alignment simplifies cable routing and inspection. Maintenance teams benefit from fast access to connections, and panel replacement can be carried out without dismantling large sections of the structure. This reduces downtime and operating costs.
- Reduced installation time and labour cost: The Photovoltaic facade system 1P-12 is designed for fast assembly with prefabricated elements that fit together securely on site. Clear connection points, pre-drilled holes, and a logical sequence of installation allow crews to complete mounting tasks efficiently. Lower labour requirements directly reduce project costs and make scheduling more predictable for EPC contractors.
Capacity

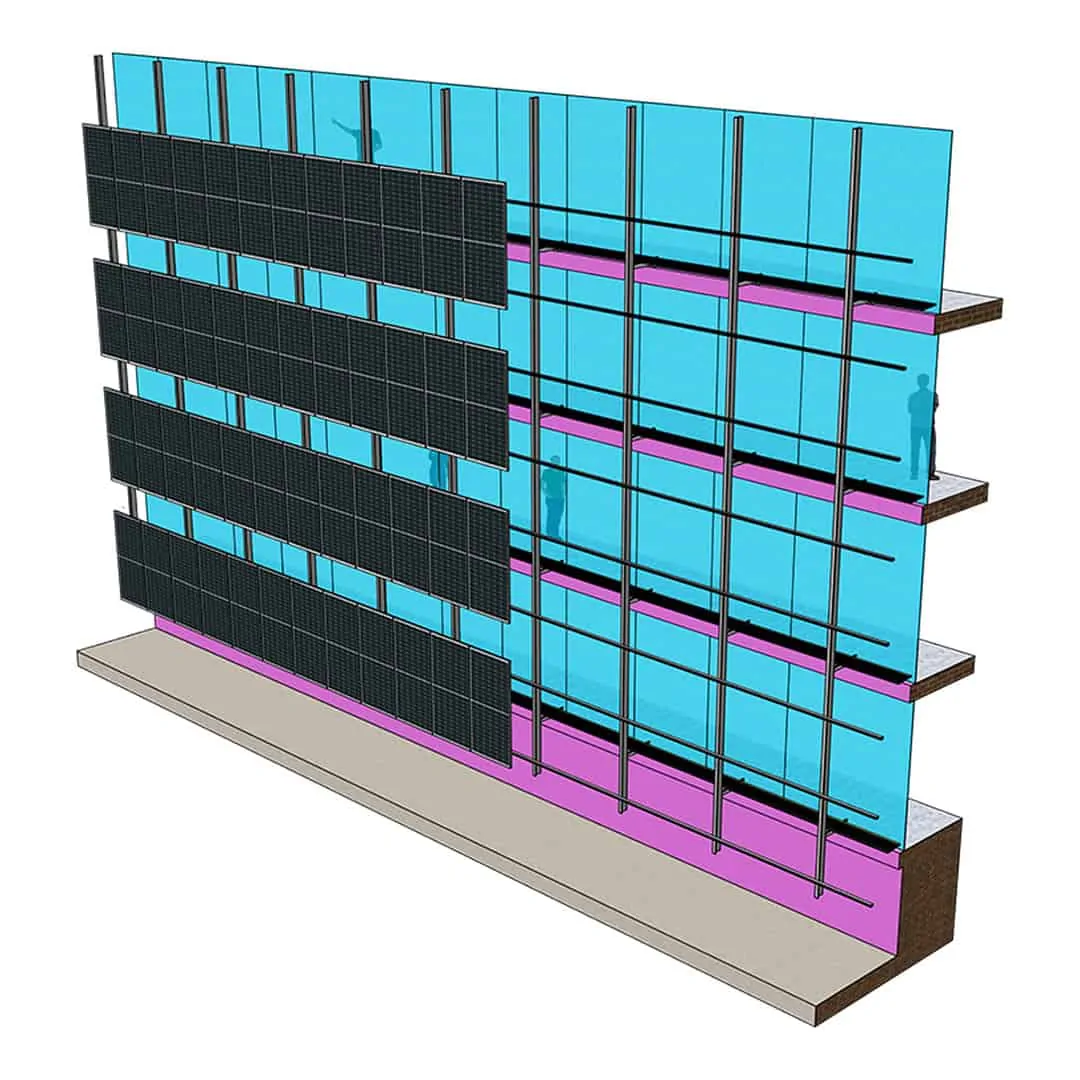

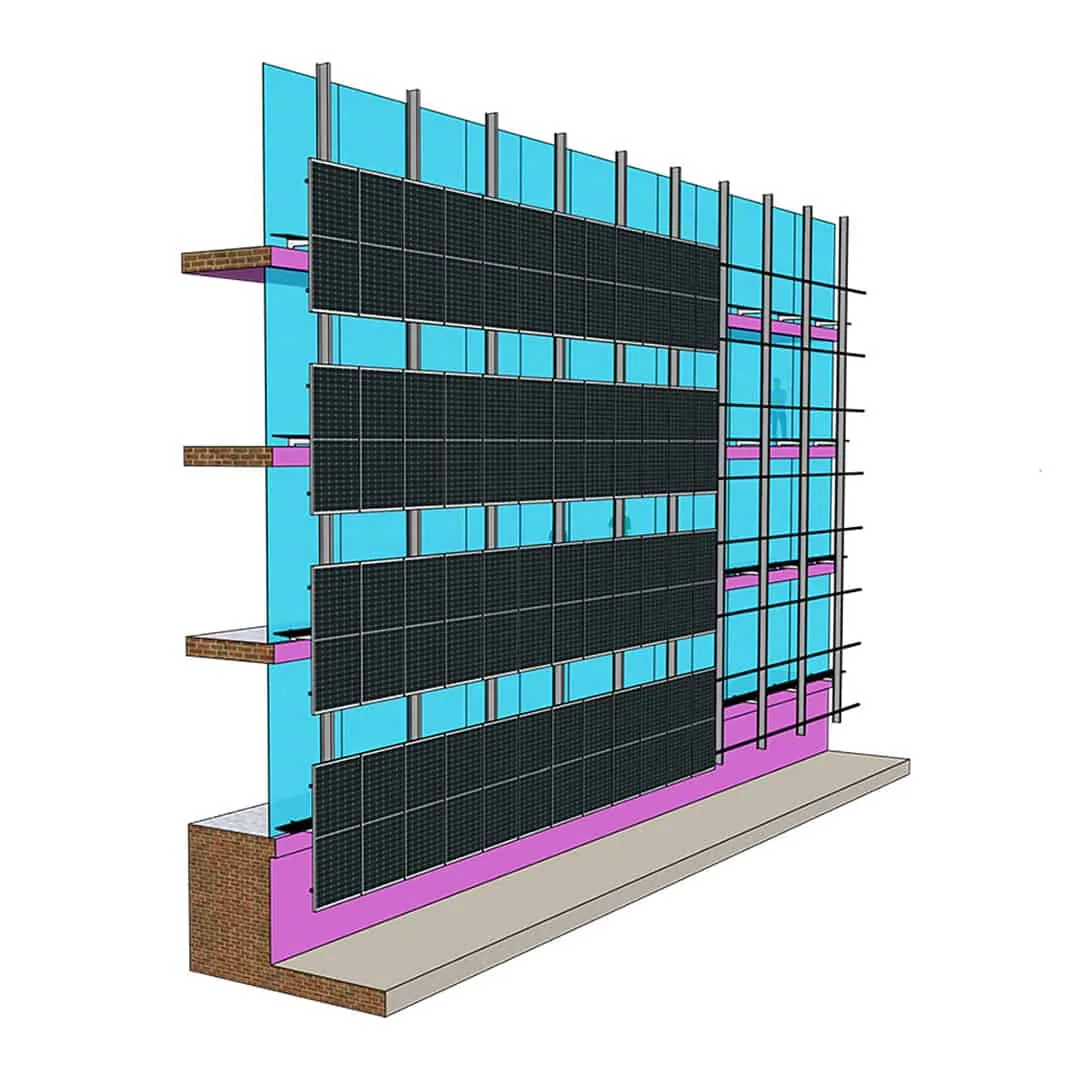

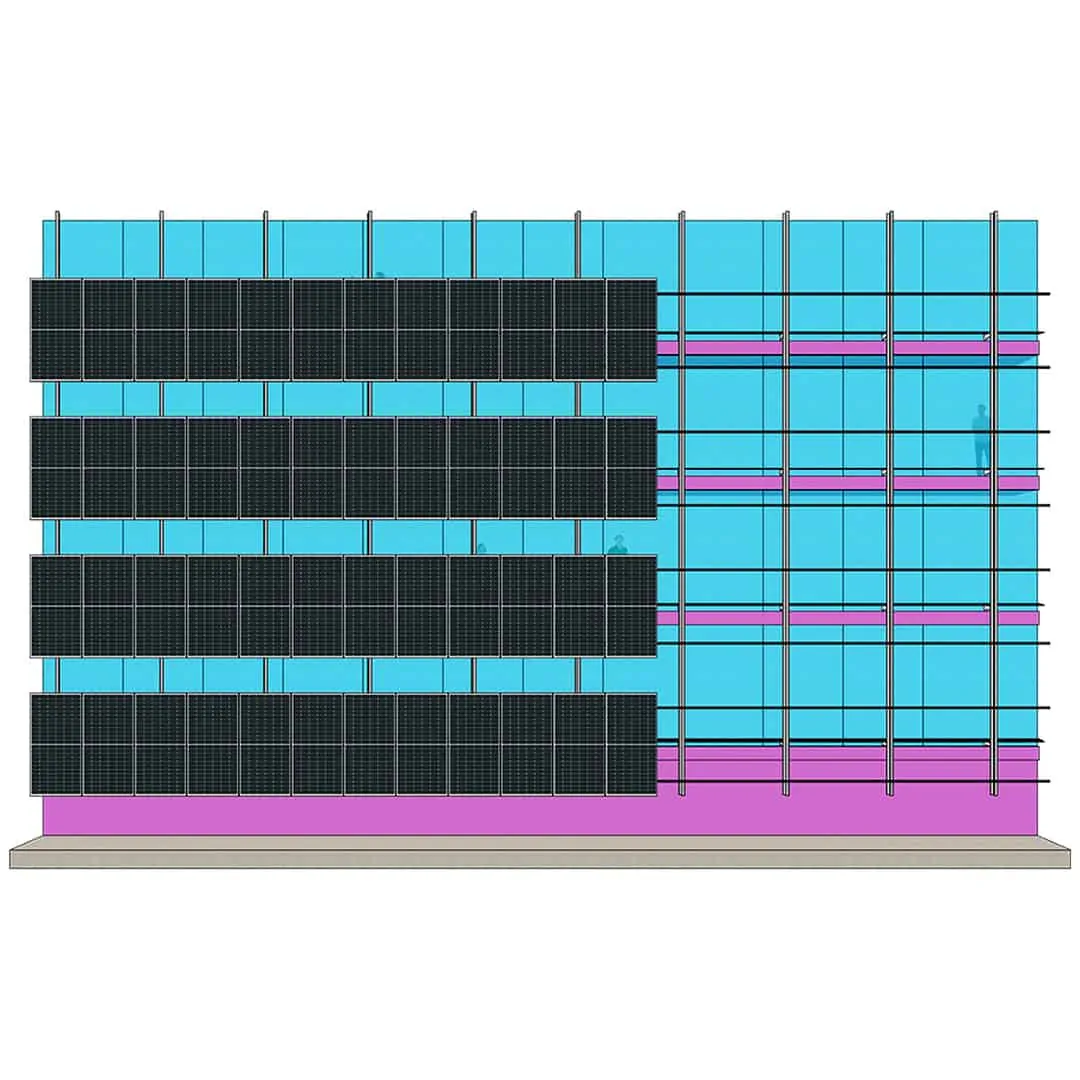

The Photovoltaic facade system 1P-12 is configured as one vertical column of twelve panels, mounted in portrait orientation. With the specified module dimensions of 2278 × 1134 × 30 mm, the system supports 12 full-size panels per column. This layout ensures a stable structural balance while maximising energy generation on limited façade areas.
Compatible photovoltaic panels
The system is compatible with standard large-format photovoltaic panels. It has been dimensioned for modules measuring 2278 × 1134 × 30 mm, which correspond to common high-power models from Tier 1 manufacturers. By aligning the structure with widely available panel dimensions, we give project developers flexibility to choose their preferred suppliers and optimise energy yield. This compatibility also secures future availability of replacement modules, ensuring the long-term viability of the installation.
System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
