Ground Mounted Solar Panels 2P-7

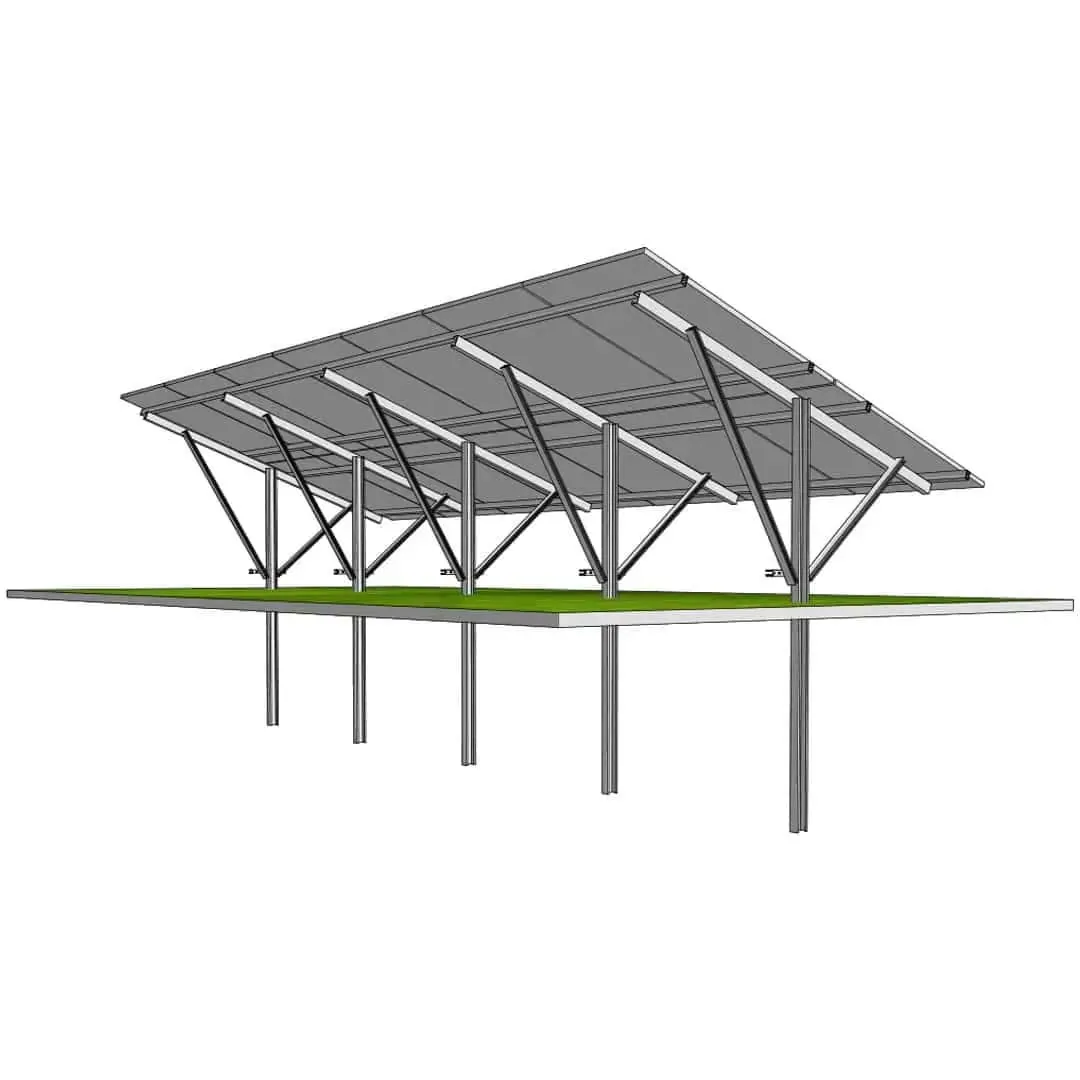

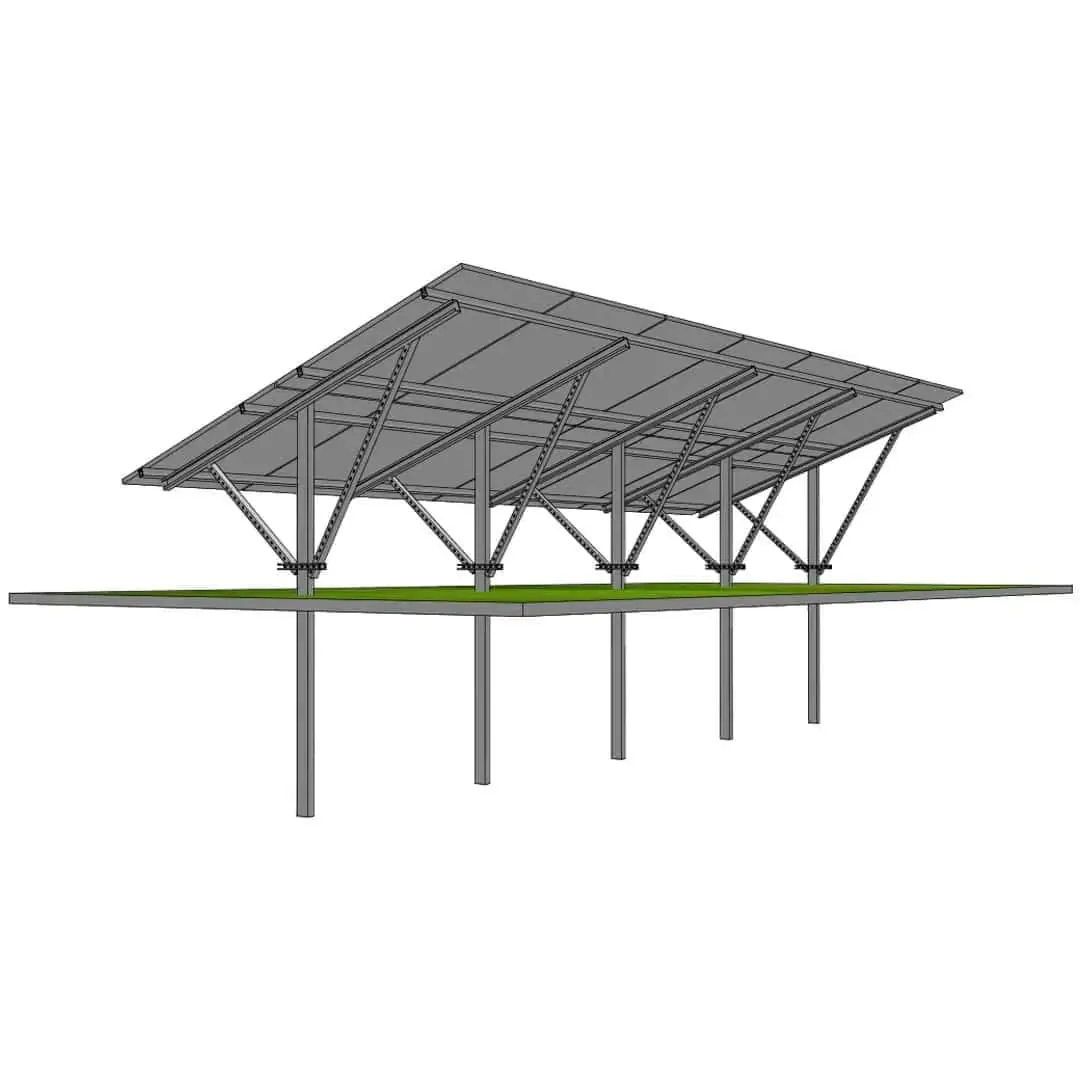

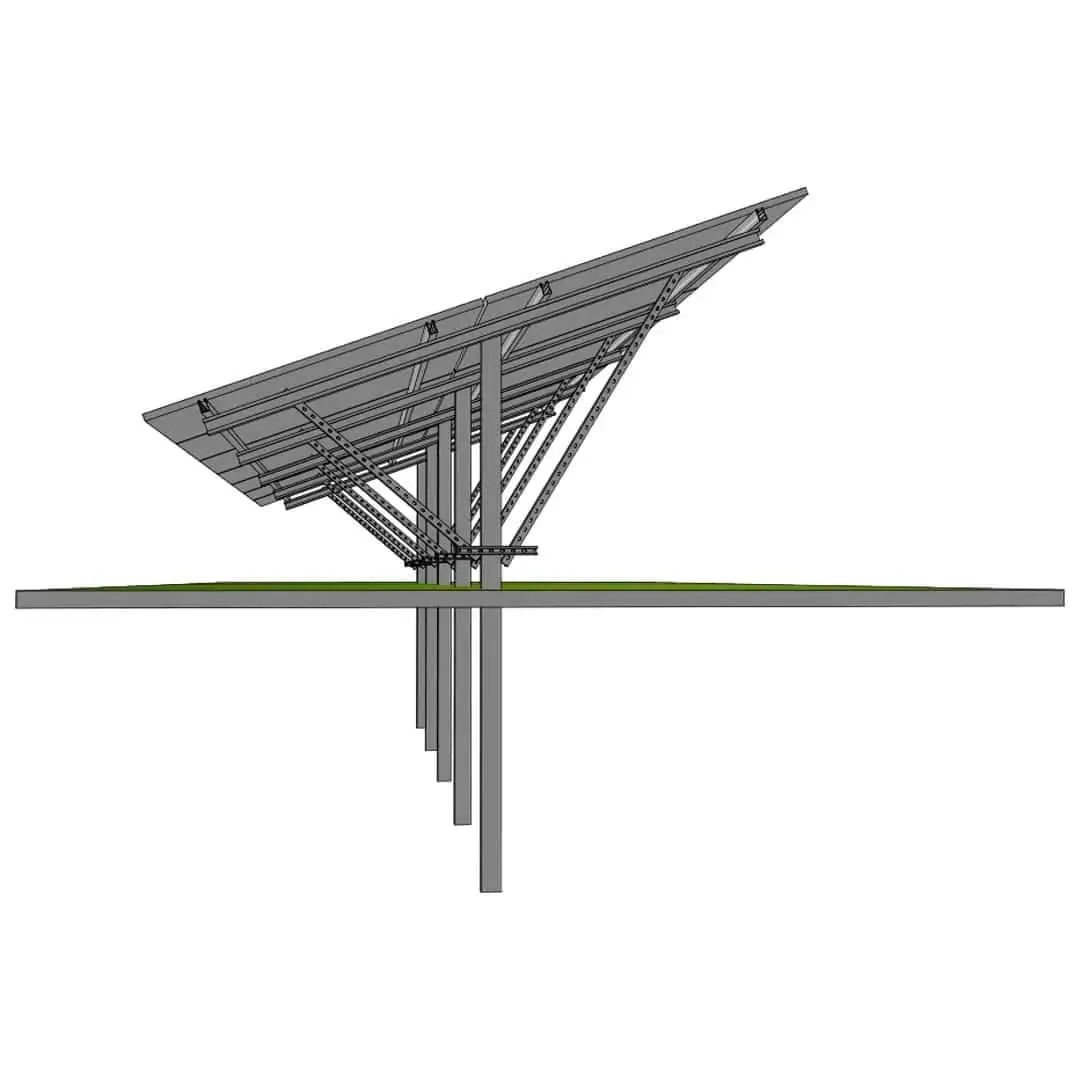

The Ground Mounted Solar Panels 2P-7 system is designed for ground-based photovoltaic installations, combining ease of assembly with long-term stability. Its fully galvanized steel structure ensures high durability with corrosion resistance and minimal maintenance, even in demanding conditions. With tilt angle options of 20°, 23°, 25°, 28°, and 30°, the system allows optimized positioning for maximum energy yield and flexibility across diverse project requirements. The modular design adapts easily to different terrains, while the clamping system ensures precise panel alignment and simplifies servicing. Compact and reliable, the 2P-7 is ideal for developers seeking a cost-effective solution that balances installation speed, safety, and long-term performance.

Capacity: 14 photovoltaic panels (2278 × 1134 × 30 mm)

Foundation system: galvanized steel poles driven 1500 mm into the ground

Kit includes

  • 5 galvanized steel poles (support posts)
  • 5 main beams
  • 8 transverse purlins
  • 2 bracing members for structural reinforcement
  • Complete set of high-strength galvanized bolts (class 8.8)
  • Aluminum clamps for panel fixation
Tilt angle
10°, 15°, 20°, 25°, 30°
Solar panels
2278x1134x30 mm
Poles
1 Pole
Foundation system
galvanized steel poles

Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.

Request a Quote
Standard Dimensions: 2278x1134x30 mm
Send to

Ground Mounted Solar Panels 2P-7

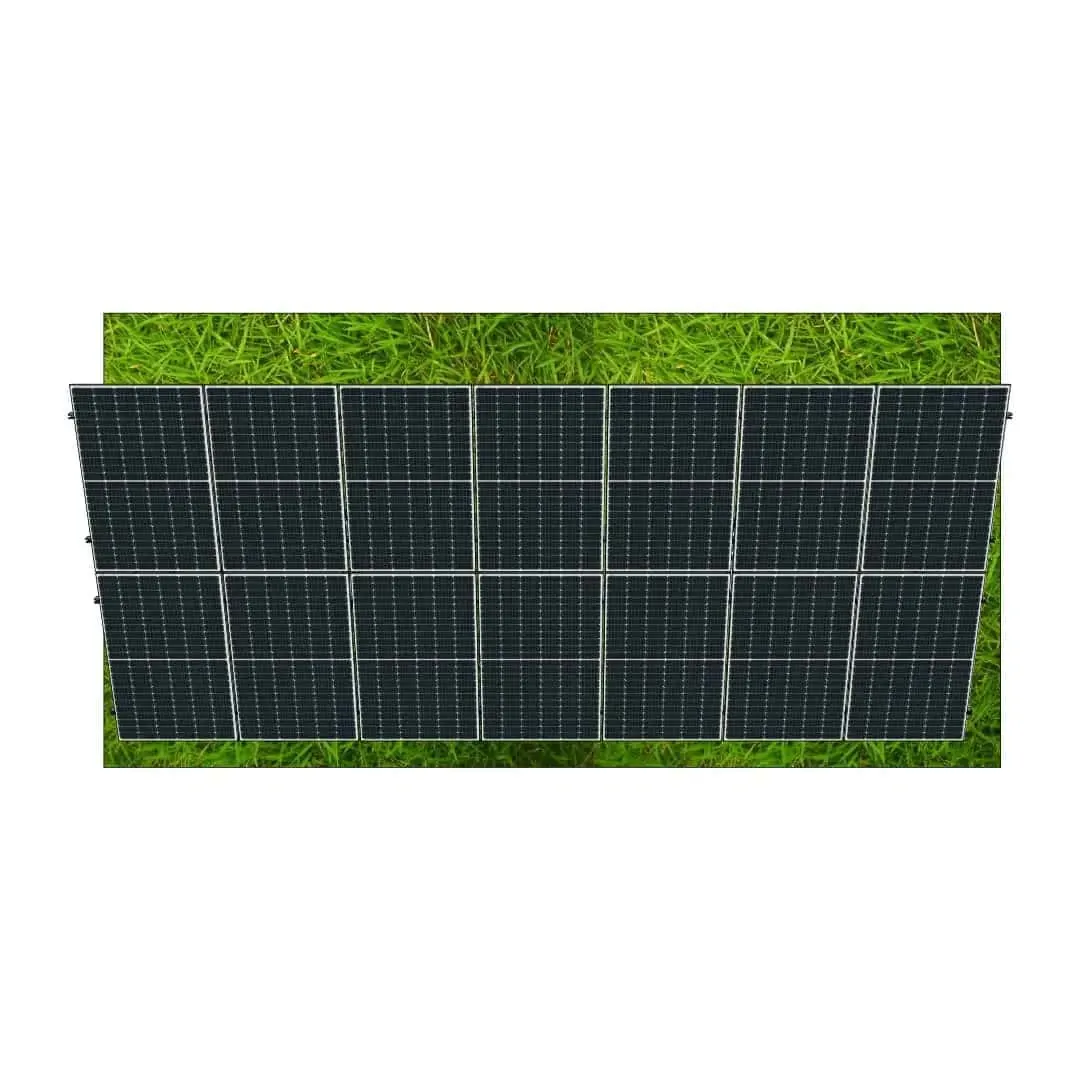

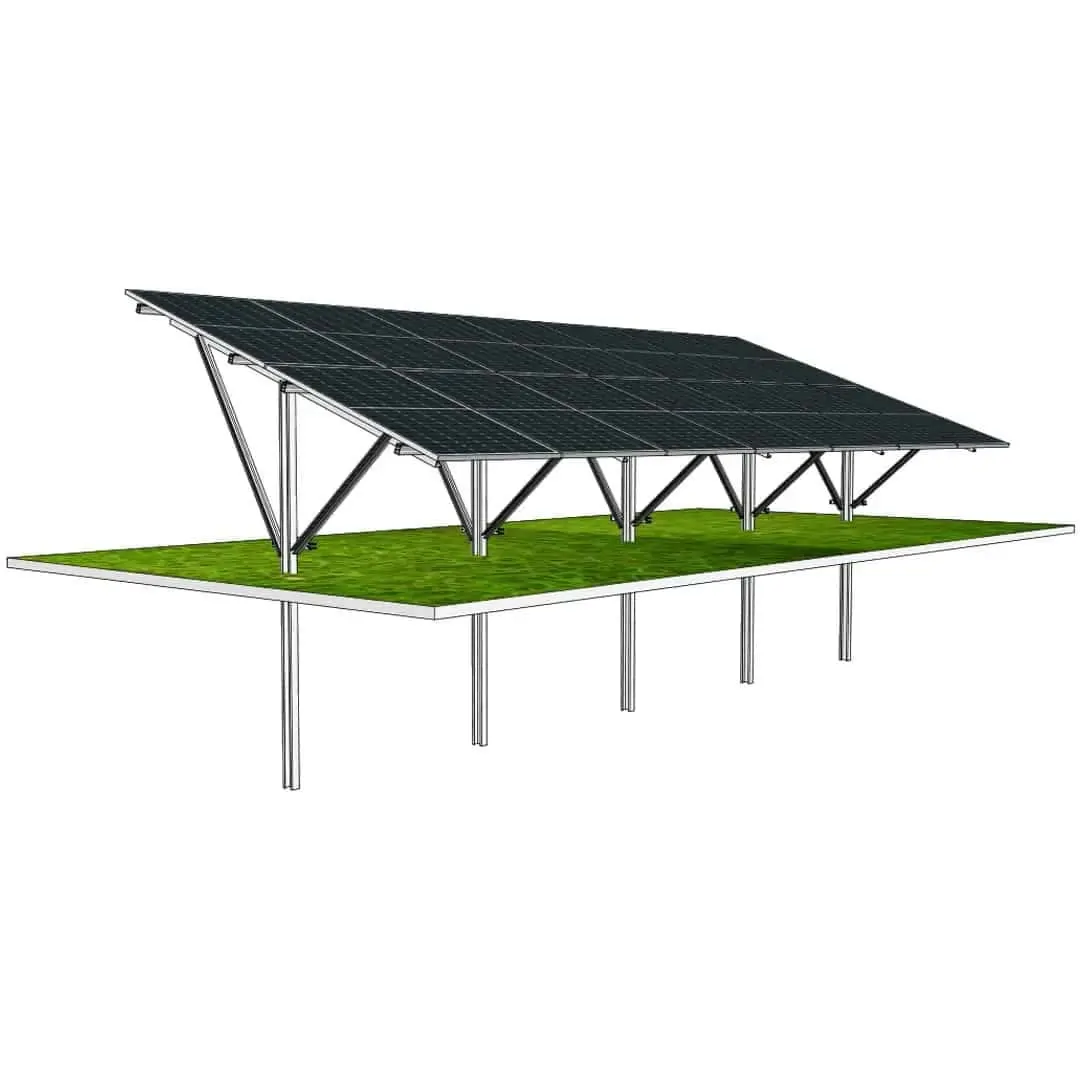

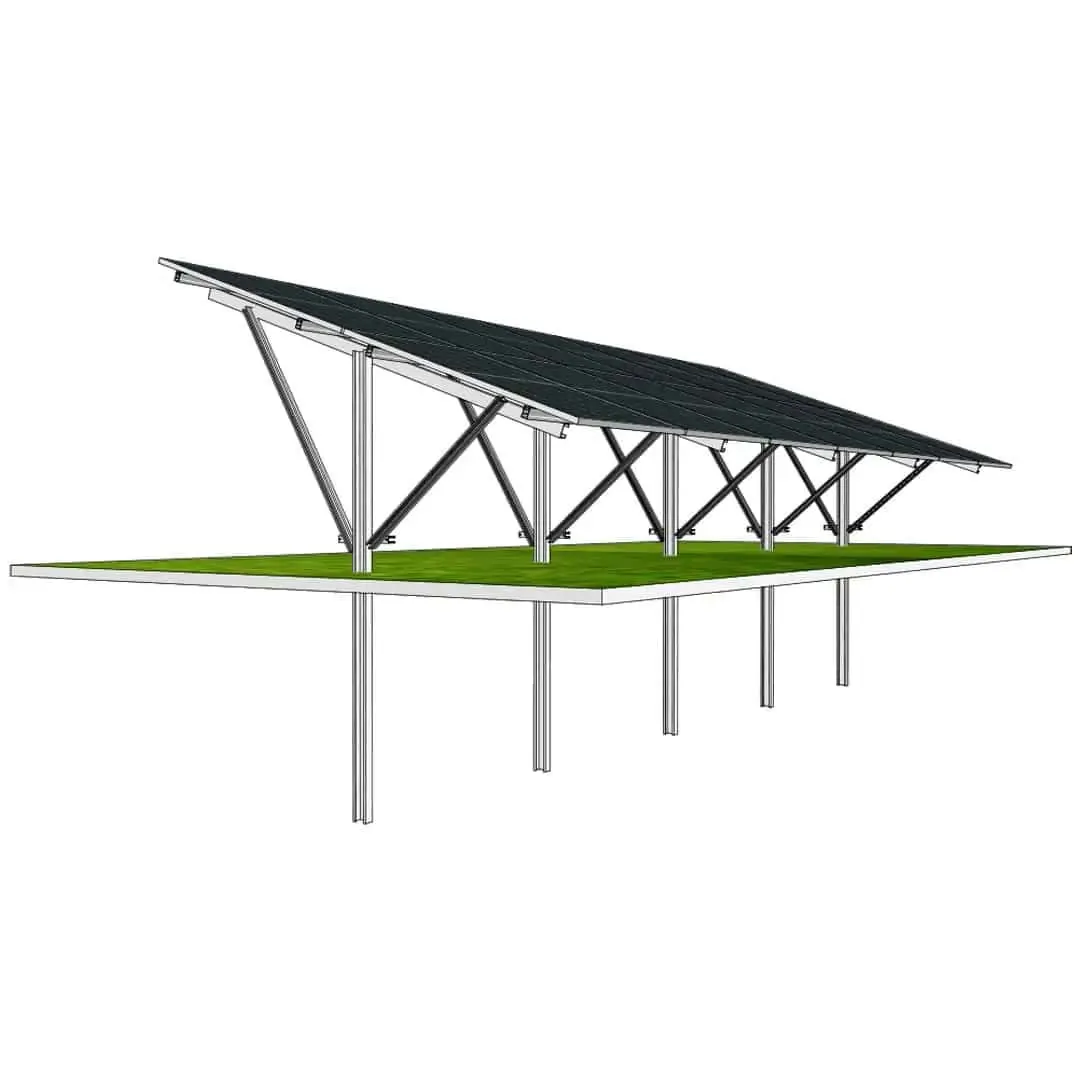

The Ground Mounted Solar Panels 2P-7 is a compact yet durable racking solution engineered for professional photovoltaic installations. Built from hot-dip galvanized steel, the structure offers exceptional resistance to corrosion and environmental stress, ensuring reliable operation across decades of service. Its driven post foundation, anchored 1500 mm into the ground, eliminates the need for concrete and makes installation faster, cleaner, and more cost-effective. The system supports two portrait-oriented modules across seven rows, with a total of 14 photovoltaic panels per structure. This balance between compact size and robust engineering makes the 2P-7 an excellent option for projects where land optimization, quick execution, and long-term stability are critical. With modular design, pre-drilled elements, and labeled components, installation teams can assemble the system efficiently, reducing errors and minimizing logistics costs. Offering flexibility, scalability, and compliance with ESG standards, the 2P-7 system provides EPCs and developers with a dependable choice for small and medium-sized solar parks.

Technical Specs

Advantages of the Ground Mounted Solar Panels 2P-7

  • Maximizes land utilization: The 2P-7 system is specifically designed to maximize energy density on available land, even in projects where the site has irregular shapes or limited surface area. Its compact arrangement minimizes inter-row distances while carefully controlling shading factors, ensuring optimal exposure to sunlight throughout the day. This design increases the number of installed modules per hectare, delivering higher kWh output without requiring additional land. At the same time, it maintains access paths for inspections, cleaning, and routine maintenance. By achieving greater efficiency per square meter, developers can improve project economics, enhance return on investment, and ensure that every portion of the site is used to its full potential. This advantage is particularly relevant in regions where land costs are high or where space is constrained by agricultural or industrial surroundings.
  • Minimizes long-term maintenance needs: Built from high-quality materials, the 2P-7 ensures a long service life with minimal intervention. Hot-dip galvanized steel profiles offer resistance against corrosion caused by humidity, rain, or snow, while anodized aluminum clamps provide a strong yet flexible grip on modules without frame damage. Class 8.8 high-strength bolts maintain preload and stability, reducing the risk of loosening or wear over time. The system is engineered to withstand dust, wind, and thermal expansion cycles, making it suitable for challenging environments such as arid regions or coastal areas. By reducing the need for frequent inspections and tightening, the system helps operators minimize downtime and operational costs. Investors benefit from predictable maintenance budgets and stable production yields, which directly contribute to improved long-term financial performance of solar assets.
  • Allows expansion or modification without redesign: The modular architecture of the 2P-7 offers unmatched flexibility for developers who anticipate scaling up projects or adapting to changing requirements. Additional sections can be installed seamlessly without redesigning the entire system, enabling quick project expansion while maintaining structural consistency. If future module technologies introduce different dimensions or thicknesses, the racking system can be adapted with only minor changes to clamps and connectors. This adaptability reduces engineering timelines and eliminates unnecessary costs, allowing investors to respond efficiently to new opportunities or market conditions. In multi-phase solar farms, this flexibility ensures continuity between different construction phases, reducing approval cycles and simplifying logistics. Ultimately, the system protects the long-term value of the investment by ensuring compatibility with evolving technologies and project needs.
  • Complies with modern green energy standards: Sustainability is built into the design of the 2P-7 system. The foundation relies on driven posts rather than concrete, minimizing soil disturbance and significantly reducing the project’s carbon footprint. This foundation type also makes the installation reversible, allowing land to be restored to its original state after decommissioning. Over 95% of the materials used—primarily steel and aluminum—are recyclable, contributing to circular economy objectives. These features make the system compliant with ESG criteria and align with sustainability-linked financing requirements. Projects that use this system are better positioned to access grants, subsidies, or green loans tied to environmental performance. By combining technical efficiency with ecological responsibility, the 2P-7 not only delivers energy but also enhances the sustainability profile of the overall project, ensuring compliance with present and future environmental standards.

Capacity

Each Ground Mounted Solar Panels 2P-7 structure accommodates 14 photovoltaic modules with dimensions of 2278 × 1134 × 30 mm, ensuring efficient land use and optimized project economics.

Tilt angles

The system is available with tilt angles of 20°, 23°, 25°, 28°, and 30°. Other tilt options can be produced on request to adapt to project-specific conditions.

Compatible photovoltaic panels

The Ground Mounted Solar Panels 2P-7 is optimized for modules with dimensions of 2278 × 1134 × 30 mm, one of the most common formats in the solar industry. On request, the system can be adapted for modules with alternative sizes or thicknesses, ensuring compatibility with various suppliers.

System components

  • 5 support poles: Galvanized steel posts driven 1500 mm into the soil, forming the backbone of the system. They ensure stability under wind and snow loads and transfer forces safely into the ground.
  • 5 main beams: Longitudinal galvanized beams connecting the support poles. They distribute loads evenly, stabilize the structure, and ensure precise alignment during installation.
  • 8 cross purlins: Transverse members supporting and aligning the modules. They maintain uniform spacing, resist uplift, and ensure balanced weight distribution across the frame.
  • 2 bracing members: Diagonal reinforcements designed to increase rigidity and prevent torsional movement. They keep the array straight and stable even under dynamic wind conditions.
  • Set of high-strength galvanized bolts (class 8.8): Durable industrial fasteners that secure all joints. Their anticorrosion coating and tensile strength guarantee long-term stability with minimal maintenance.
  • Aluminum clamps: Purpose-built anodized clamps that hold panels firmly without damaging frames. Compatible with various module thicknesses, they provide secure, long-lasting fixation.

We are direct manufacturers with extensive stocks of ground-mounted solar racking systems ready for immediate delivery. The 2P-7 structure, with its 14-module capacity, offers an ideal balance of compact design, durability, and rapid deployment—making it a trusted choice for EPCs and solar developers seeking efficiency and long-term performance.
