Ground Mounted PV Panels 3P-18 East-West

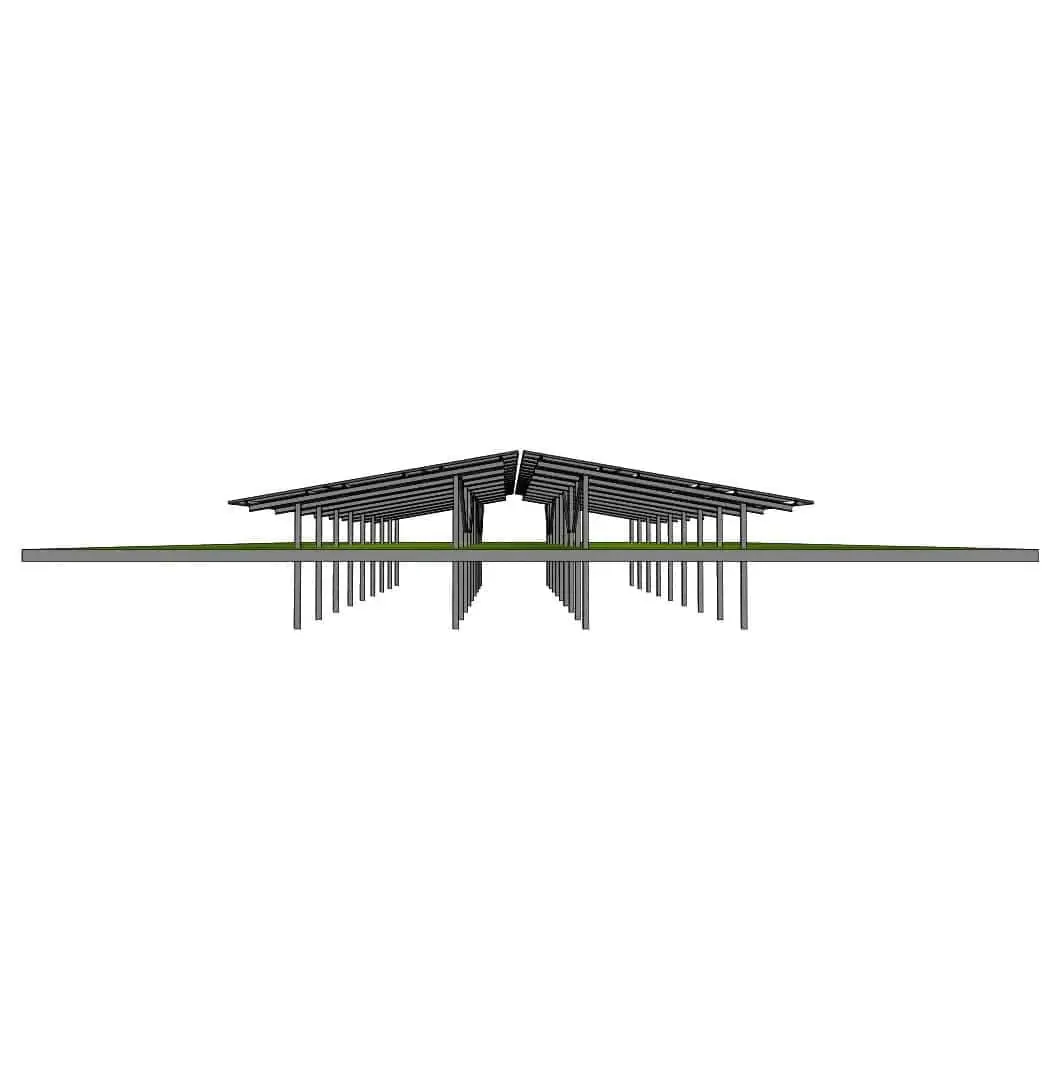

The Ground Mounted PV Panels 3P-18, designed for East-West orientation, provides a highly efficient and scalable solution for large photovoltaic parks. Its fully galvanized steel frame ensures superior durability with corrosion protection and minimal maintenance, even under harsh conditions. Offering tilt angle options of 8°, 10°, and 12°, the system is optimized to capture maximum sunlight across the day for East-West configurations. The modular concept allows seamless adaptation to diverse terrains and project requirements, while the advanced clamping system guarantees accurate panel alignment and easy servicing. With a high capacity supporting an entire row of modules, the 3P-18 system combines cost-effectiveness, structural stability, and long-term operational safety.
Capacity: 108 photovoltaic panels (2278 × 1134 × 30 mm)
Foundation system: galvanized steel poles driven 1500 mm into the ground
Kit includes
- 36 galvanized steel poles (support posts)
- 18 main beams
- 48 transverse purlins
- 8 bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Foundation system
Poles
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted pv panels 3P-18 East-West

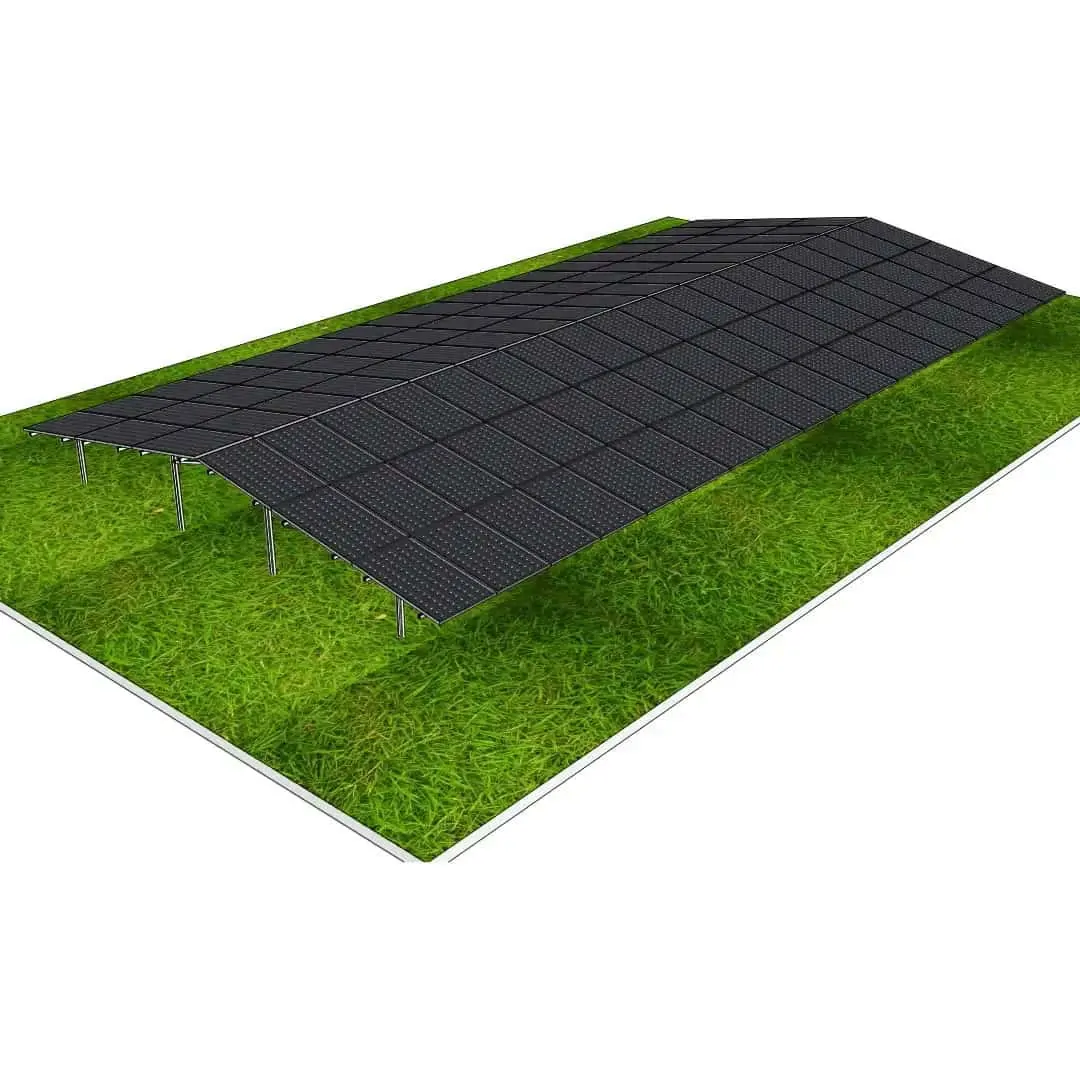

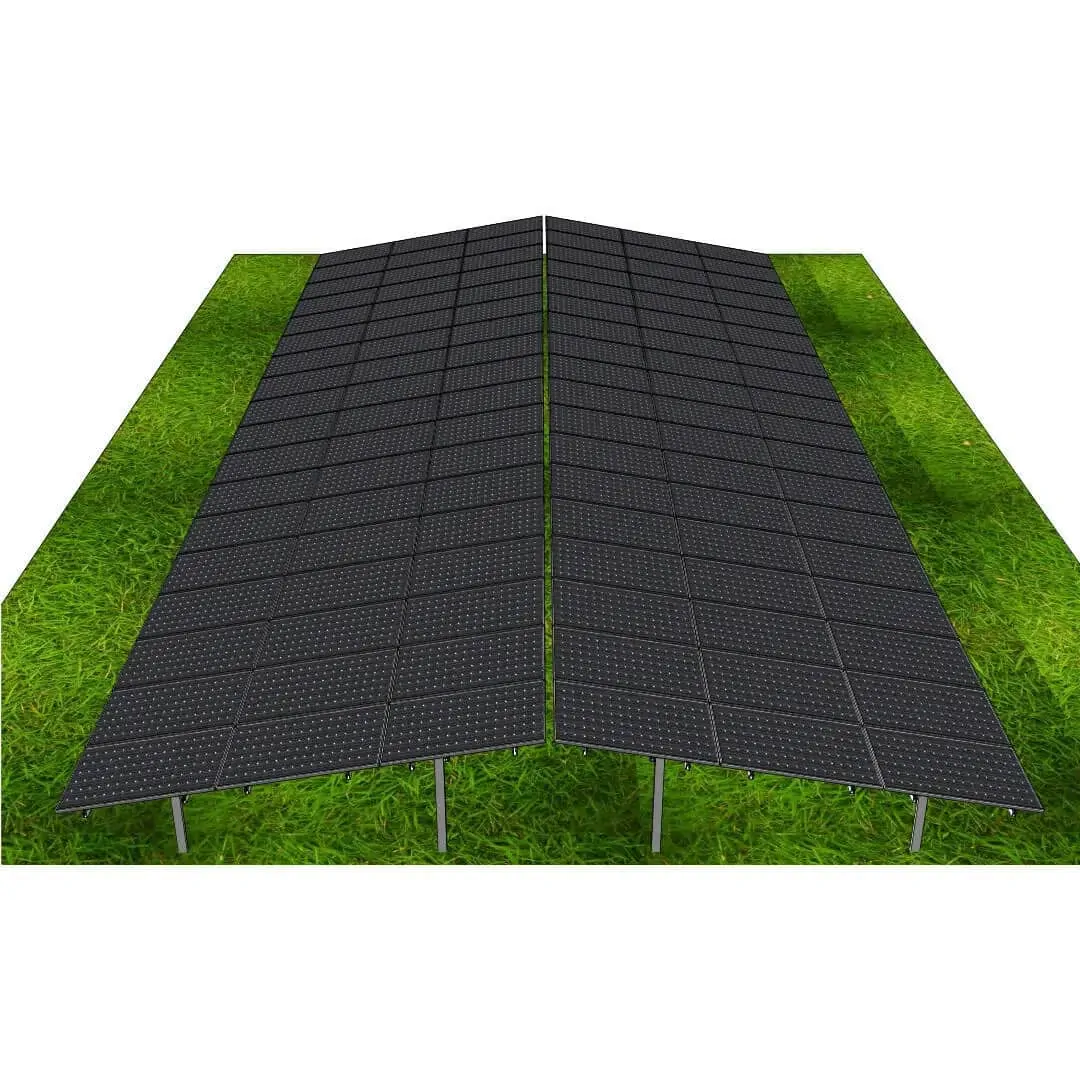

The Ground mounted PV panels 3P-18 East-West is a robust and professional mounting solution tailored for large solar parks and commercial photovoltaic projects. Built entirely from hot-dip galvanized steel, it is designed to deliver durability, corrosion protection, and minimal maintenance over decades of operation. With a configuration that supports three panels in portrait orientation and eighteen rows per table, each system accommodates up to 108 modules. Its East-West layout ensures a balanced daily production curve, capturing sunlight both in the morning and afternoon, which results in a flatter generation profile and improved land-use efficiency. By eliminating the need for concrete foundations, the system relies on driven steel posts rammed 1500 mm deep into the soil, allowing rapid installation, reduced environmental impact, and lower construction costs. Pre-drilled and labeled components further simplify assembly, making the 3P-18 East-West an ideal choice for developers and EPC contractors seeking reliable, cost-efficient, and ESG-compliant solutions.
Key Advantages of the 3P-18 East-West Ground Mounted Solar System
- Maximizes land utilization: The East-West orientation removes the need for wide shading zones, allowing a denser arrangement of rows and more efficient land coverage. Although the annual production may be 3–5% lower than south-facing systems, the energy yield per square meter is often higher, ensuring maximum kWh output from the available land. This configuration is especially suitable for projects with limited space or high land value, where every square meter counts.
- Minimizes long-term maintenance needs: Designed with galvanized steel, class 8.8 high-strength bolts, and aluminum clamps, the system offers exceptional resistance against corrosion, humidity, dust, and temperature variations. Its durable construction prevents loosening or wear over time, significantly reducing the need for ongoing maintenance. This reliability translates into lower operating costs and consistent performance, even under harsh environmental conditions.
- Allows expansion or modification without redesign: The modular architecture of the 3P-18 East-West system allows future scaling by adding identical sections or adapting to different panel dimensions with minimal adjustments. This flexibility ensures that investors can expand their installations or upgrade technology without the cost of full redesigns, reducing approval and construction timelines in subsequent phases.
- Complies with modern green energy standards: Installed without concrete, the system uses steel posts rammed directly into the soil, reducing both carbon footprint and land disturbance. Fully reversible, it enables land restoration at the end of its lifecycle, while the use of over 95% recyclable materials ensures compliance with sustainability and ESG criteria. These features make it eligible for green financing schemes and environmentally focused tenders.
Capacity

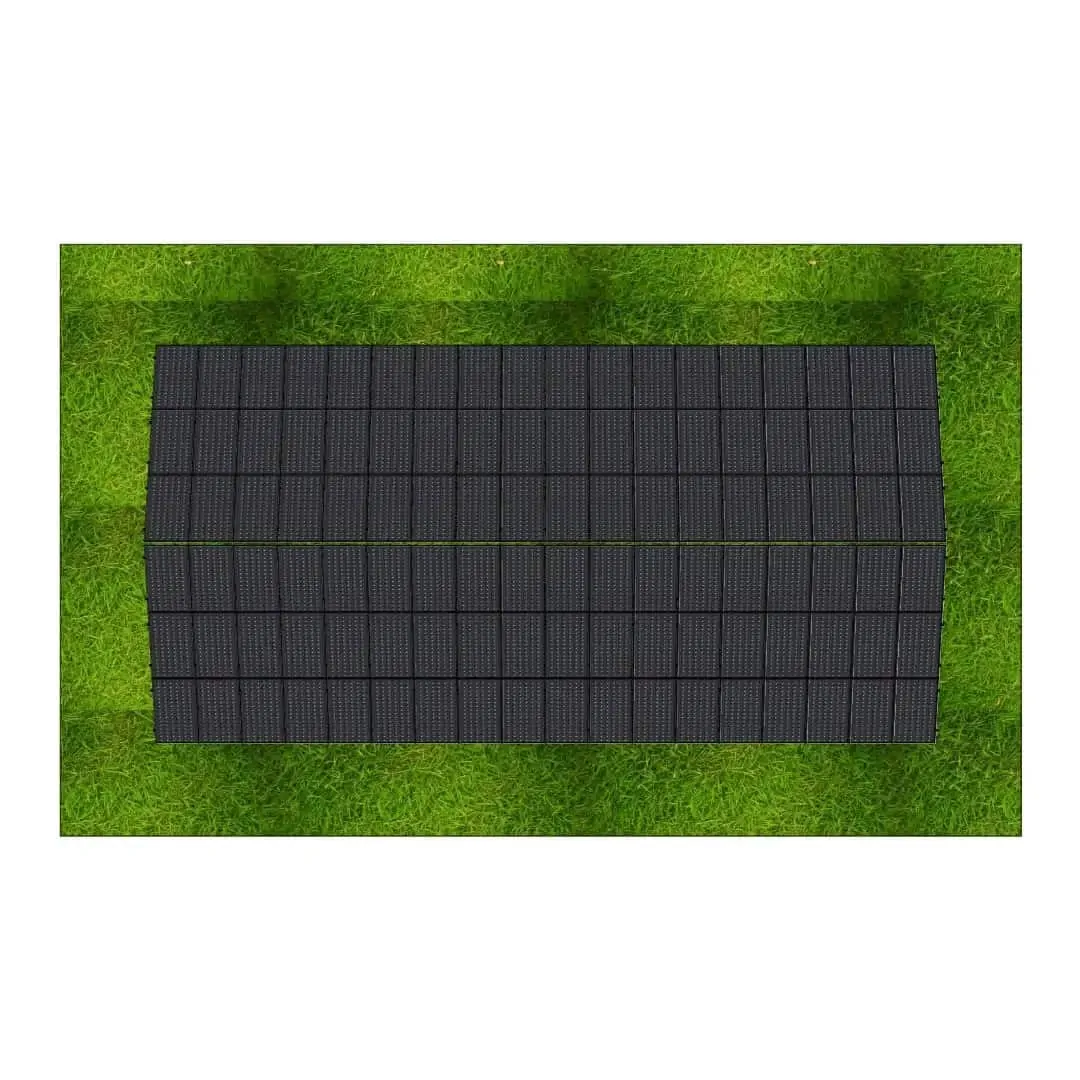

Each Ground mounted PV panels 3P-18 East-West structure is designed to accommodate 108 photovoltaic modules with standard dimensions of 2278 × 1134 × 30 mm. This high-capacity design makes it especially suitable for medium to large-scale installations, optimizing both land use and system output.
Tilt angles
Available with tilt angles of 8°, 10°, and 12°, optimized for East-West applications. Additional tilt options can be provided upon request to meet project-specific requirements.
Compatible photovoltaic panels
The system is optimized for standard photovoltaic modules of 2278 × 1134 × 30 mm, one of the most widely used formats in the industry. On request, it can be adapted to support modules of other dimensions or thicknesses, providing developers with full flexibility in module selection.

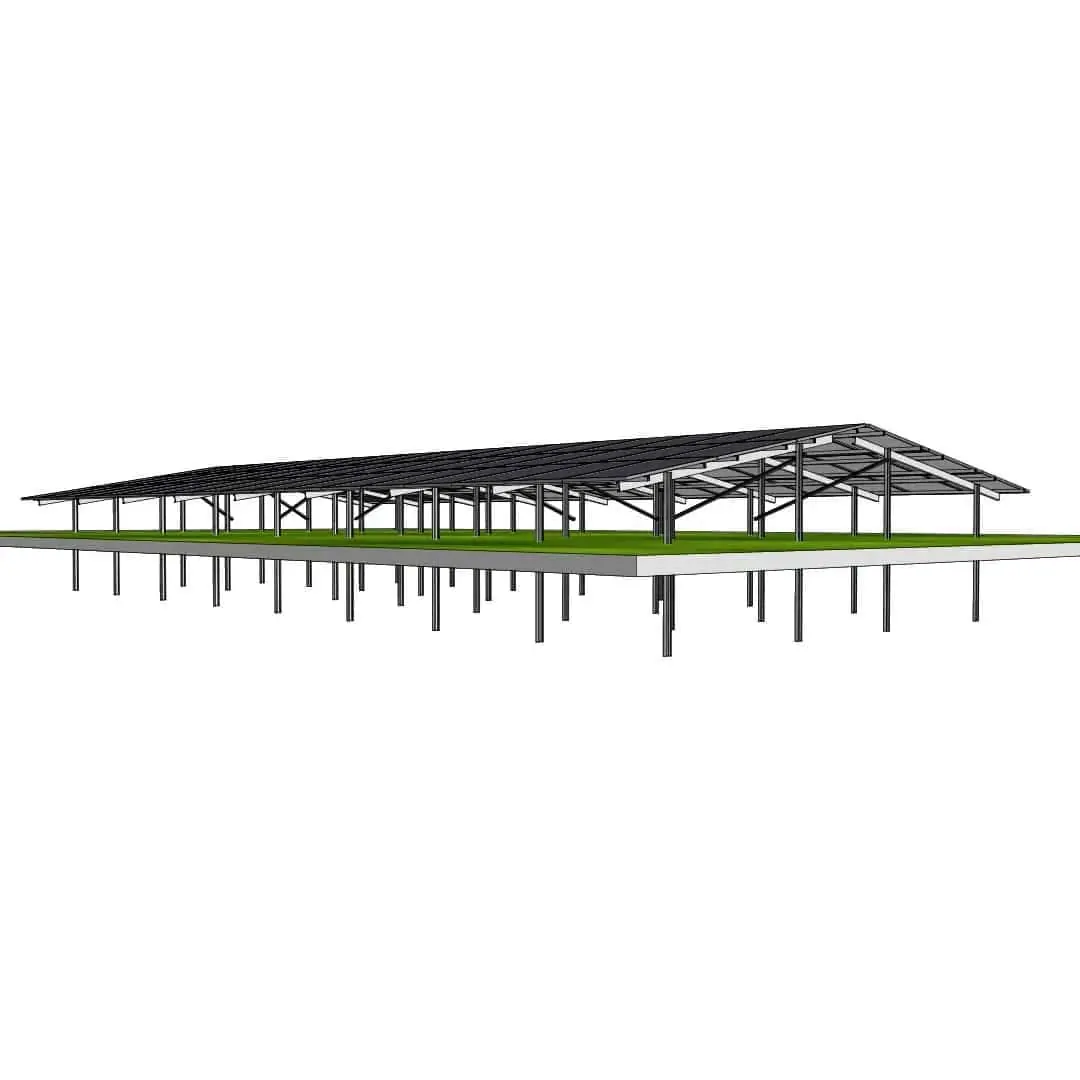

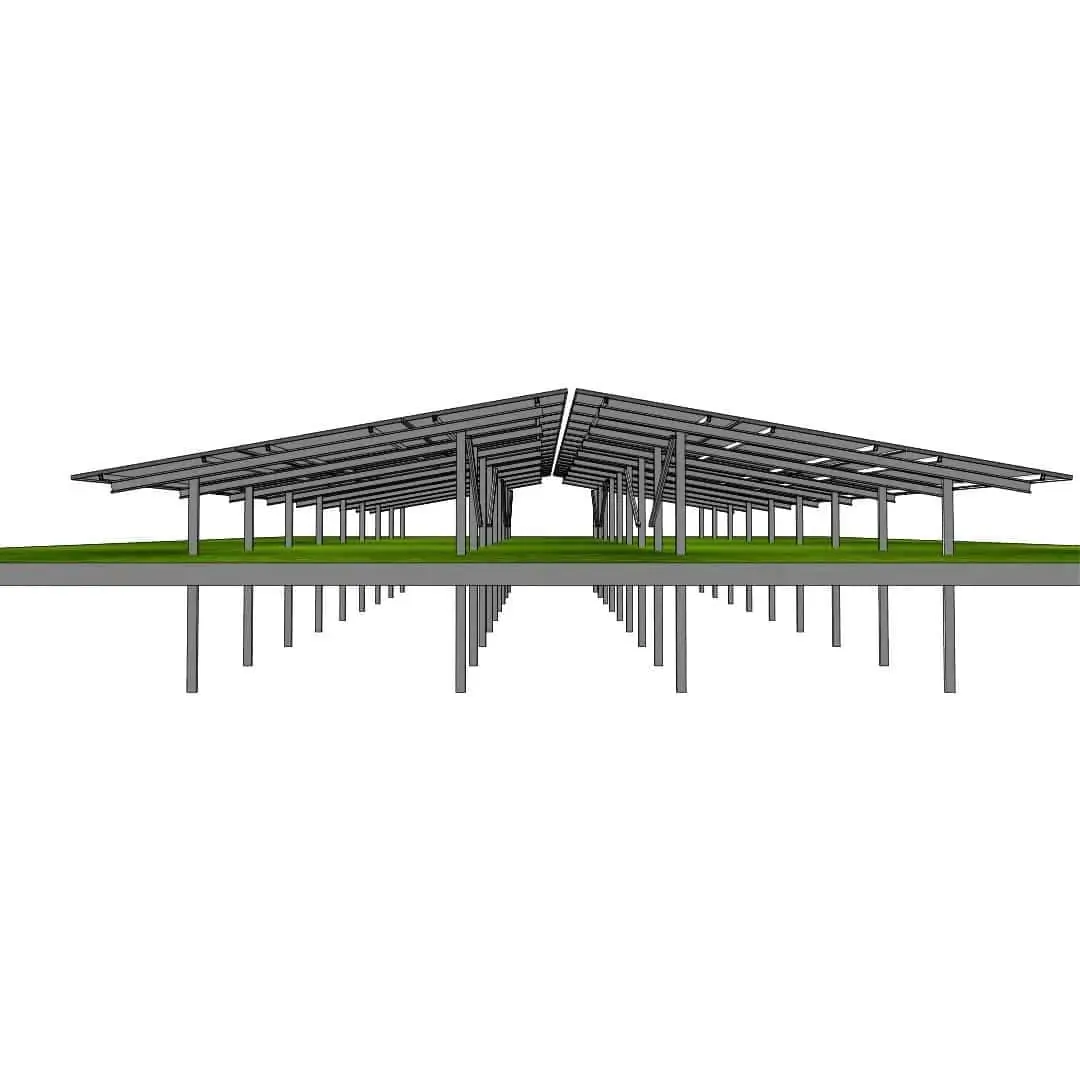

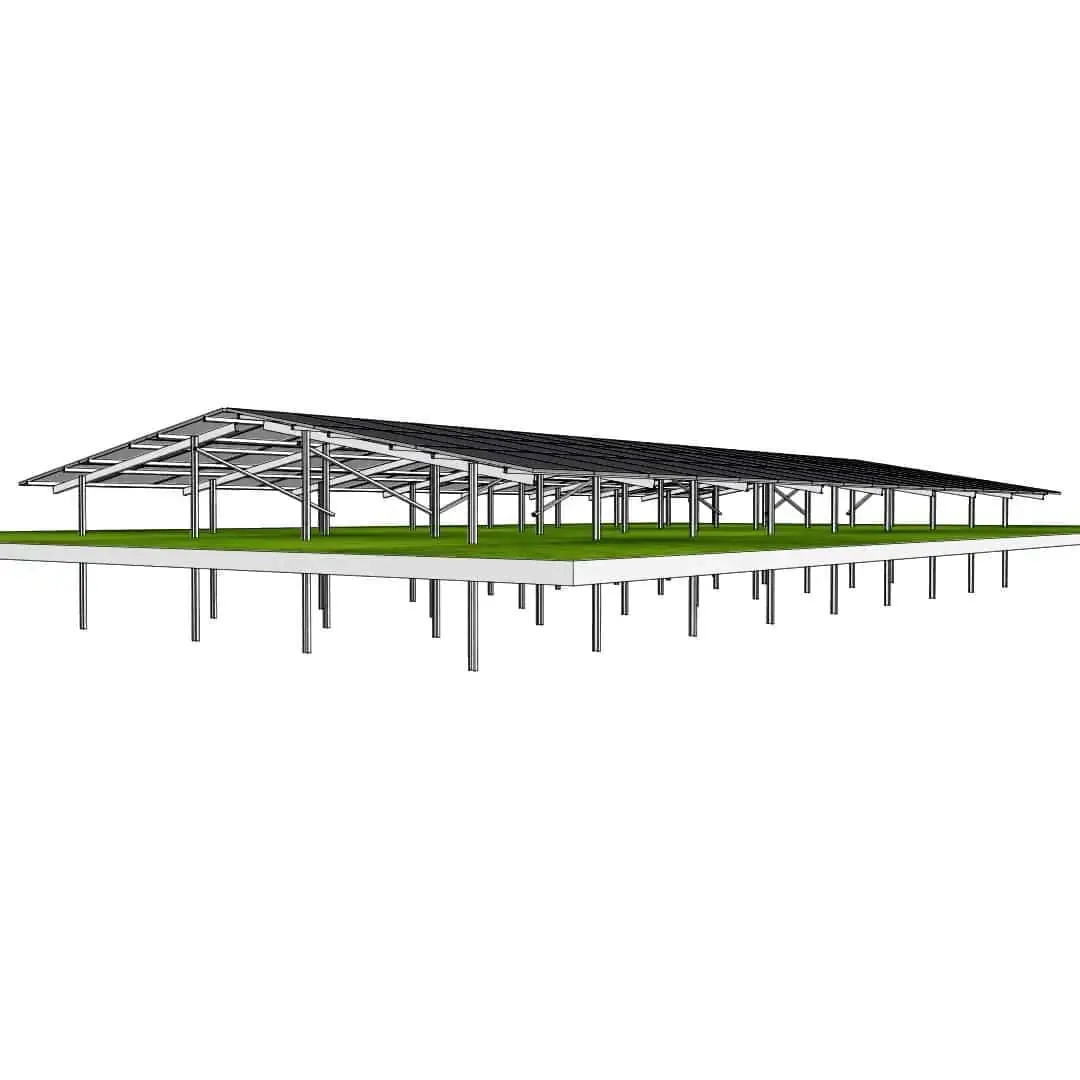

System components
- 36 support poles: Galvanized steel posts driven 1500 mm into the soil, providing a stable foundation without the need for concrete.
- 18 main beams: Longitudinal galvanized beams that distribute loads evenly across the frame, ensuring structural stability.
- 48 cross purlins: Precision-aligned elements that support the modules and guarantee consistent spacing and alignment.
- 8 bracing members: Diagonal braces that enhance rigidity, preventing torsion and vibration under strong winds.
- Set of high-strength galvanized bolts (class 8.8): Corrosion-resistant fasteners that ensure strong and reliable connections across all elements.
- Aluminum clamps: Lightweight, anti-corrosion clamps that secure the panels firmly without damaging their frames.
As direct manufacturers, we provide a wide range of ground-mounted PV systems directly from stock. The 3P-18 East-West structure, with its high capacity of 108 modules per table, is ready for immediate delivery, enabling developers and EPC contractors to execute projects quickly and efficiently. With long-term durability, fast installation, and ESG compliance, it is the ideal solution for modern solar investments.
