Solar panel ground mounting system 2P-7

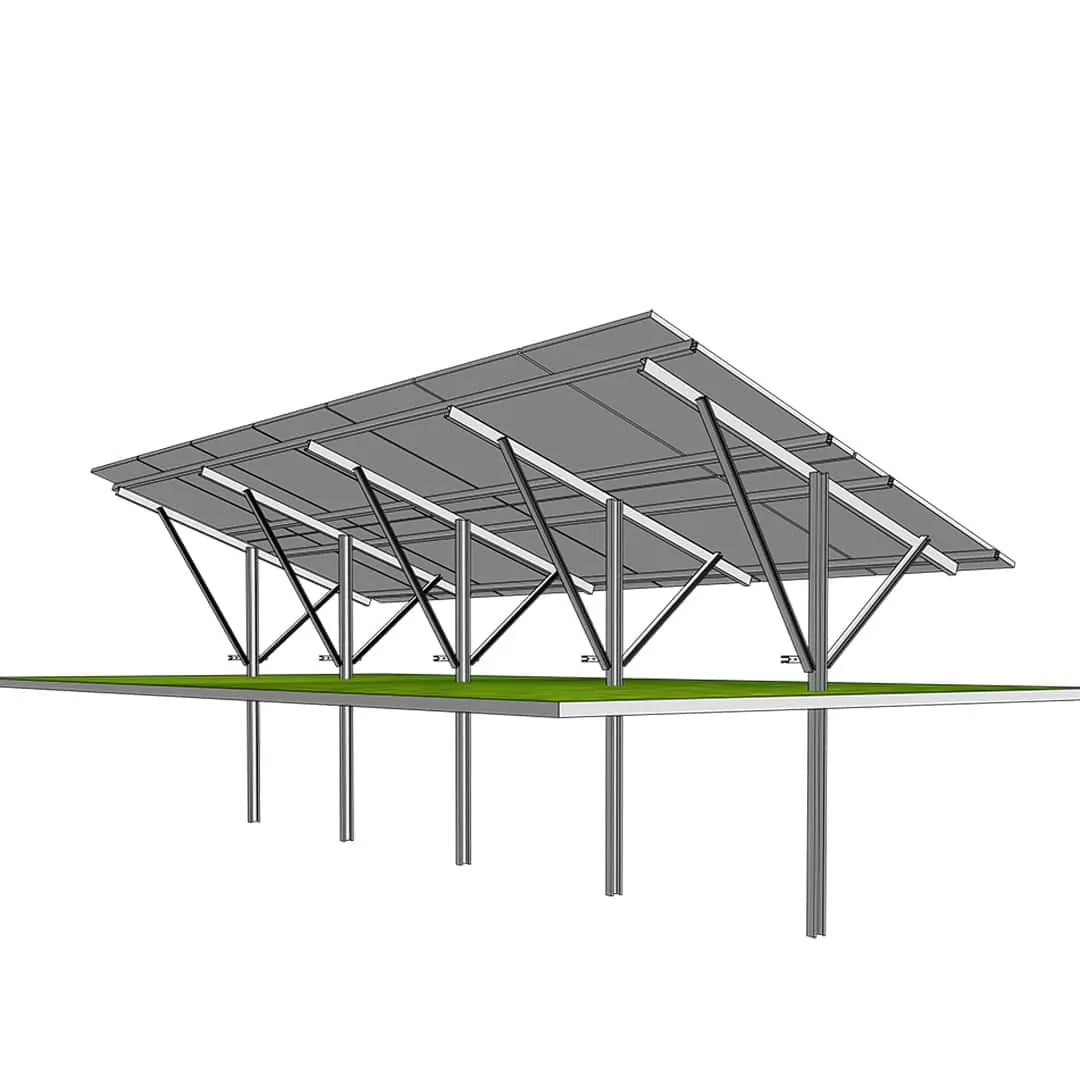

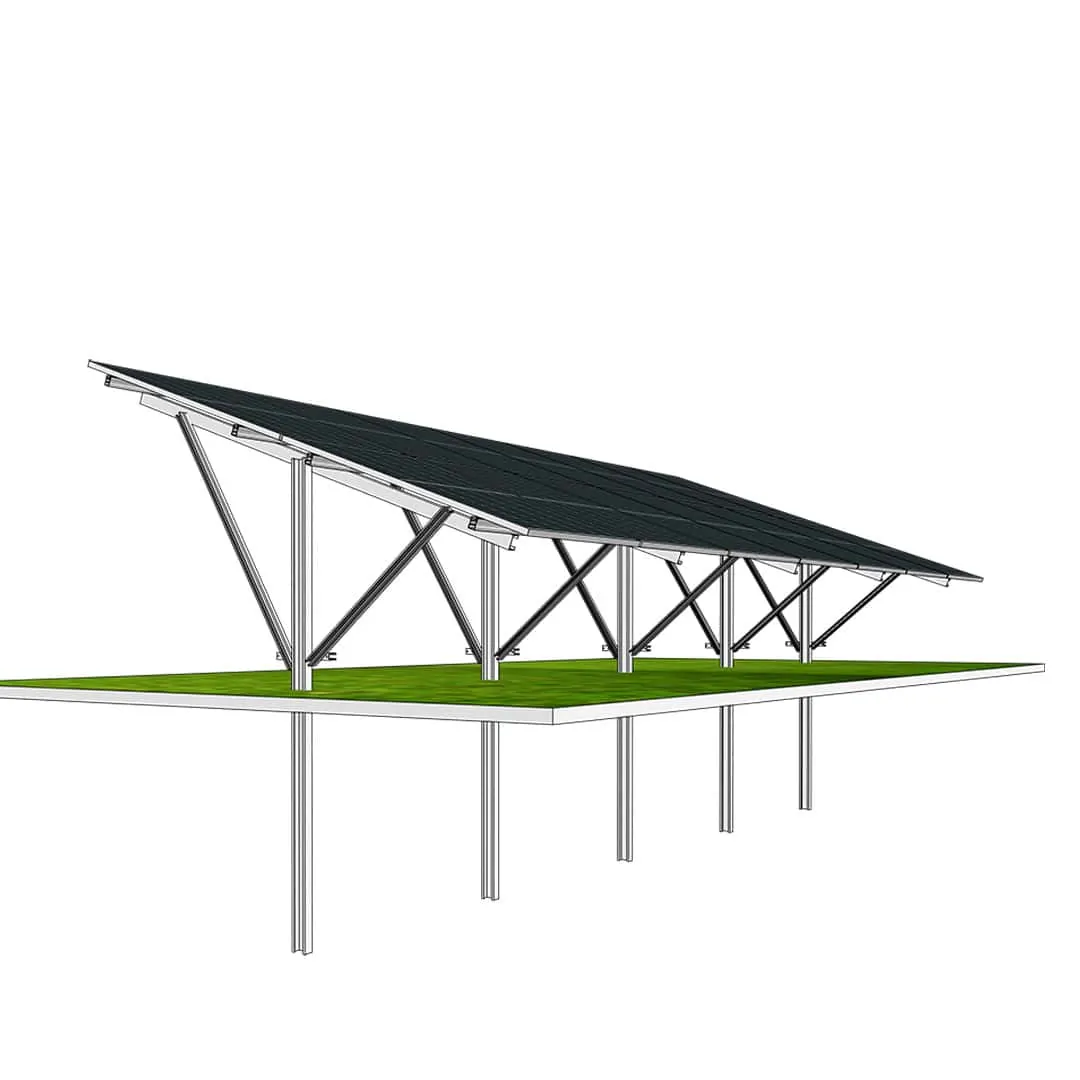

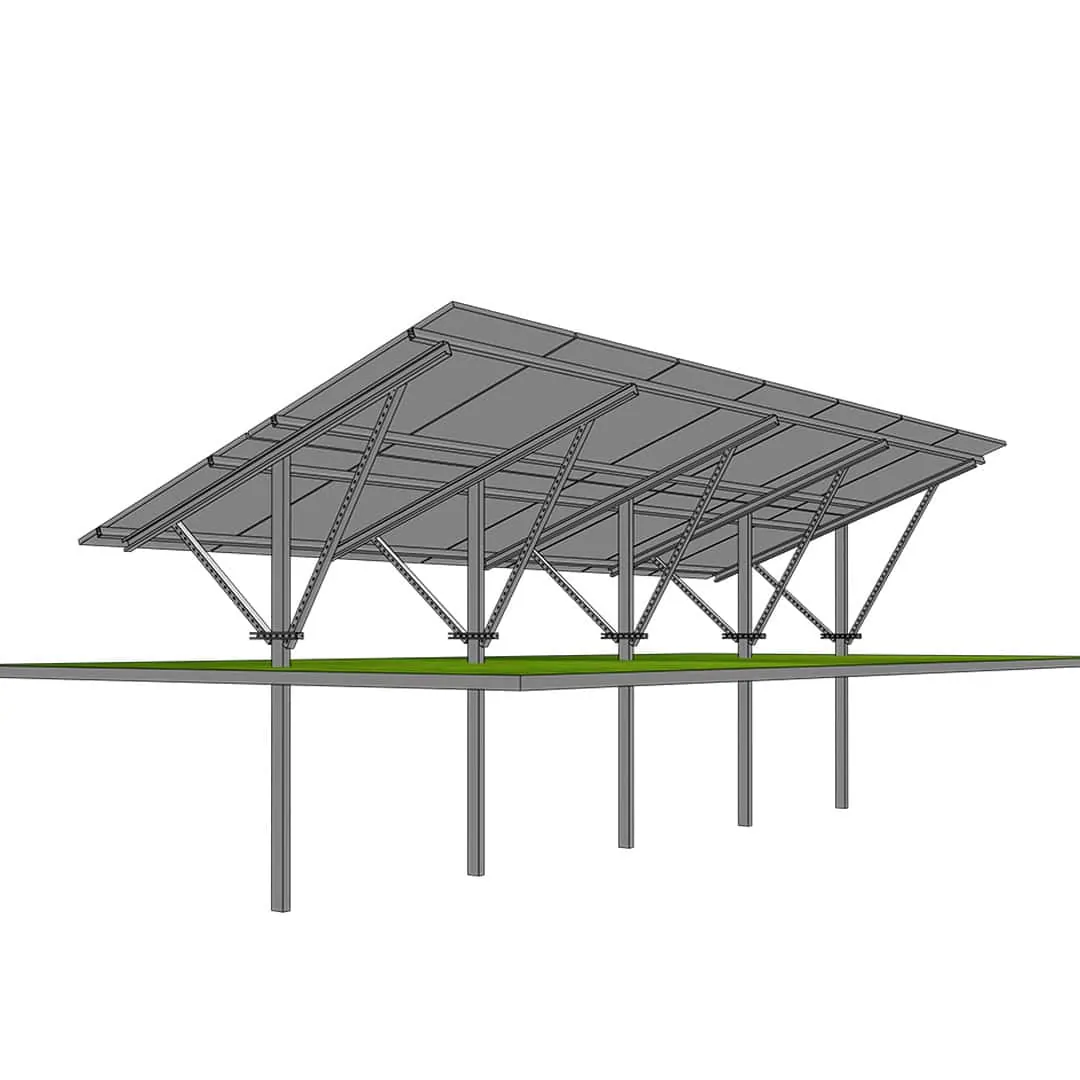

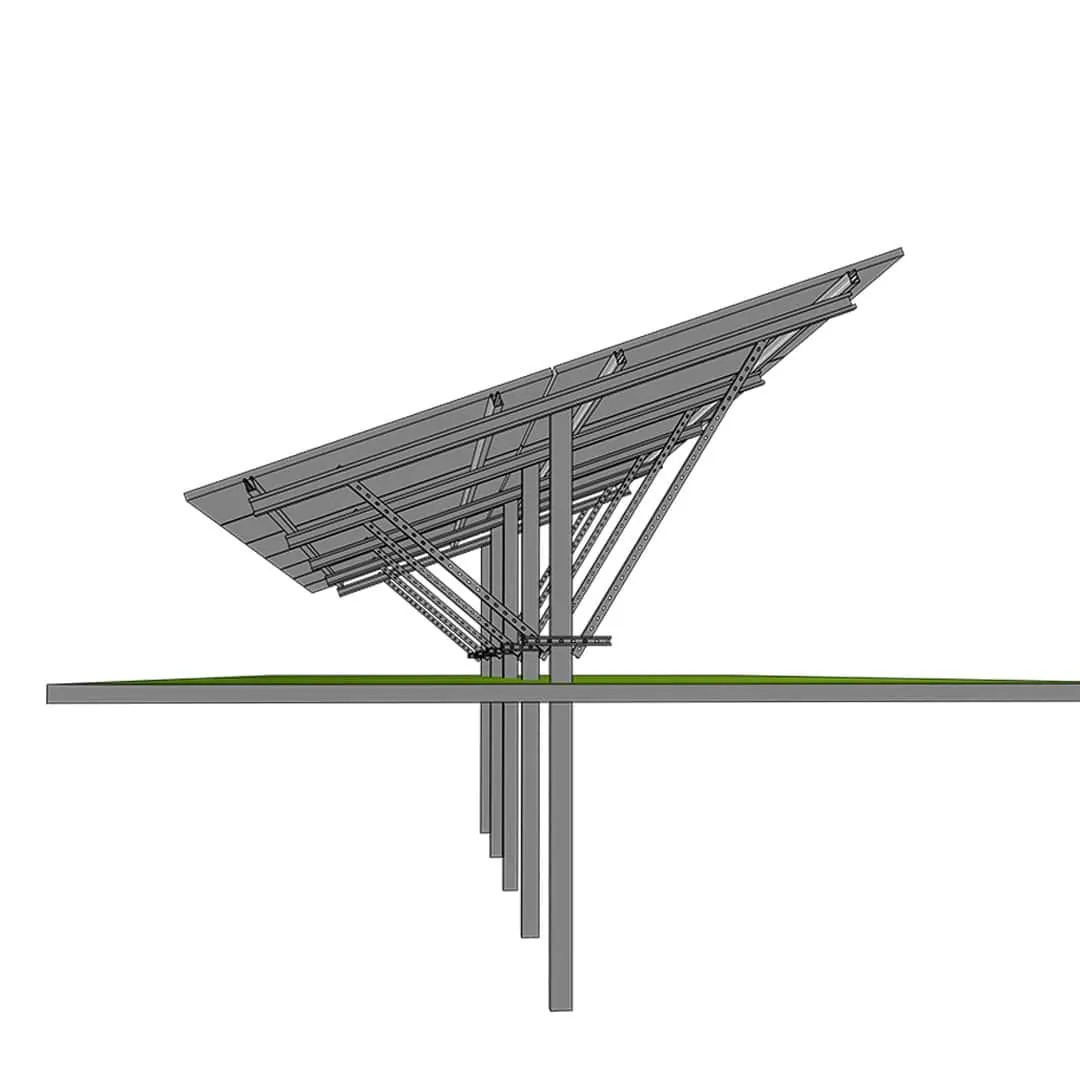

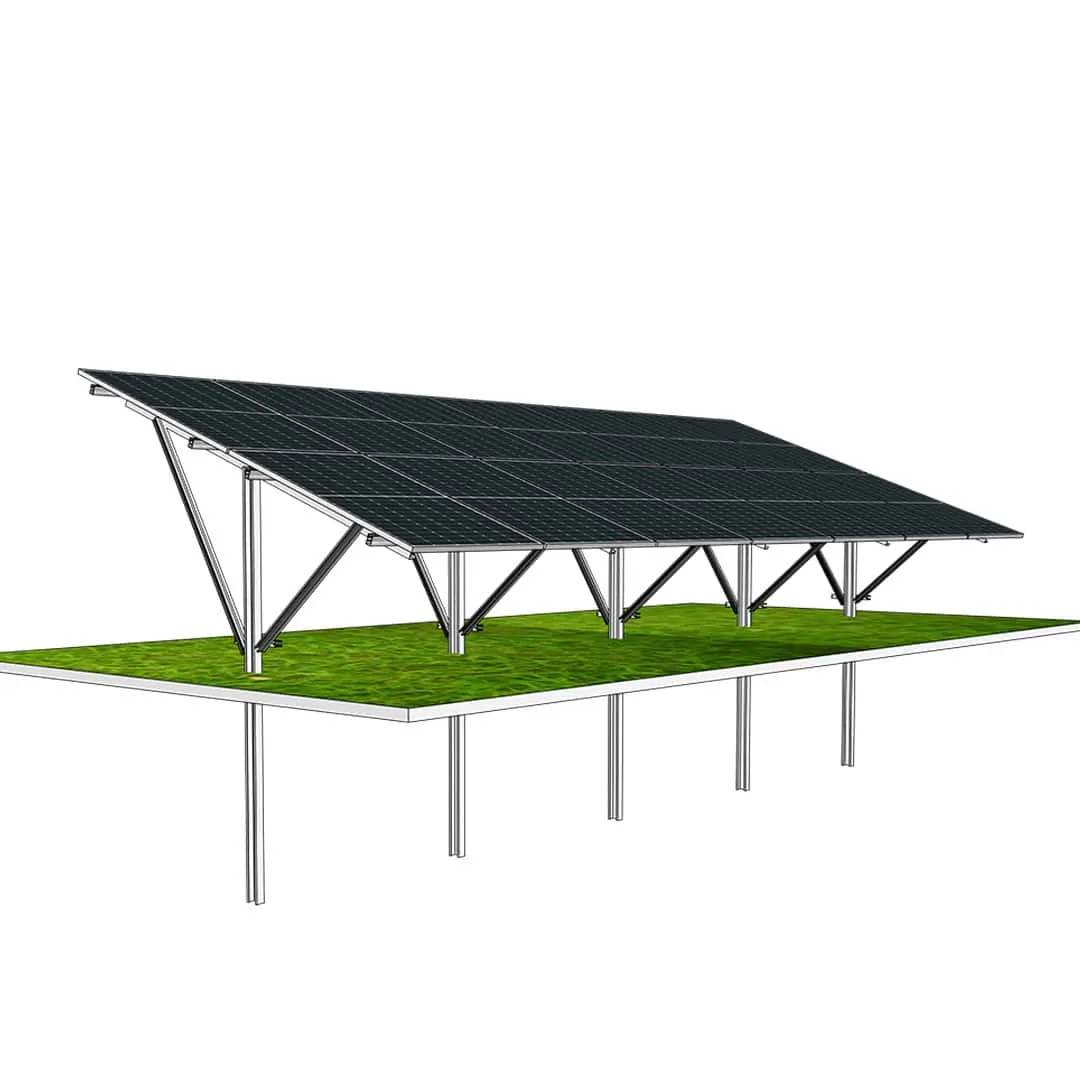

The Solar panel ground mounting system 2P-7 is a durable and scalable solution for ground-mounted photovoltaic projects. Designed with two portrait columns, it supports 14 panels per structure, making it well-suited for medium to large-scale installations. The hot-dip galvanized steel frame provides excellent corrosion resistance, stability, and long-term reliability in diverse climates. Its modular design maximizes land use efficiency, simplifies cable routing, and ensures straightforward maintenance access. This system is ideal for solar parks, agricultural energy projects, and industrial applications where performance, cost-effectiveness, and long service life are key priorities.
Capacity: 14 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven poles
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Solar panel ground mounting system 2P-7
The Solar panel ground mounting system 2P-7 is a reliable solution developed by Pro Solar Tech to meet the growing demand for scalable, durable, and cost-efficient solar infrastructure. Configured with two portrait columns per structure and a total of fourteen modules, the system is designed for use in solar parks, agricultural co-location projects, and industrial-scale renewable energy facilities. Its robust construction ensures long-term stability, while the modular layout allows EPC contractors and developers to adapt installations to various land configurations with efficiency and precision.
The framework is manufactured from hot-dip galvanised steel, providing excellent protection against corrosion and mechanical stress. This ensures consistent structural integrity across decades of operation, even under harsh weather conditions. The portrait orientation of the modules supports efficient use of available land while maintaining neat cable routing and convenient maintenance access. Installation is simplified through prefabricated components, pre-drilled fastening points, and standardised assembly methods that shorten construction timelines and reduce labour costs.
For developers and investors, the 2P-7 system delivers an optimal balance between durability, energy yield, and cost-effectiveness. It ensures that renewable energy projects are not only technically robust but also economically attractive, reducing total cost of ownership while delivering consistent performance throughout their lifecycle.
Advantages of Solar panel ground mounting system 2P-7
- Optimised land utilisation with scalable configuration: The 2P-7 system accommodates fourteen modules in a dual-column portrait arrangement, making efficient use of available ground area while maintaining flexibility for project scaling. This design allows installations to be easily expanded in modular increments, making it suitable for projects of different sizes, from medium-scale community solar farms to large industrial parks. For developers, the scalability ensures predictable planning, efficient deployment, and long-term adaptability to future capacity increases.
- Durability through galvanised steel construction: Built from hot-dip galvanised steel, the 2P-7 system provides excellent resistance to corrosion, weathering, and environmental stress. Reinforced by bracing members and secured with high-strength bolts, the structure maintains alignment and stability even in demanding conditions such as strong winds or heavy snow loads. This durability reduces maintenance costs and extends the operational lifespan of the system. For investors, it guarantees predictable energy production and a secure return on investment across decades of operation.
- Simplified installation and maintenance access: The modular construction of the 2P-7 system enables quick and efficient assembly. With pre-fabricated elements, standardised connections, and pre-drilled mounting points, installation crews can complete tasks with reduced labour hours and minimal risk of error. Once operational, the system offers streamlined cable routing and accessible panel arrangements, making inspections, cleaning, and module replacement straightforward. This design minimises downtime and ensures consistent output, providing operators with reliable, low-maintenance performance over the project lifecycle.
- Cost-effective performance for large-scale projects: The 2P-7 system is engineered to deliver a high level of reliability and efficiency while keeping costs under control. By combining robust construction with simplified assembly and low maintenance requirements, it reduces the total cost of ownership for solar projects. This cost-effectiveness is particularly valuable for large-scale developments, where even small savings per unit translate into significant financial advantages. For stakeholders, the 2P-7 system provides a proven pathway to maximise both energy yield and project profitability.
Compatible photovoltaic panels
The Solar panel ground mounting system 2P-7 is optimised for standard large-format photovoltaic modules with dimensions of 2278 × 1134 × 30 mm. This ensures secure panel fixation, reliable long-term performance, and compatibility with high-efficiency modules from Tier 1 manufacturers. By aligning with widely available panel dimensions, the system gives developers flexibility in procurement and ensures that replacement modules remain accessible in the long term. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
14 panels/structure

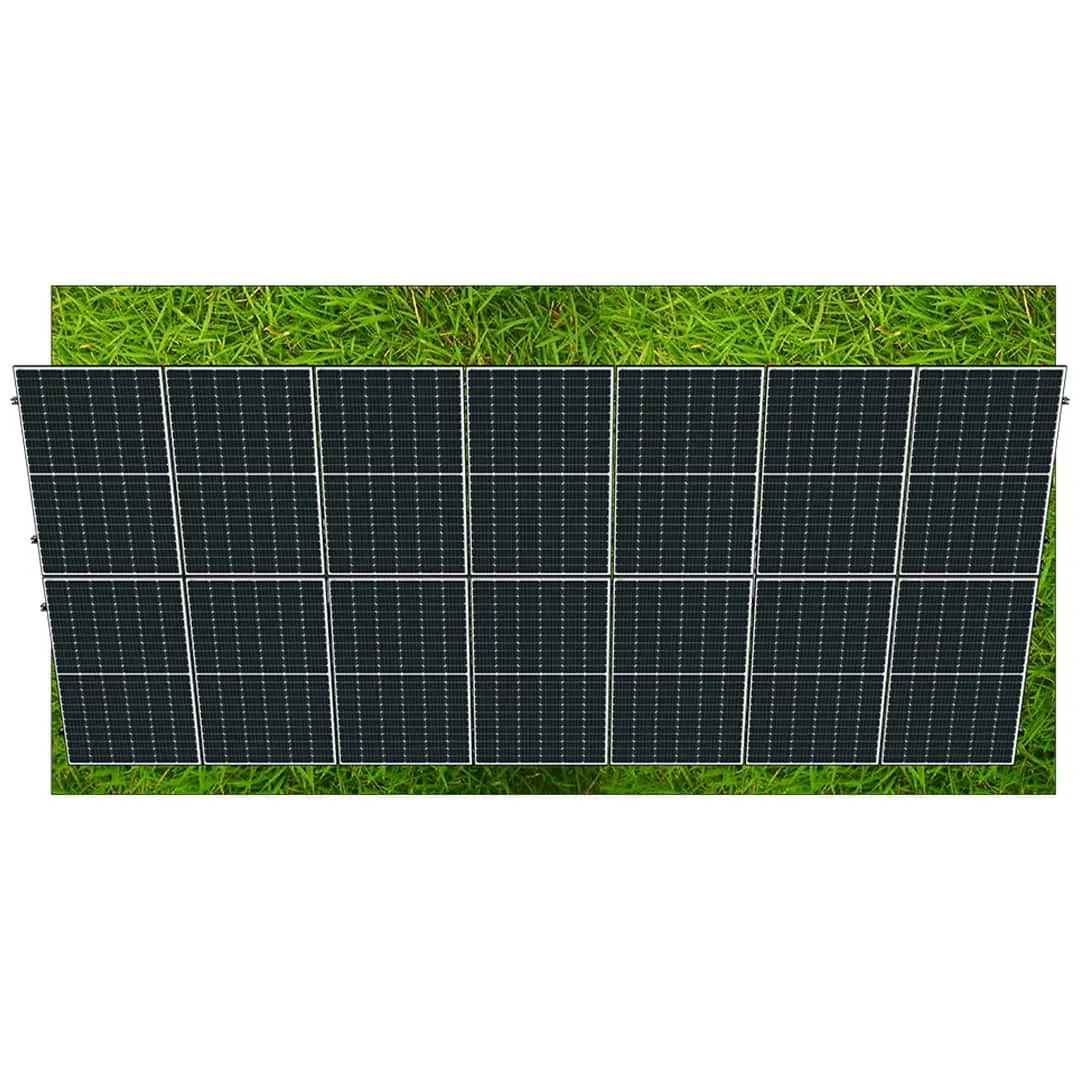

Each 2P-7 system supports fourteen photovoltaic modules arranged in two portrait columns. With panel dimensions of 2278 × 1134 × 30 mm, this configuration balances energy density, structural stability, and efficient land coverage. It is a practical solution for medium to large-scale projects that require predictable energy yield and operational efficiency.
Foundation system
Driven poles – a secure and cost-effective foundation method that ensures strong anchoring, rapid installation, and long-term reliability under diverse soil and site conditions.
System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
