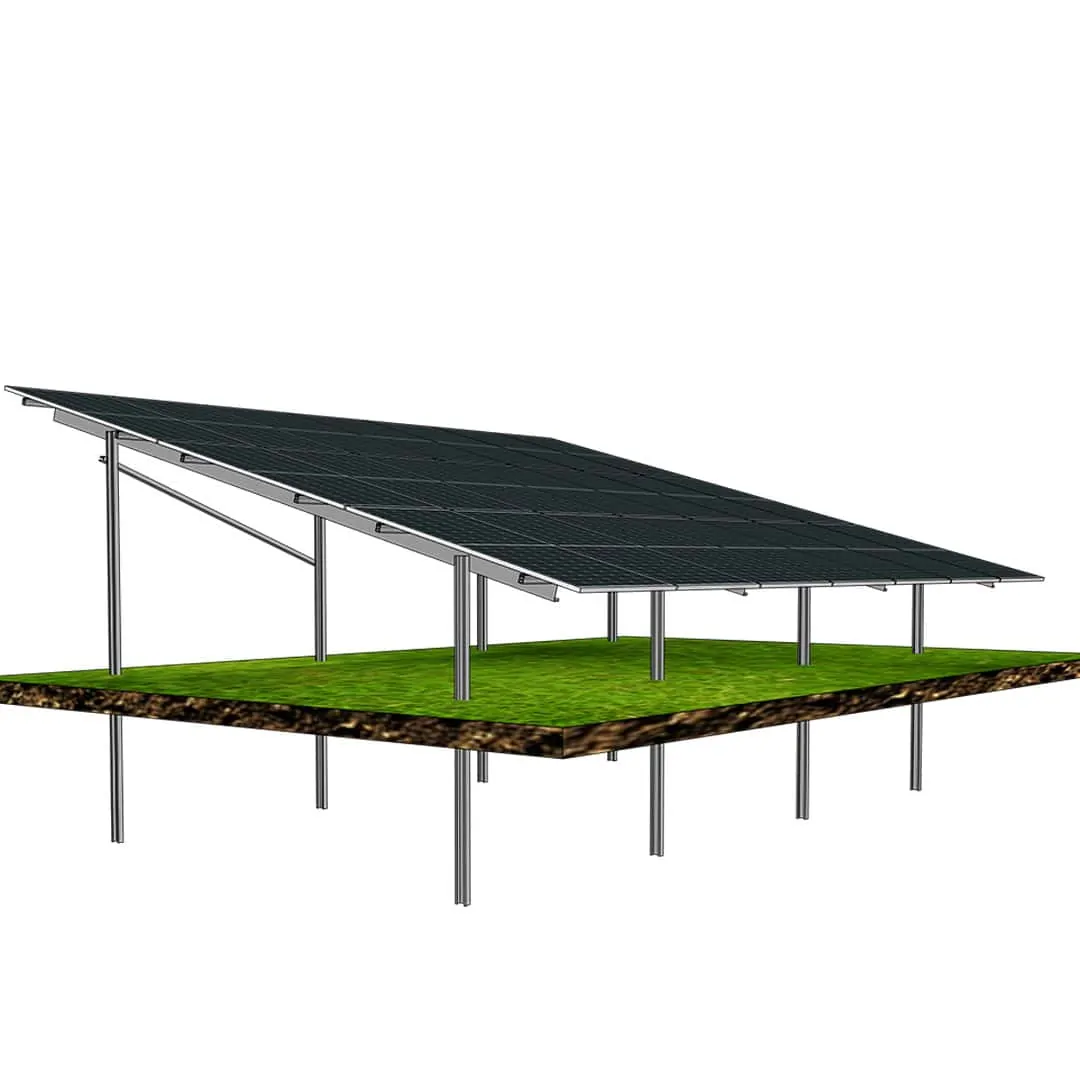

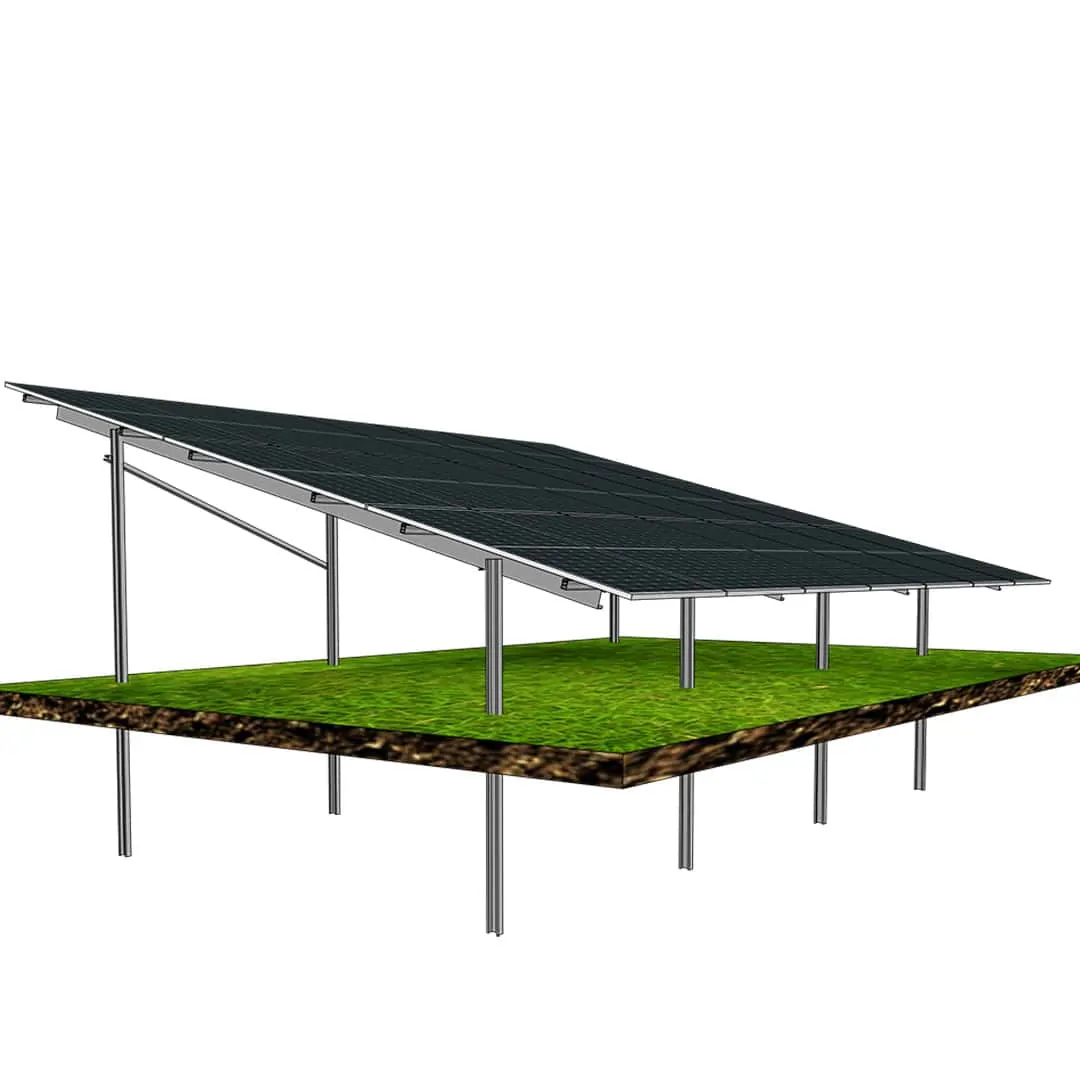

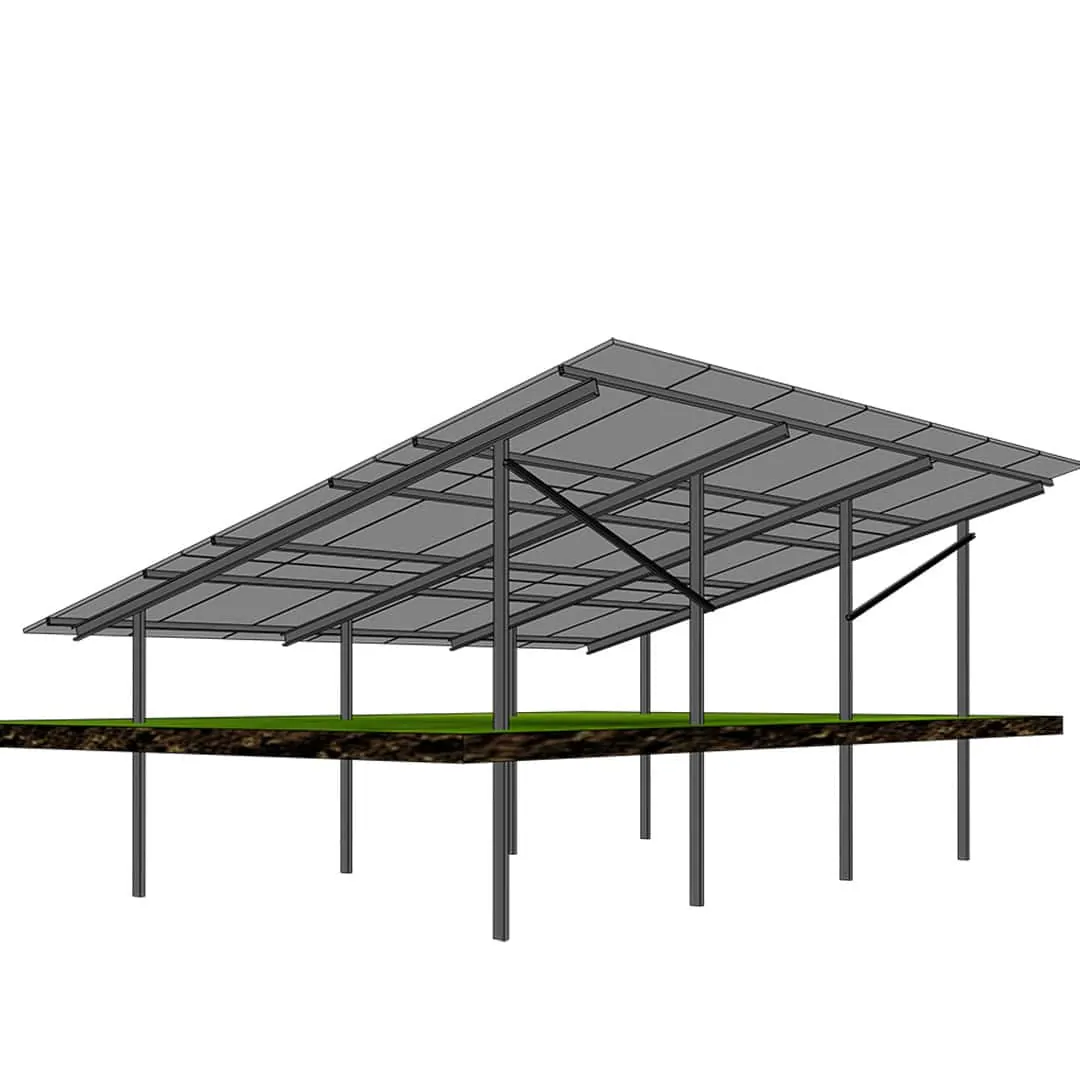

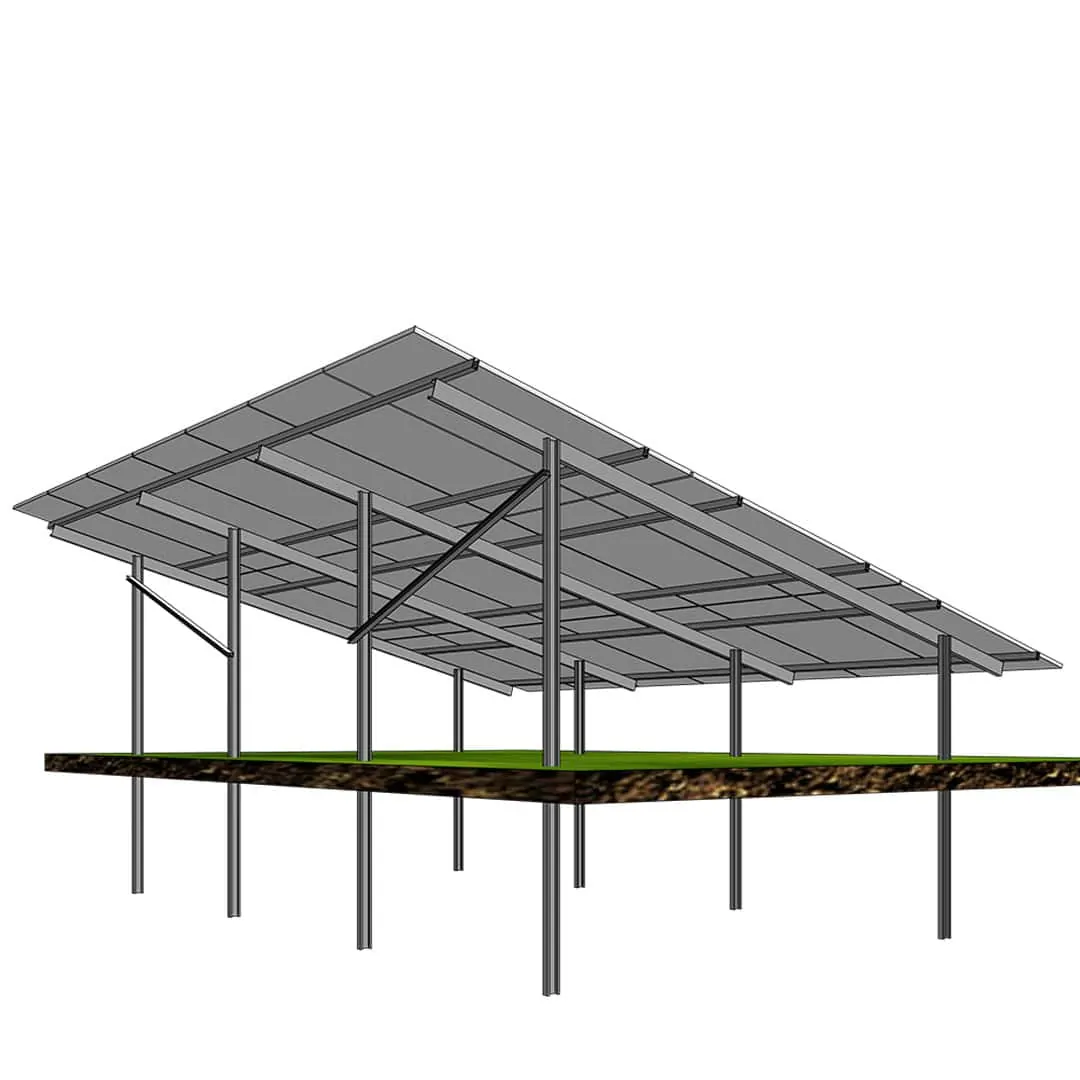

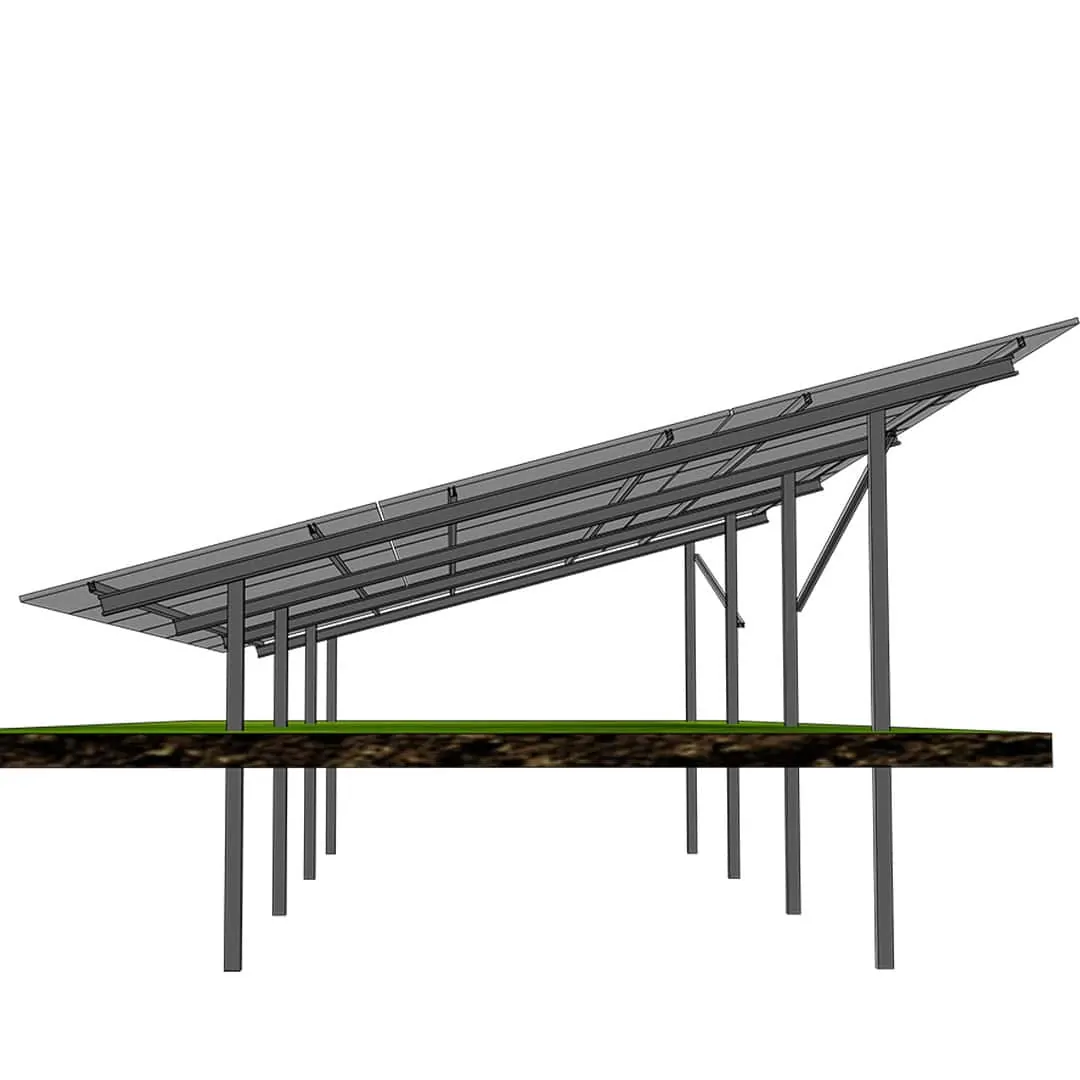

Ground mounted solar panel kits 3P-7
The Ground mounted solar panel kits 3P-7 is a robust, scalable mounting solution engineered for dependable performance in utility, commercial, and agricultural projects. Its hot-dip galvanized steel structure delivers long-term corrosion resistance and high stability under wind and snow loads, while the three-column portrait layout keeps cable runs tidy and O&M straightforward. A modular design aligns easily across rows and arrays to streamline installation, reduce downtime, and support predictable energy yield over the project lifetime. Ideal for sites that demand durability and cost efficiency, this system accommodates higher string capacities per rack without compromising access for inspection, cleaning, or vegetation management.
Capacity: 21 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven poles
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted solar panel kits 3P-7
The Ground mounted solar panel kits 3P-7 is a high-performance mounting solution designed by Pro Solar Tech to support the increasing demands of modern photovoltaic projects. With three portrait columns accommodating twenty-one panels per structure, the system delivers strong energy density while maintaining ease of access for operations and maintenance. Its hot-dip galvanised steel framework ensures corrosion resistance, mechanical durability, and stability under demanding environmental conditions including high winds and heavy snow loads.
The 3P-7 system is particularly suitable for utility-scale solar farms, commercial projects, and agricultural co-location initiatives. By combining structural robustness with modular scalability, it enables developers and EPC contractors to streamline project execution while ensuring reliable long-term performance. Cable management is organised and accessible, reducing installation time and simplifying inspections, cleaning, and vegetation management around and beneath the structures.
With its modular layout, the 3P-7 system can be deployed in series across large arrays, providing predictable energy yield and efficient land utilisation. For investors, it offers a cost-effective balance between high capacity, reduced maintenance, and long lifecycle reliability. For operators, it represents a practical and proven choice that supports sustainable energy goals with economic efficiency.
Advantages of Ground mounted solar panel kits 3P-7
- High capacity with compact footprint: The 3P-7 system accommodates twenty-one panels per rack, arranged in three portrait columns, maximising energy output per structure. This high-density design reduces the number of foundations and support elements required per megawatt, lowering overall project costs. Despite its compact footprint, the system preserves accessibility for O&M, ensuring that vegetation management, inspections, and cleaning can be carried out without disrupting performance. For large solar parks, this combination of efficiency and practicality results in significant long-term savings and optimised land use.
- Structural strength and durability under harsh conditions: Manufactured from hot-dip galvanised steel and secured with class 8.8 high-strength bolts, the 3P-7 system is engineered for resilience. Reinforced with transverse purlins and bracing members, it withstands high wind speeds, snow accumulation, and temperature fluctuations without deformation. This durability ensures structural stability for decades, minimising replacement and repair costs. For investors, it offers confidence that the system will continue to deliver predictable energy output even under adverse conditions.
- Streamlined installation and predictable project execution: The modular design of the 3P-7 system allows for fast, efficient installation. Prefabricated elements and pre-drilled connection points enable EPC contractors to assemble racks quickly with reduced labour. This efficiency lowers construction timelines, reduces labour costs, and makes project scheduling more predictable. Once operational, the logical system layout simplifies inspections and repairs, reducing downtime and ensuring consistent energy generation throughout the system’s lifecycle.
- Cost efficiency and long-term value: By accommodating more panels per structure, the 3P-7 reduces the number of driven foundations, beams, and associated hardware required for each megawatt installed. This lowers initial capital costs while maintaining long-term durability. Combined with minimal maintenance requirements and extended service life, the system ensures a low total cost of ownership. For developers and investors, the result is a stronger return on investment and a reliable pathway to meet renewable energy targets at scale.
Compatible photovoltaic panels
The Ground mounted solar panel kits 3P-7 is optimised for large-format photovoltaic modules measuring 2278 × 1134 × 30 mm, which are widely used in commercial and utility-scale installations. This compatibility ensures secure fixation, long-term performance, and procurement flexibility across Tier 1 manufacturers. Supporting common module sizes also guarantees the availability of replacements over the lifecycle of the project. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
21 panels/structure

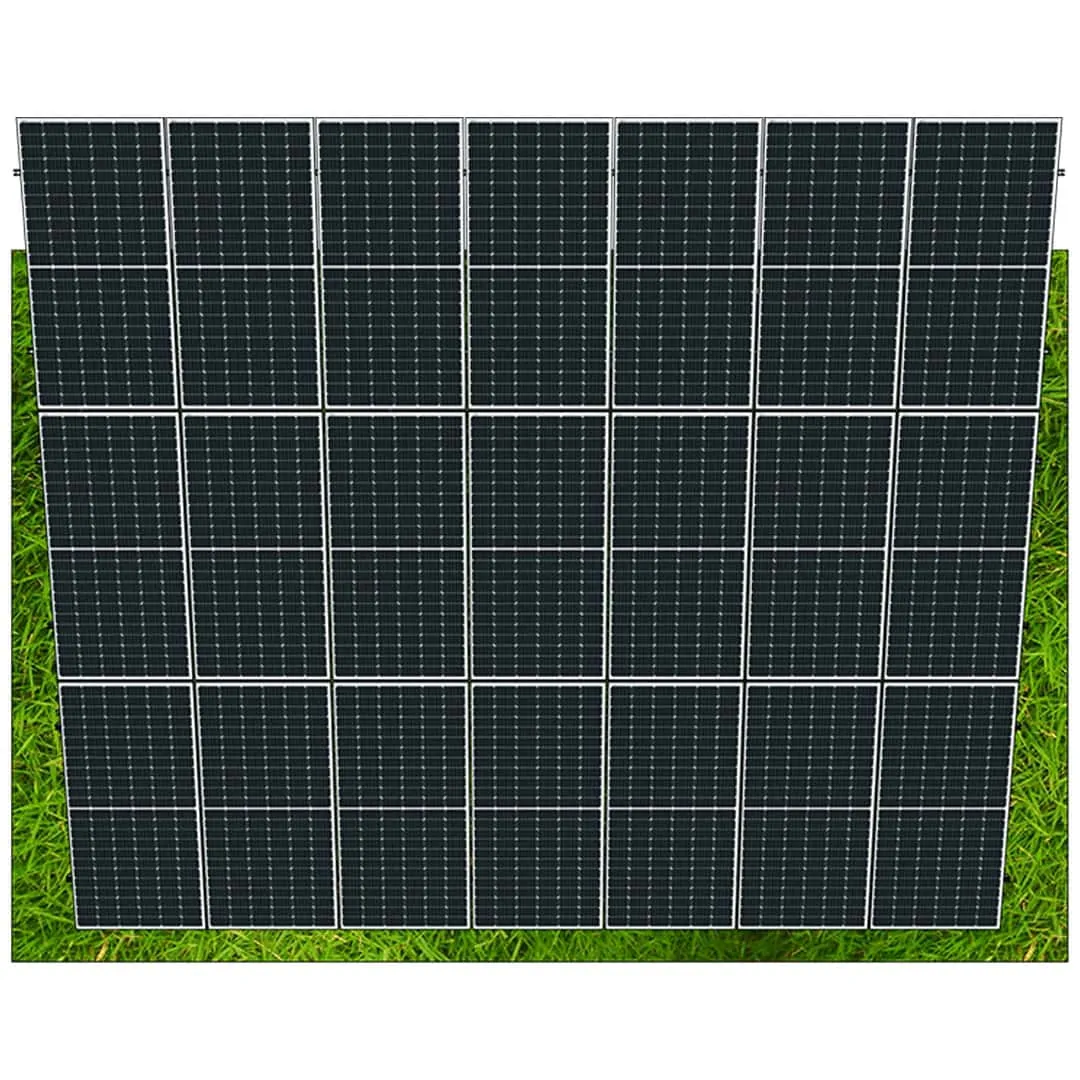

Each 3P-7 structure supports twenty-one photovoltaic modules in portrait orientation across three vertical columns. With panel dimensions of 2278 × 1134 × 30 mm, this configuration provides high energy density while maintaining accessibility for cleaning, inspections, and vegetation management.
Foundation system
Driven poles – a reliable and cost-effective foundation method that ensures strong anchoring and long-term durability across varied soil conditions, with rapid installation for large-scale deployments.
System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
