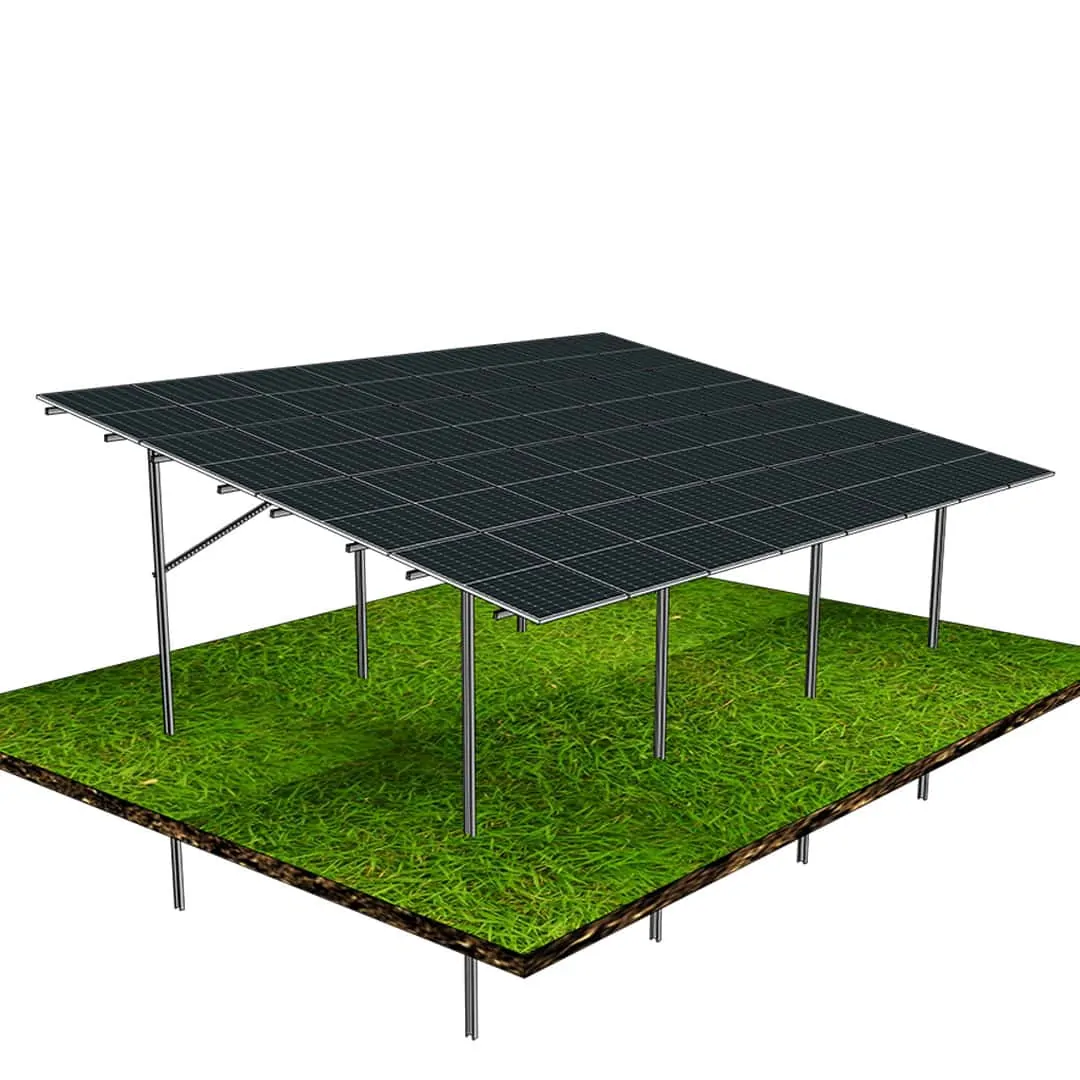

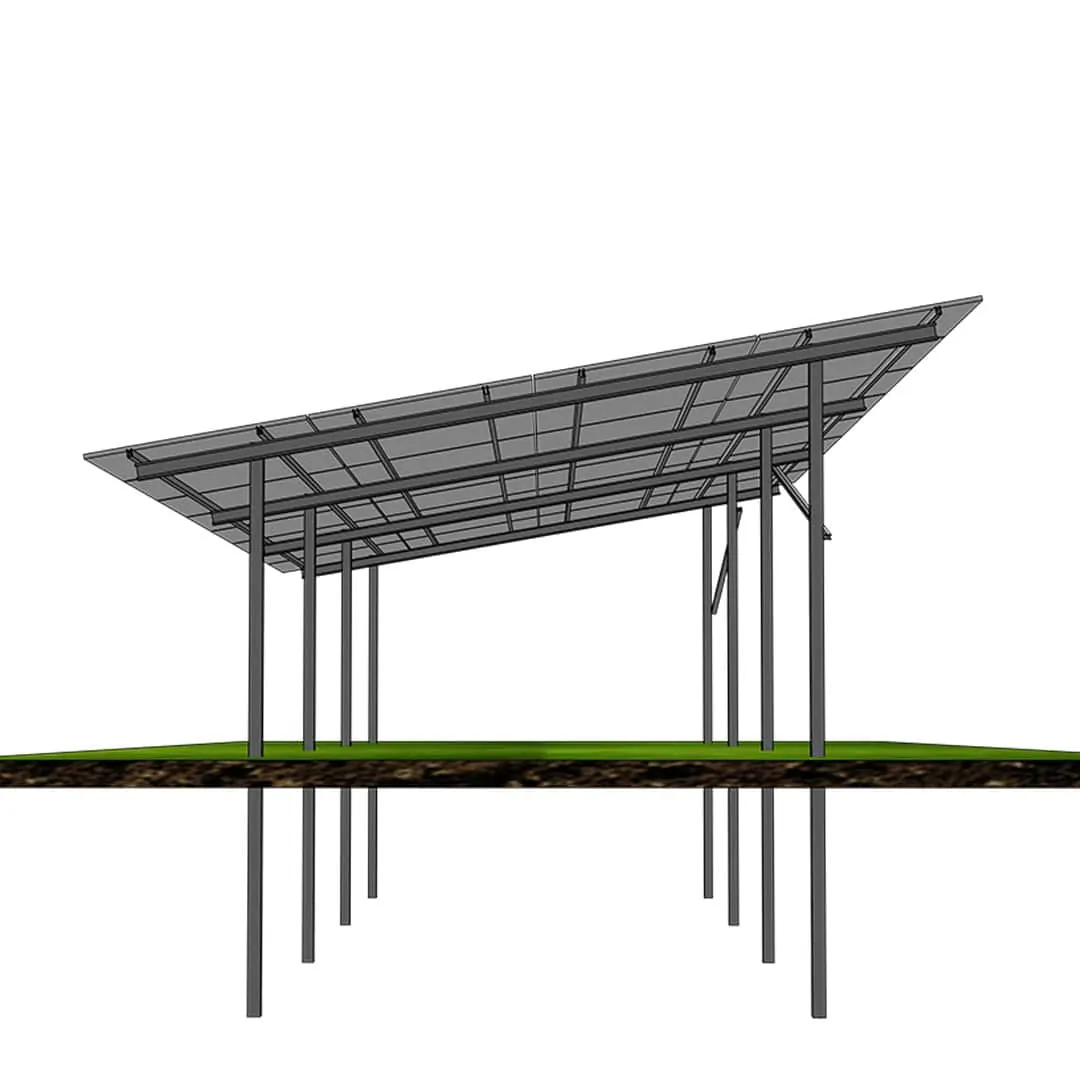

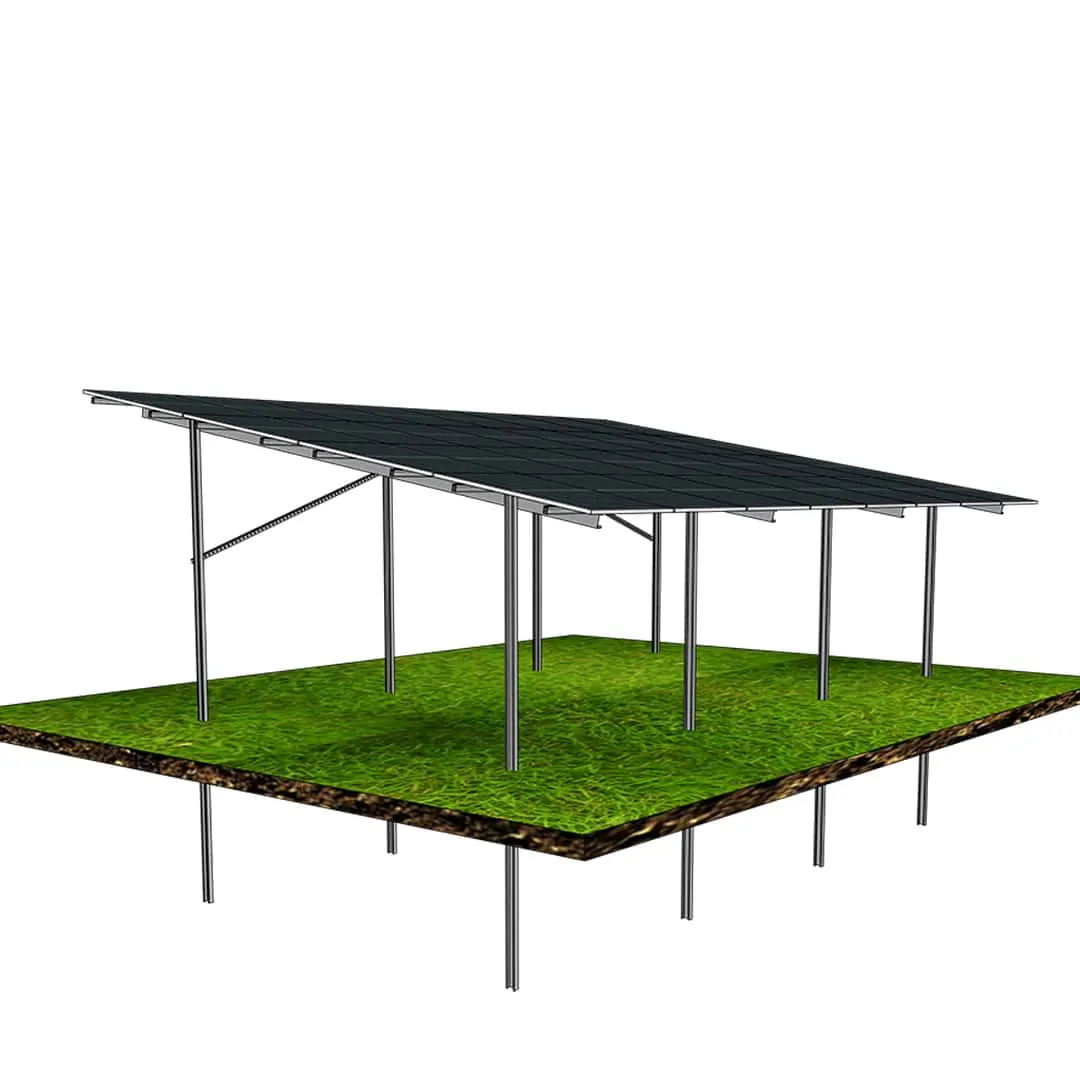

Ground mounted pv panels kit 4P-8
Built for utility-grade reliability and rapid deployment, this four-column ground-mount structure delivers high energy density with clean cable routing and straightforward O&M. Hot-dip galvanized steel members provide long-term corrosion resistance and stiffness under wind and snow loads, while the portrait layout preserves access aisles for vegetation control and cleaning. A modular geometry aligns neatly across rows and arrays, simplifying design, reducing BOS complexity, and accelerating installation. Well suited to commercial, agricultural, and industrial sites, the kit balances durability with cost efficiency to support predictable output, scalable capacity, and low lifetime maintenance in diverse soil and climate conditions.
Capacity: 32 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven poles
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted pv panels kit 4P-8
The Ground mounted PV panels kit 4P-8 is a large-format racking solution engineered by Pro Solar Tech to combine utility-grade reliability with scalable deployment. Designed with four portrait columns per structure, it accommodates thirty-two photovoltaic modules, maximising energy yield while maintaining service aisles for safe and efficient operation and maintenance. The system is ideally suited for utility-scale solar parks, agricultural co-location projects, and industrial facilities seeking high capacity, durability, and long-term cost efficiency.
Manufactured from hot-dip galvanised steel, the 4P-8 kit delivers strong corrosion resistance and mechanical stiffness under demanding environmental conditions, including high wind speeds and snow loads. Reinforced with bracing members and assembled with class 8.8 bolts, the structure guarantees long-term alignment and stability across decades of service life. Its modular geometry aligns seamlessly across rows and arrays, making it easy to design and scale projects efficiently while reducing installation time and balance-of-system (BOS) complexity.
For EPC contractors, the 4P-8 system offers predictable installation workflows, rapid on-site assembly with prefabricated components, and simplified cable routing. For developers and investors, it provides a proven, high-capacity structure that lowers total cost of ownership while delivering reliable performance in diverse soil and climate conditions.
Advantages of Ground mounted PV panels kit 4P-8
- High capacity per structure with efficient land use: The 4P-8 system supports thirty-two photovoltaic modules per rack, arranged in four portrait columns. This high-capacity configuration reduces the number of support posts, foundations, and structural elements required per megawatt, lowering BOS costs. Despite its scale, the layout preserves access aisles for vegetation control and maintenance, ensuring both efficiency and practicality. For large projects, this maximised energy density improves project economics while maintaining long-term serviceability.
- Robust construction for long-term reliability: Built from hot-dip galvanised steel and reinforced with purlins and bracing members, the 4P-8 system is designed to withstand decades of environmental stress. Class 8.8 high-strength bolts and aluminium clamps ensure secure fixation and long-term stability, even under heavy wind or snow loads. The use of corrosion-resistant materials extends the service life of the system, reducing the need for maintenance interventions and protecting the long-term return on investment.
- Simplified installation and streamlined operations: The modular geometry of the 4P-8 kit allows for fast, predictable assembly. With prefabricated elements, pre-drilled connection points, and standardised fasteners, installation crews can complete structures efficiently, lowering labour requirements and compressing project timelines. Once operational, integrated cable routing ensures clean layouts and easy accessibility, reducing the time and cost associated with inspections, panel cleaning, and module replacements.
- Cost efficiency and scalability: By combining high energy density with robust durability and simplified installation, the 4P-8 kit offers strong cost efficiency. Its modularity supports phased deployment, allowing developers to scale capacity according to demand. This flexibility, combined with reduced BOS costs and low long-term maintenance, results in a lower total cost of ownership. For investors, the 4P-8 system represents a secure and economically attractive pathway to achieve large-scale renewable energy capacity.
Compatible photovoltaic panels
The Ground mounted PV panels kit 4P-8 is optimised for modules measuring 2278 × 1134 × 30 mm, which are standard large-format panels widely available from Tier 1 manufacturers. This compatibility ensures secure fixation, reliable performance, and long-term procurement flexibility. Supporting standardised dimensions guarantees availability of replacements throughout the project lifecycle. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
32 panels/structure
Each 4P-8 structure supports thirty-two photovoltaic modules arranged in portrait orientation across four vertical columns. With module dimensions of 2278 × 1134 × 30 mm, this layout provides significant output while ensuring balanced structural design and straightforward accessibility for cleaning and maintenance.
Foundation system
Driven poles – a proven foundation method offering rapid installation, long-term anchoring strength, and cost-effective deployment across a wide range of soil conditions.
System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
