Solar panel ground mounting system 1P-10

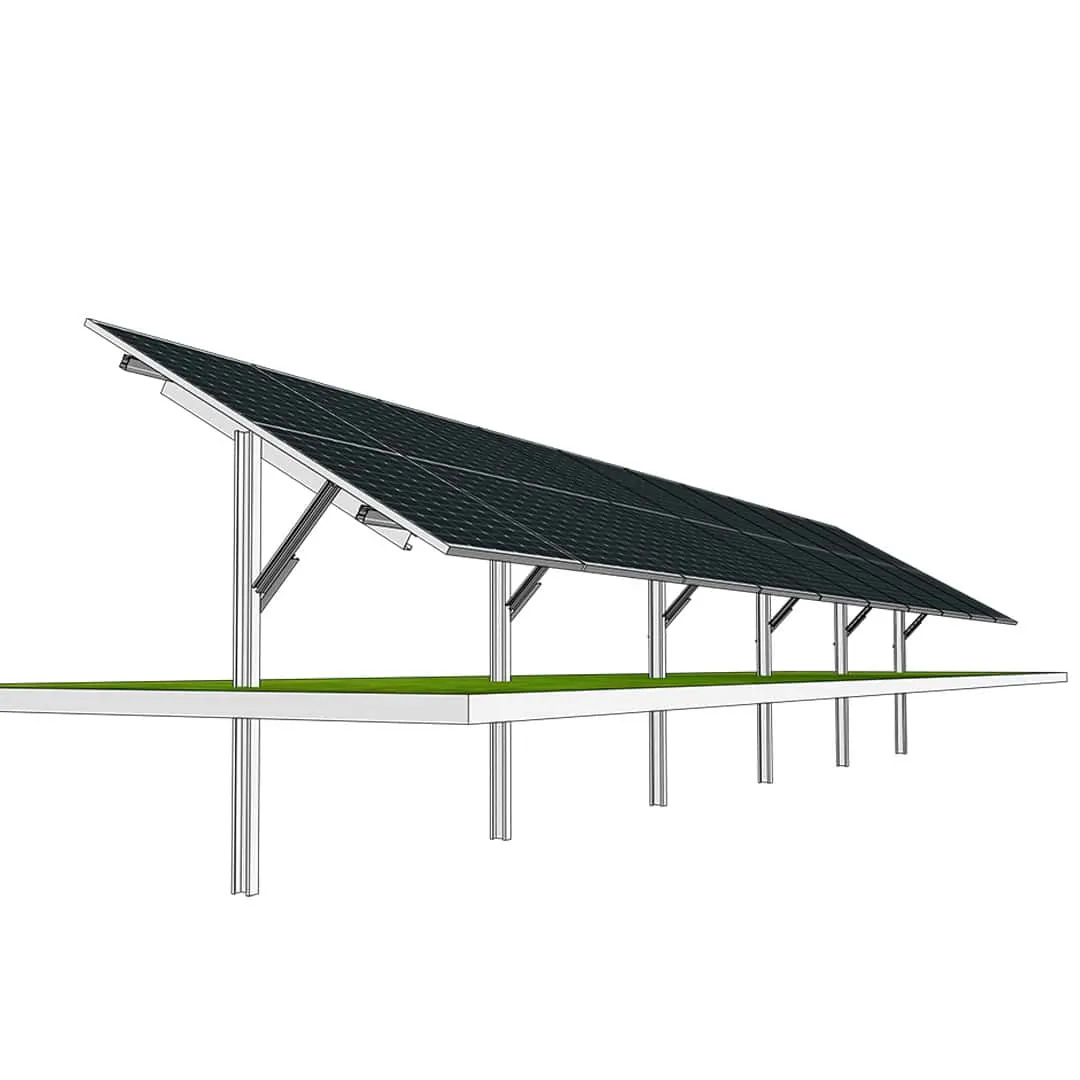

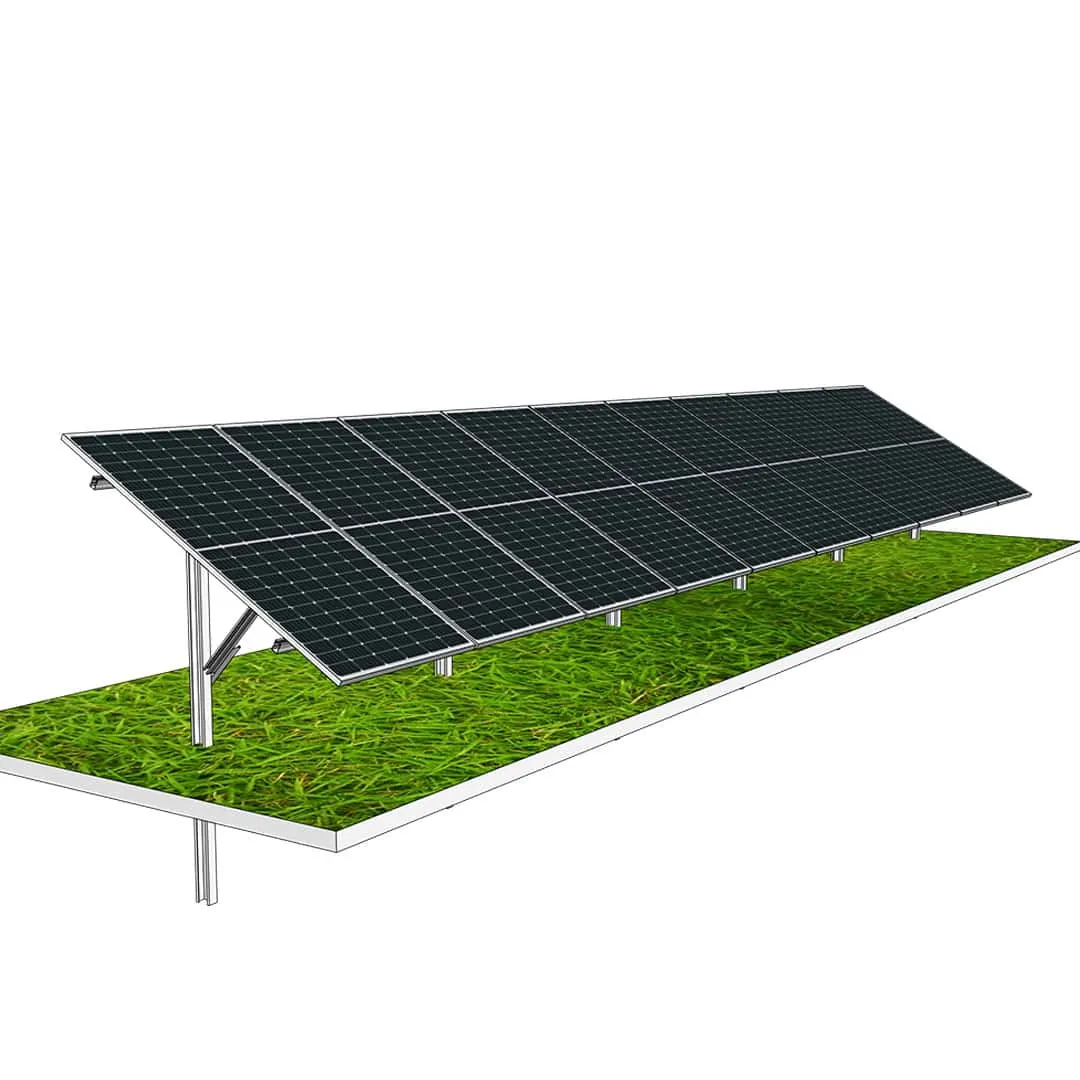

The Solar panel ground mounting system 1P-10 is a robust and flexible solution for ground-mounted photovoltaic installations. Designed with hot-dip galvanized steel components, it ensures long-lasting durability, excellent load resistance, and efficient assembly. Its portrait configuration maximizes land use efficiency, keeps cable routing organized, and allows straightforward cleaning and maintenance. Suitable for solar parks, agricultural co-location projects, and industrial applications, this system provides scalable performance, reliable stability, and cost-effective deployment for long-term renewable energy production.
Capacity: 10 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven or screw pile (depending on soil conditions)
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Solar panel ground mounting system 1P-10
The Solar panel ground mounting system 1P-10 is a durable and versatile solution engineered by Pro Solar Tech to support utility-scale, agricultural, and industrial photovoltaic projects. It combines robust hot-dip galvanised steel components with a practical design that ensures straightforward assembly, stable long-term operation, and resistance to environmental stress. By supporting ten modules in a portrait configuration, the system balances efficient land use with straightforward maintenance, making it suitable for large-scale solar parks as well as smaller decentralised projects.
The structure has been designed for easy adaptation to varying site conditions. Depending on soil characteristics, the foundation can be executed with driven piles or screw piles, both of which ensure stable anchoring and long service life. Cable routing is clean and efficient, enabling safe connections and minimising on-site clutter. Routine maintenance such as module cleaning or inspections is simple thanks to the accessible layout of the structure.
For developers, EPC contractors, and investors, the 1P-10 system provides an economically efficient option that supports scalability across projects of different sizes. With predictable installation times, low maintenance requirements, and compatibility with widely available photovoltaic modules, it represents a proven and cost-effective choice for long-term renewable energy generation.
Advantages of Solar panel ground mounting system 1P-10
- Efficient land use and modular scalability: The 1P-10 system is designed to make the most of available land resources. By placing modules in portrait orientation, it achieves an optimal balance between structural stability and ground coverage. With ten panels per structure, developers can plan installations in modular increments, making it easy to scale capacity to match project requirements. Whether used for solar parks, hybrid agricultural systems, or industrial rooftops converted to ground-mounted installations, the design ensures maximum energy yield per square metre, while keeping the layout clean and manageable for long-term operation.
- Durability through galvanised steel construction: The system is built from hot-dip galvanised steel, chosen specifically for its resistance to corrosion and structural wear over time. Each component—from support posts to purlins and beams—is engineered to withstand high wind loads, temperature fluctuations, and heavy snow conditions. By using class 8.8 bolts and aluminium clamps, the structure maintains secure connections and long-term integrity. This durability translates into reduced replacement costs, fewer structural interventions, and a high level of confidence for project owners who require dependable performance across decades of operation.
- Flexibility in foundation options: Unlike systems limited to a single anchoring method, the 1P-10 can be installed with driven piles or screw piles, depending on local soil conditions and project requirements. Driven piles are ideal for stable soils and rapid deployment, while screw piles provide secure anchoring in less compact terrains without the need for concrete foundations. This flexibility allows EPC contractors to select the most efficient foundation strategy for each project, optimising both cost and installation time while ensuring structural safety.
- Simplified installation and maintenance: The system has been developed to reduce on-site labour and simplify the installation process. Pre-drilled holes, modular beams, and clear connection points allow crews to assemble the system quickly and accurately. This efficiency reduces project timelines and associated labour costs. Once operational, the layout allows straightforward cable inspections, panel cleaning, and module replacement. Maintenance activities can be carried out without dismantling large parts of the system, ensuring minimal downtime. For operators and facility managers, this reliability results in lower operating expenses and consistent energy delivery.
Compatible photovoltaic panels
The Solar panel ground mounting system 1P-10 is optimised for modules measuring 2278 × 1134 × 30 mm, which are standard large-format panels widely used in commercial and utility-scale projects. This ensures secure fixation, reliable load transfer, and compatibility with high-efficiency modules from leading manufacturers. By supporting a common size category, the system provides flexibility in procurement, access to future module generations, and simplified replacement over time. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
10 panels/structure

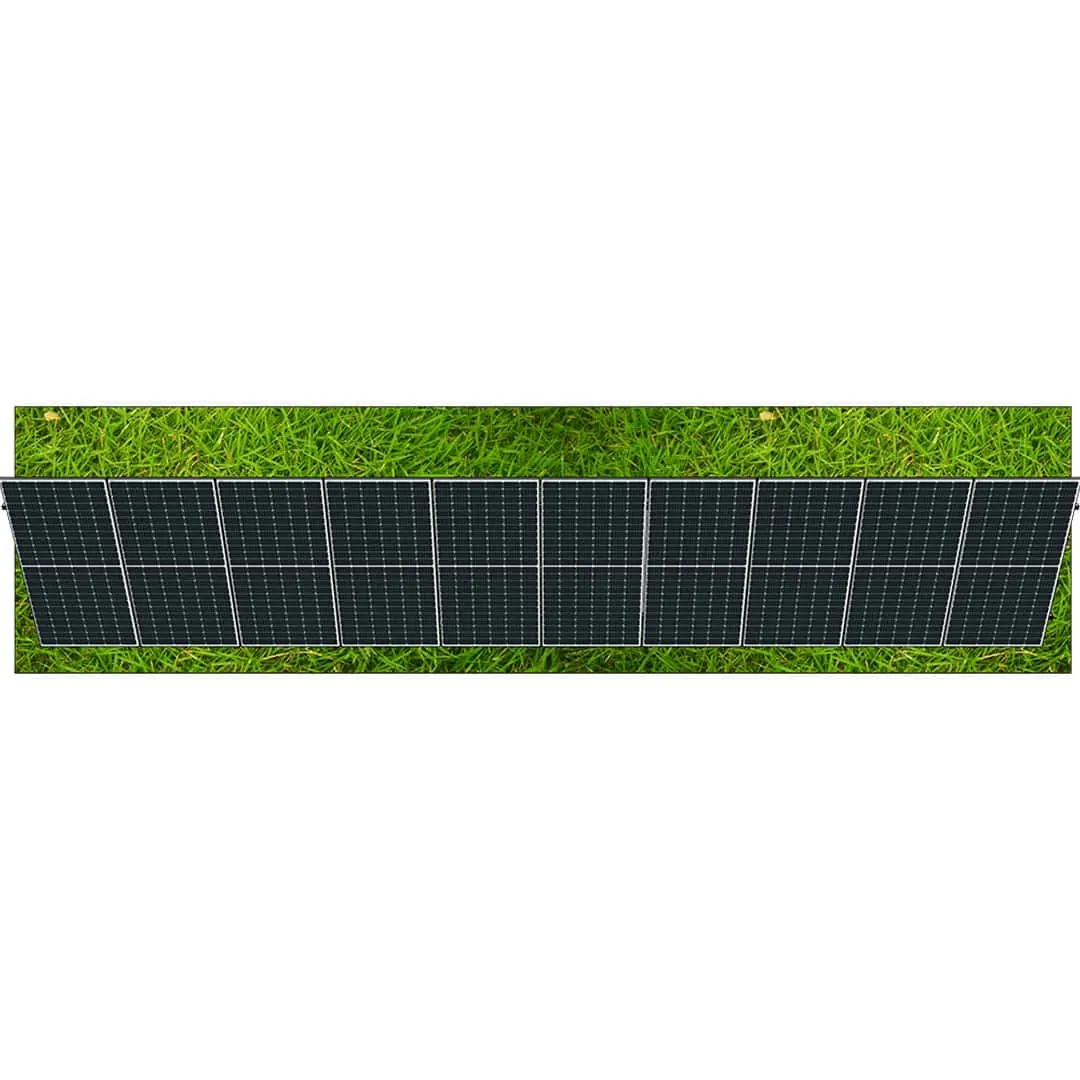

Each structure supports ten photovoltaic modules arranged in portrait orientation. With standard panel dimensions of 2278 × 1134 × 30 mm, the layout ensures efficient energy production, compact ground coverage, and reliable accessibility for cleaning and inspection. This configuration offers a balanced compromise between generation capacity and system stability, making it suitable for projects of varying scales.
Foundation system
Driven or screw pile (depending on soil conditions) – both options are designed to ensure secure anchoring, long-term stability, and adaptation to diverse ground conditions without the need for complex or costly foundations.

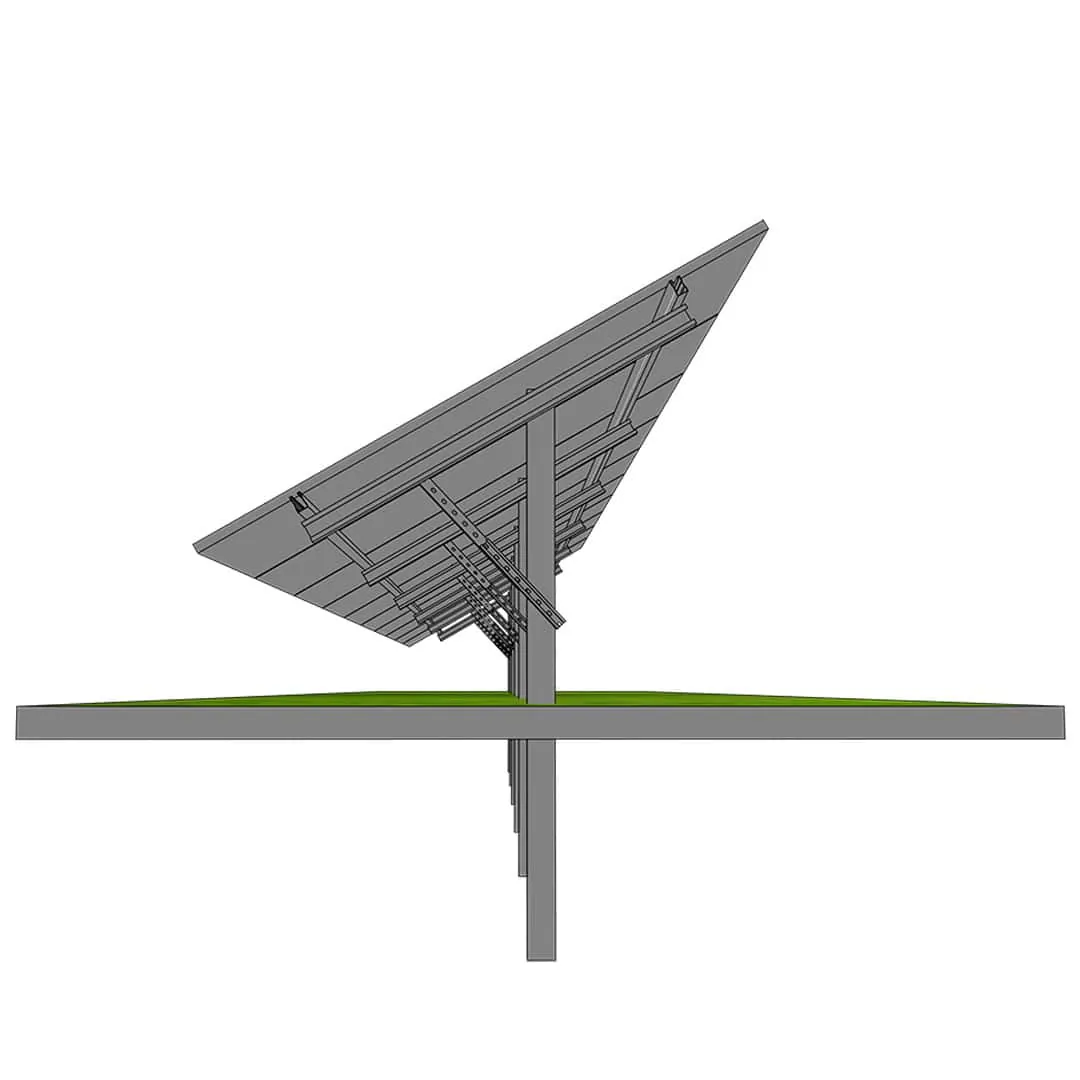

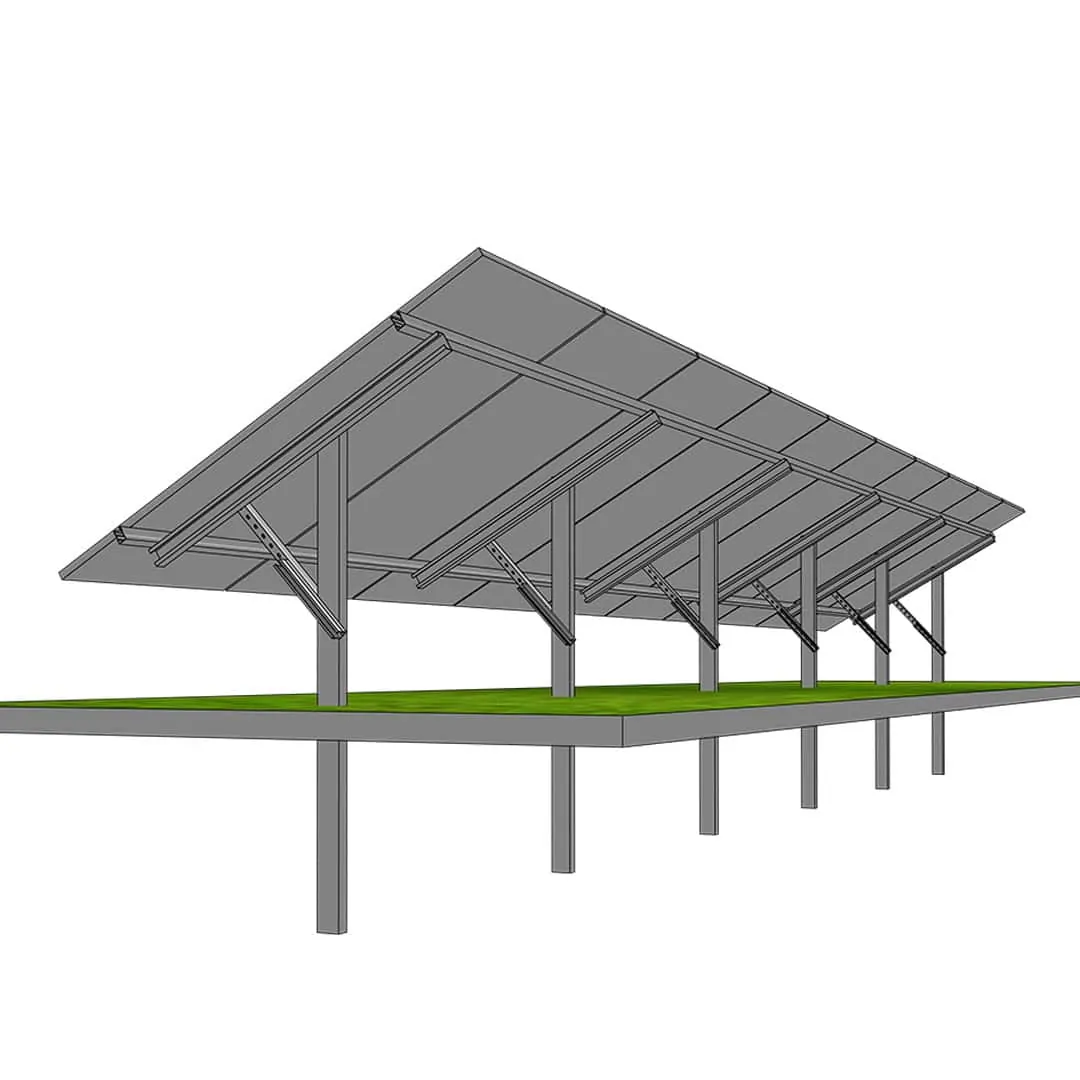

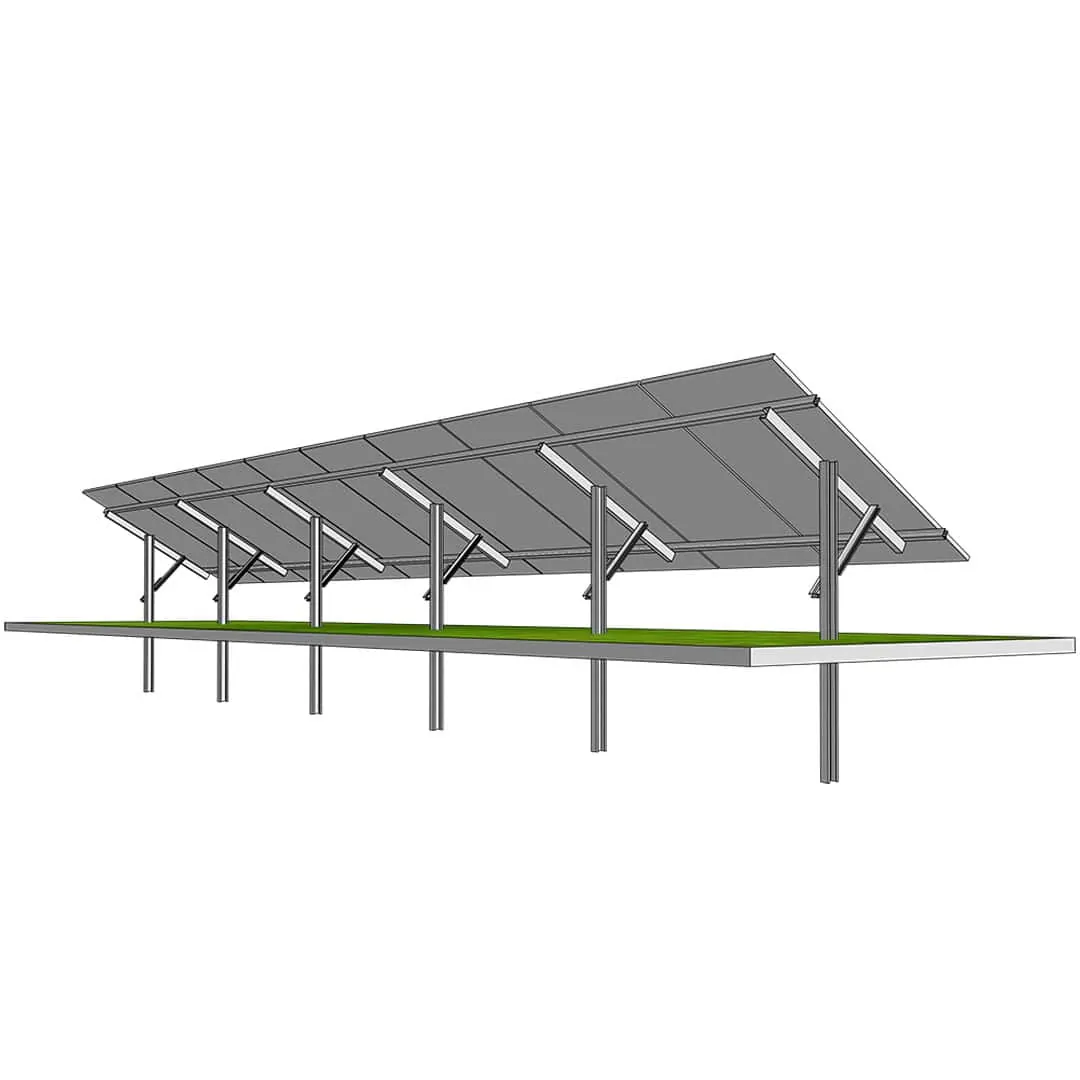

System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
