Ground Mount Systems Agrivoltaics PV

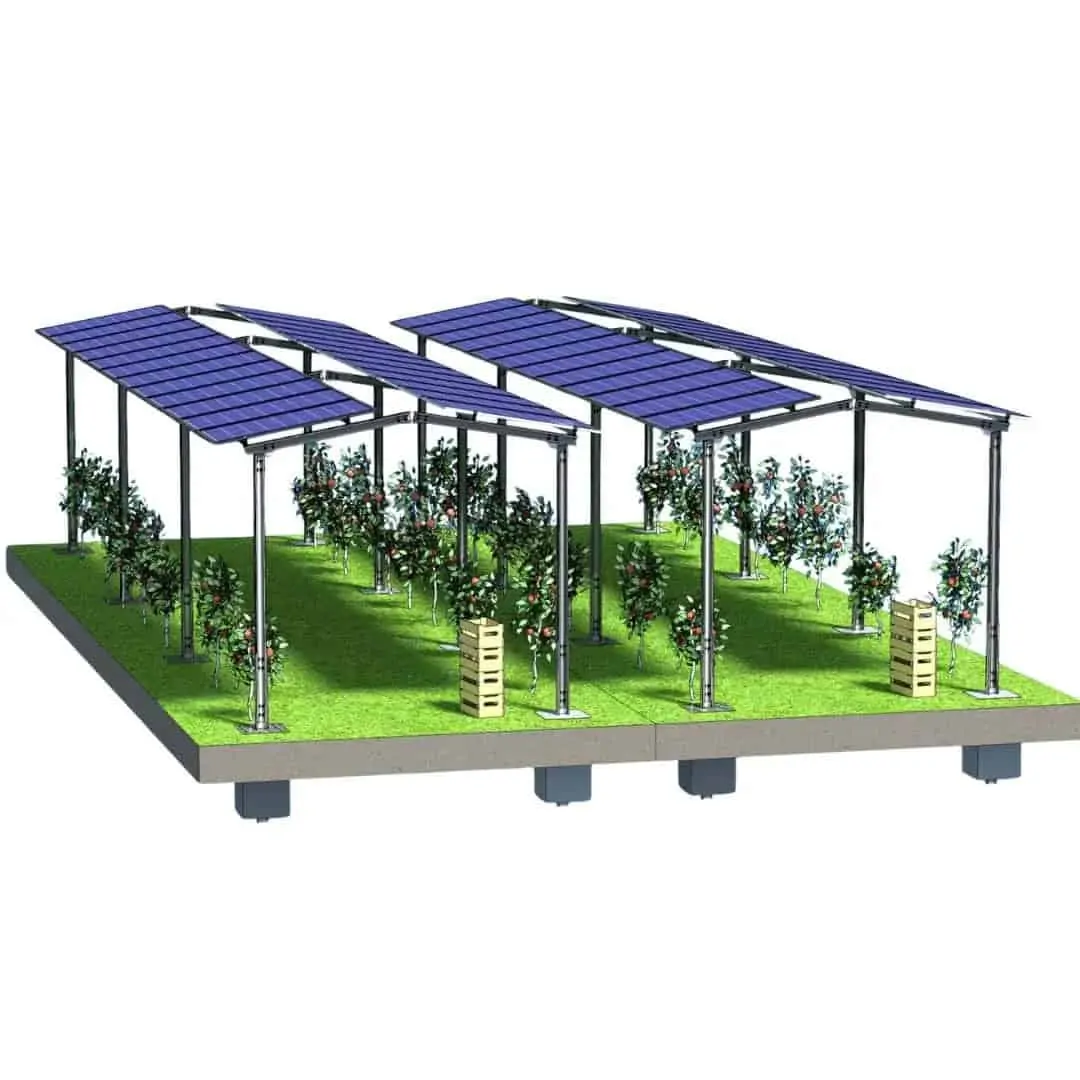

The Agrivoltaics PV ground mount system is specially engineered for solar-agriculture integration, combining energy production with crop protection. Its canopy-style structure, supported by two galvanized steel poles and cross beams, provides partial shading for crops while ensuring efficient photovoltaic performance. The design is optimized for farming environments, allowing machinery to operate underneath while maintaining structural resilience. With a tilt angle range of 6°–10°, the system balances sunlight capture and shading requirements. The galvanized steel profiles also double as integrated cable trays, significantly reducing installation costs. This intelligent and durable construction ensures long-term reliability with snow, wind, and seismic resistance, making it ideal for agricultural land and large-scale solar farms.
Capacity: compatible with any photovoltaic panel type; customizable based on project design
Foundation system: galvanized steel poles driven into the ground (rammed foundation, depth adjusted per geotechnical study)
Kit includes
- 2 galvanized steel poles (support posts)
- Cross beams and purlins designed for canopy structure
- Integrated profiles functioning as cable trays for 6 mm² DC solar cabling
- Bracing members for reinforcement
- High-strength galvanized bolts and clamps for panel fixation
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mount systems Agrivoltaics PV
The Ground Mount Systems Agrivoltaics PV is a purpose-built canopy structure designed to combine renewable energy generation with productive agricultural land use. Unlike standard ground-mounted racking, this system creates a shaded area beneath the solar modules, allowing crops, orchards, and livestock to coexist with photovoltaic installations. By supporting food and energy production on the same land, it delivers an innovative response to the dual challenges of sustainability and resource efficiency. Constructed from S235-S355 galvanized steel with ZN 275 coating, the structure guarantees durability, resistance to corrosion, and long service life even in harsh conditions. With its modular design, rapid assembly, and smart integration of cable trays into the purlins, the system minimizes installation time and electrical costs. The Agrivoltaics PV structure can be deployed on virtually any type of terrain, using a ramming foundation method determined by geotechnical surveys. Offering delivery within 15 days and compatibility with any photovoltaic module type, it is an excellent choice for developers and agricultural operators seeking to maximize land value while meeting sustainability targets.
Advantages of the Ground Mount Systems Agrivoltaics PV
- Fully compatible with all panel types: Designed with universal clamping solutions, the system supports photovoltaic modules of various sizes and thicknesses. This flexibility allows developers to choose from a wide range of suppliers, ensuring procurement efficiency and adaptability to future technological upgrades without redesigning the entire structure.
- Ideal for agricultural land without concrete foundations: Using a ramming-based foundation system, the Agrivoltaics PV structure eliminates the need for concrete works. This preserves soil fertility, reduces environmental impact, and allows farmland to remain usable throughout the project’s lifetime. At decommissioning, the land can be fully restored, making the system especially suitable for long-term agricultural use.
- Fast delivery and efficient installation: With a delivery time of only 15 days and a streamlined installation process, the Agrivoltaics PV system significantly reduces project timelines. Pre-drilled, standardized elements simplify assembly and minimize errors, reducing labor costs and accelerating time to grid connection. For EPCs and developers, this translates into faster project execution and quicker revenue generation.
- Certified and tested for European conditions: The structure is certified for use across Europe, complying with relevant engineering and safety standards. It is designed to withstand snow loads up to 300 kg/m², wind pressures up to 70 kPa/m², and seismic ground accelerations up to 0.34 g. These parameters ensure resilience against diverse climatic conditions found across European regions, guaranteeing long-term performance and security for investors, farmers, and insurers alike.
- Integrated cable management for lower costs: A unique feature of the Agrivoltaics PV system is its purlins, which double as cable trays. This allows direct routing of 6 mm² DC solar cables, eliminating the need for additional metallic cable supports. By integrating this functionality, the system reduces electrical installation costs, simplifies maintenance, and enhances overall site organization.
Capacity
The Agrivoltaics PV canopy system supports a flexible number of panels, depending on module size and row length, and can be adapted for any commercial photovoltaic panel model.
Compatible photovoltaic panels
This system is compatible with all photovoltaic modules, regardless of size or supplier. It can be customized to match project-specific panel dimensions, ensuring complete flexibility for developers and agricultural users.
System components
- 2 support poles: Heavy-duty galvanized steel columns that anchor the structure into the ground, designed for stability and minimal land disruption.
- Main beams: Longitudinal beams that distribute structural loads evenly and connect the support poles, ensuring rigidity and proper module alignment.
- Cross purlins with integrated cable tray function: Transverse members engineered to hold solar panels while also serving as built-in cable trays for 6 mm² DC cables. This dual-purpose design cuts installation costs and simplifies site management.
- Bracing members: Diagonal reinforcements that provide additional rigidity, preventing torsional movement and keeping the canopy stable during high wind or seismic events.
- Set of high-strength galvanized bolts (class 8.8): Industrial-grade fasteners that ensure secure, corrosion-resistant connections with long-term durability.
- Aluminum clamps: Mid and end clamps designed for universal module compatibility, ensuring safe and lasting fixation without damaging module frames.
We are direct manufacturers of agrivoltaic ground mount systems with large stocks ready for shipment. The Agrivoltaics PV canopy system provides a sustainable solution for dual land use, combining agricultural productivity with renewable energy generation. With its rapid delivery, modular adaptability, and compliance with European standards, it represents the ideal choice for modern agrivoltaic projects.
