Ground Mounted Solar Panels 1P-10
The Ground Mounted Solar Panels 1P-10 system is designed for small to medium-scale photovoltaic installations, offering a compact yet reliable solution. Its fully galvanized steel structure ensures outstanding corrosion resistance with minimal maintenance, guaranteeing long-term stability even in demanding environments. With tilt angle options of 20°, 23°, 25°, 28°, 30°, and 35°, the system provides maximum flexibility to optimize solar yield according to site-specific conditions. The modular architecture adapts easily to varied terrains, and the clamping system ensures precise panel alignment with simplified servicing. Designed for cost-effectiveness and safe operation, the 1P-10 combines ease of installation with structural robustness, making it ideal for developers seeking efficient ground-mounted solar support systems.
Capacity: 10 photovoltaic panels (2278 × 1134 × 30 mm)
Foundation system: galvanized steel poles driven 1000 mm into the ground or set in concrete piers
Kit includes
- 6 galvanized steel poles (support posts)
- 6 main beams
- 4 transverse purlins
- 2 bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground Mounted Solar Panels 1P-10

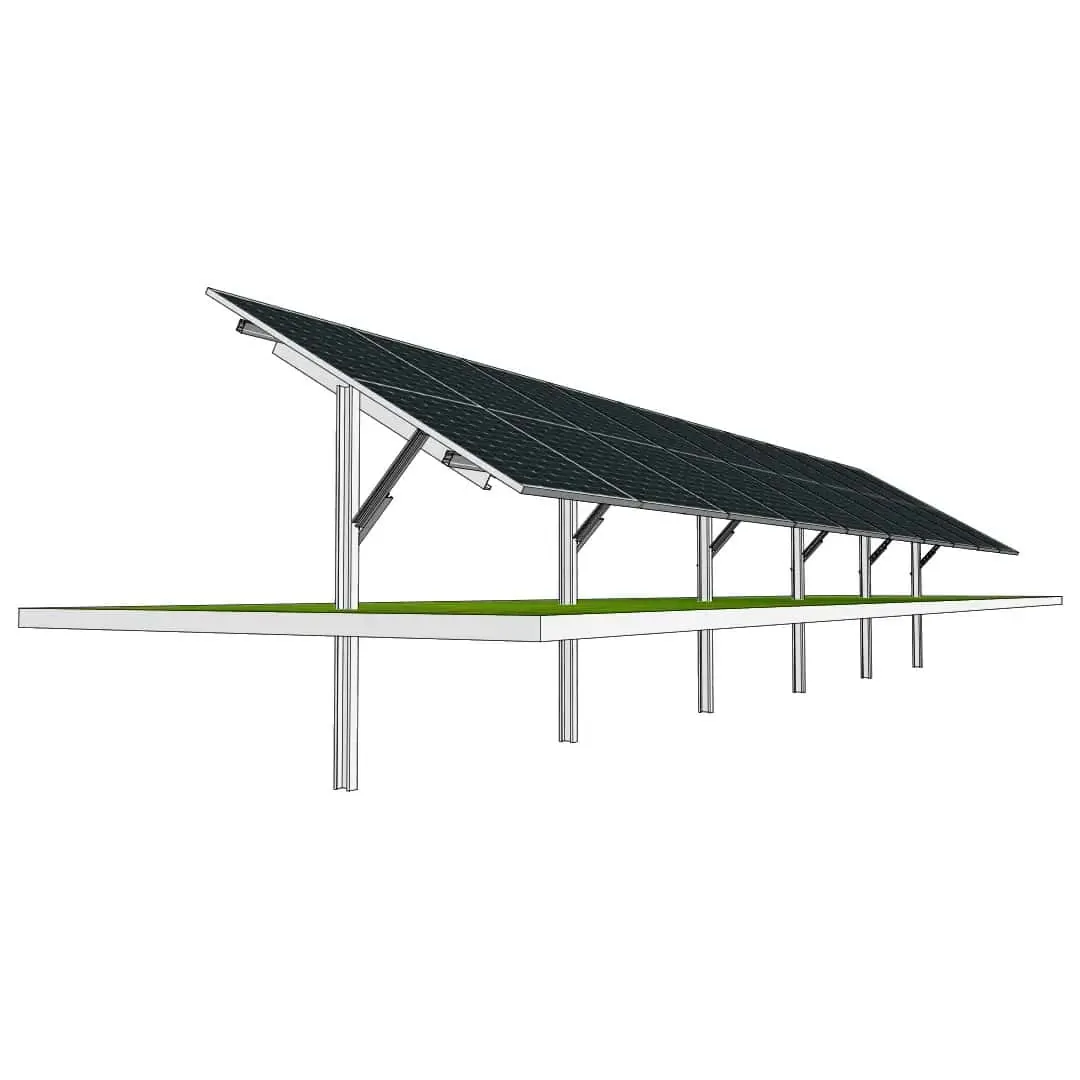

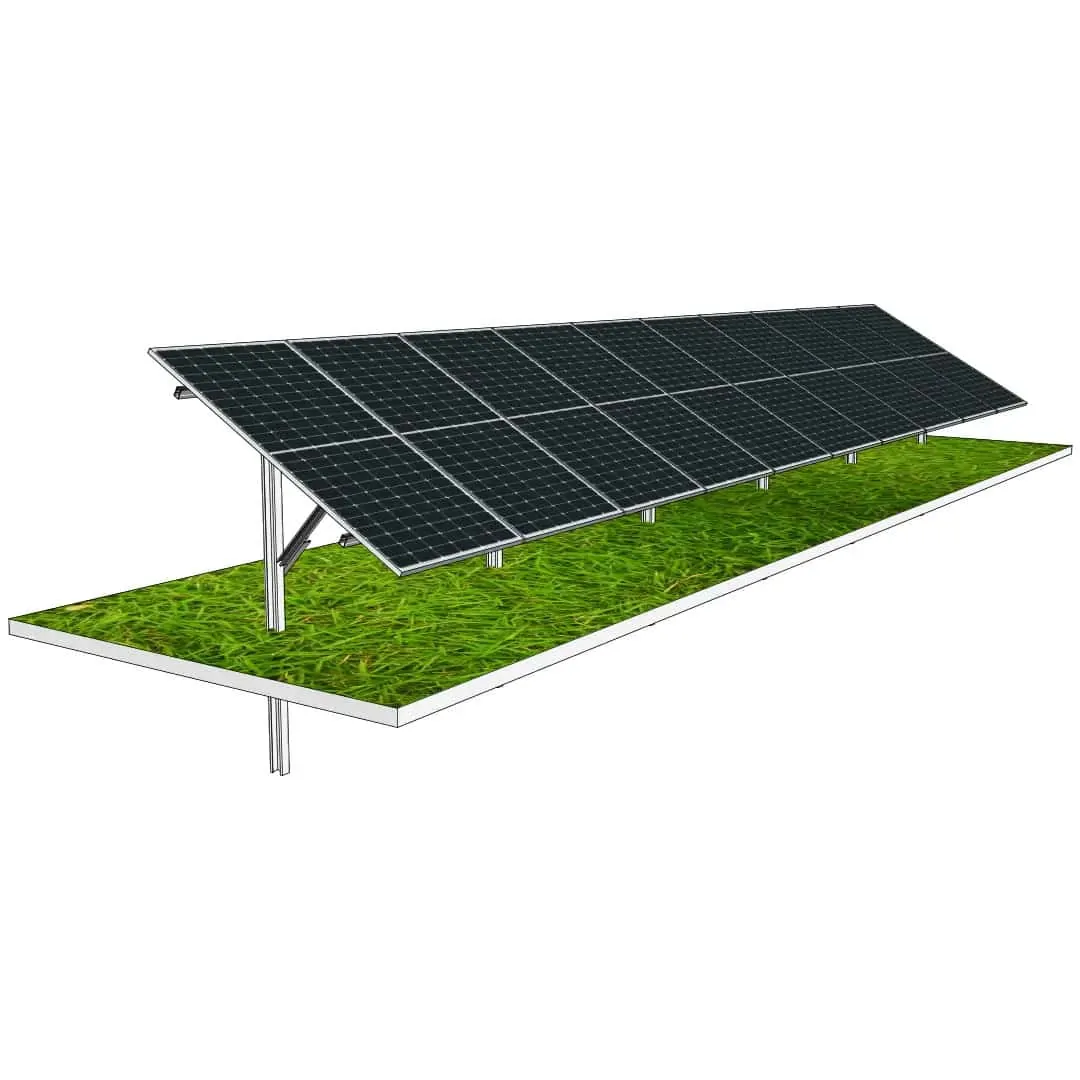

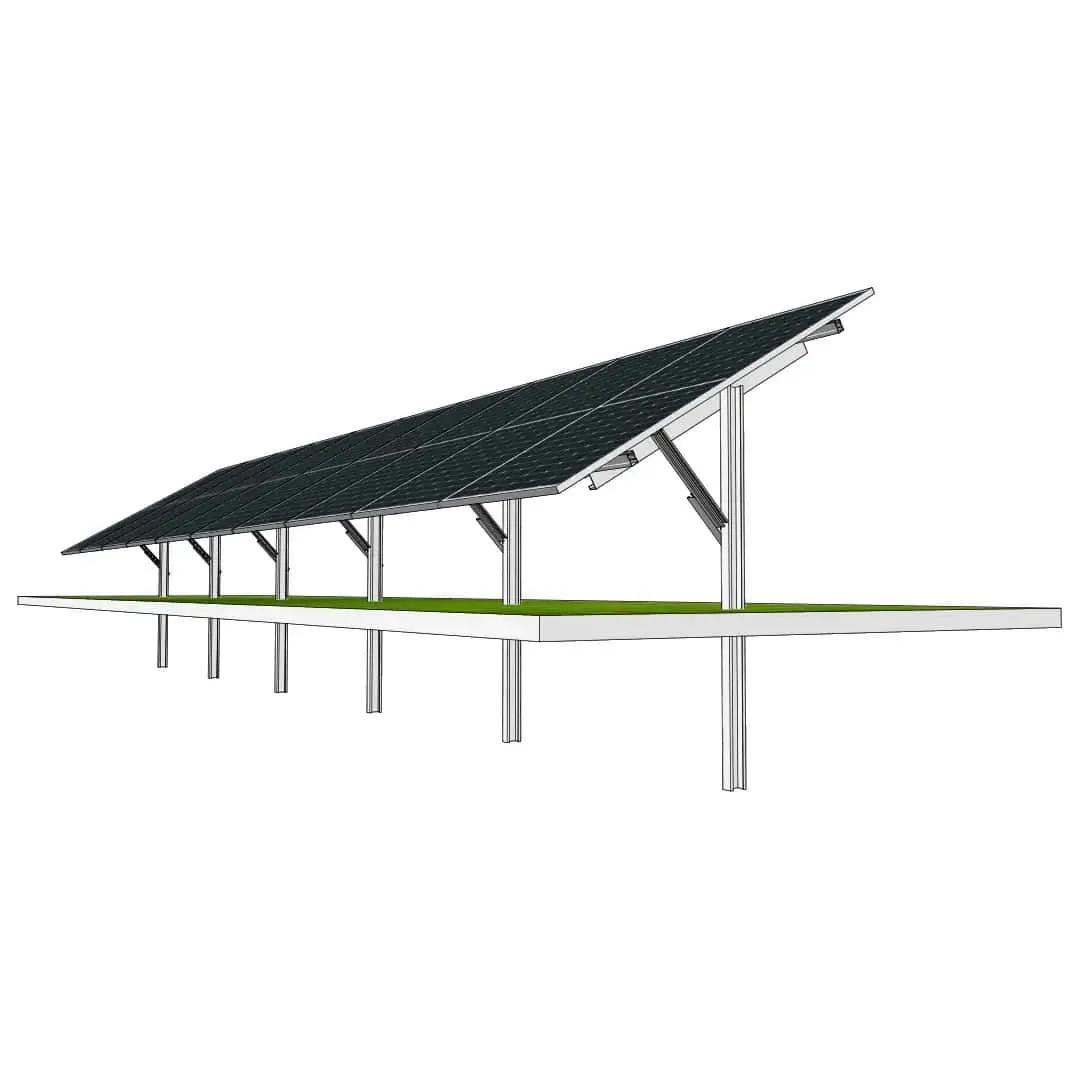

The Ground Mounted Solar Panels 1P-10 is a compact and highly adaptable racking system designed for professional photovoltaic installations. Built entirely from hot-dip galvanized steel, it provides outstanding durability and long-term resistance against corrosion, weathering, and environmental stresses. The system can be anchored either by rammed steel posts driven 1000 mm into the ground or through isolated concrete pier foundations, making it suitable for a wide variety of soil conditions and project sites. With its single portrait configuration, the 1P-10 is designed to hold 10 photovoltaic panels per table, balancing cost-efficiency, land optimization, and structural reliability. Its modular design and pre-drilled components simplify installation, reduce errors, and accelerate deployment, allowing EPCs and developers to minimize labor costs and shorten project timelines. Thanks to its versatility, this system is an ideal solution for small and medium-sized solar parks, as well as projects requiring flexible foundation methods without compromising strength or performance.
Advantages of the Ground Mounted Solar Panels 1P-10
- Maximizes land utilization: The 1P-10 system is designed to deliver maximum kWh production per square meter, even on constrained or irregularly shaped sites. By adopting a single portrait configuration, it minimizes shading effects between rows, enabling tighter spacing while maintaining optimal solar capture. This approach increases installed capacity per hectare, boosting project economics without requiring additional land. At the same time, the layout allows safe access for inspections and cleaning. Developers benefit from higher energy density and improved returns, especially in regions where land availability or costs are limiting factors.
- Minimizes long-term maintenance needs: All critical elements of the 1P-10 system are hot-dip galvanized or anodized, ensuring resistance to rust, wear, and environmental degradation. High-strength class 8.8 bolts maintain structural integrity under dynamic loads, while aluminum clamps securely fix modules without damaging frames. The system is built to endure dust, humidity, temperature fluctuations, and strong winds without performance loss. By minimizing the need for regular tightening or replacements, operational costs are reduced, and investors gain predictable, stable returns over the lifetime of the installation.
- Allows expansion or modification without redesign: The modular concept of the 1P-10 makes it easy to expand projects or adapt the structure to new panel sizes with only minor adjustments. Extensions can be integrated seamlessly into existing layouts, avoiding costly redesigns or engineering delays. This flexibility is especially valuable in multi-phase developments where continuity is essential. Investors and EPCs can future-proof their installations, knowing the system can evolve alongside advances in photovoltaic technology.
- Complies with modern green energy standards: The 1P-10 system is fully compatible with ESG and sustainability-linked project requirements. Its reversible foundation methods—either rammed posts or isolated concrete piers—minimize long-term soil disruption and reduce carbon footprint compared to traditional poured foundations. More than 95% of materials used are recyclable, supporting circular economy initiatives. This eco-conscious design strengthens compliance with funding programs and environmental tenders, giving developers an advantage in projects where sustainability metrics are evaluated.
Capacity

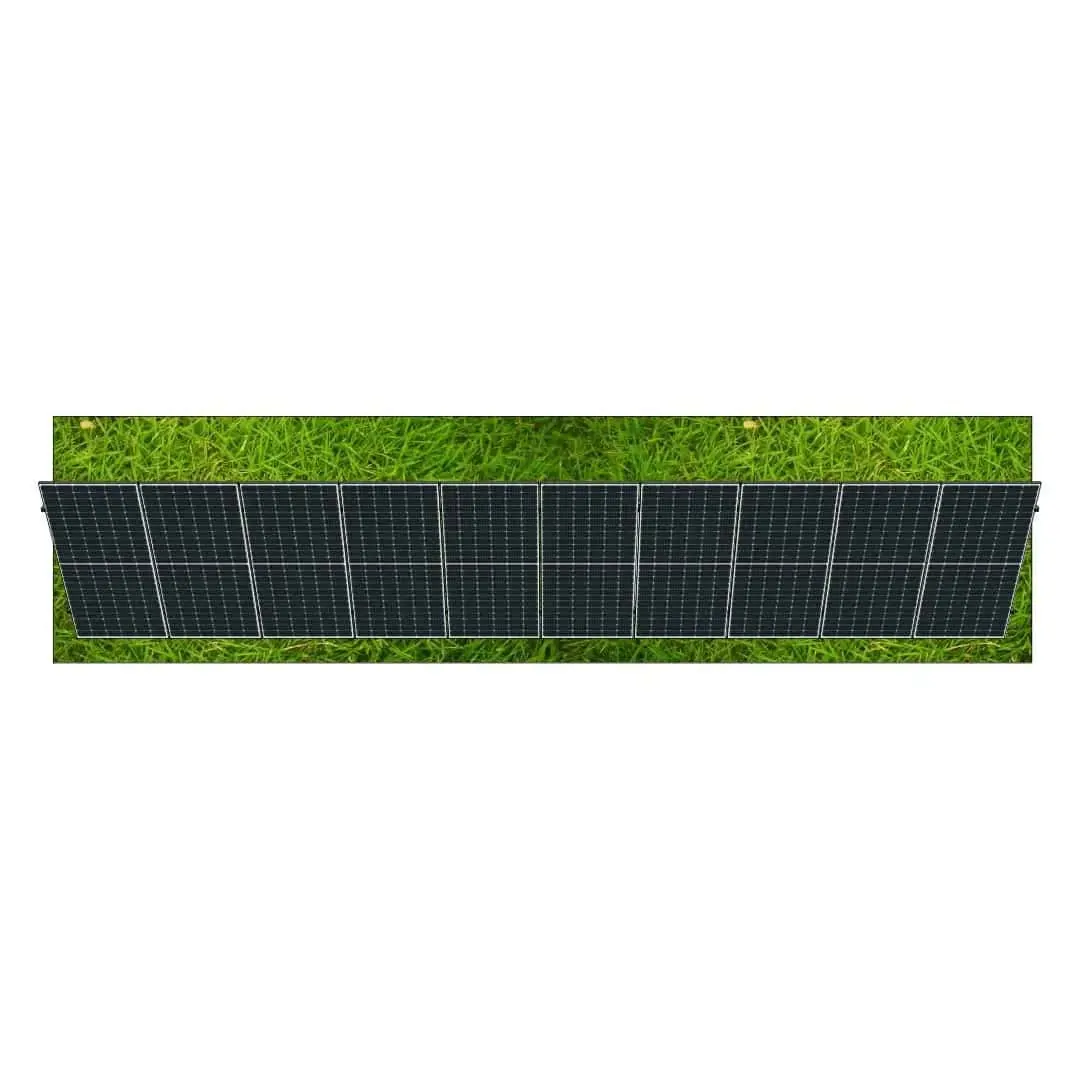

Each 1P-10 structure accommodates 10 photovoltaic panels with standard dimensions of 2278 × 1134 × 30 mm, ensuring a reliable and efficient configuration.
Tilt angles
The system is available with tilt angles of 20°, 23°, 25°, 28°, 30°, and 35°. Other tilt options can be manufactured upon request, depending on site conditions and production goals.
Compatible photovoltaic panels
The Ground Mounted Solar Panels 1P-10 is optimized for modules with dimensions of 2278 × 1134 × 30 mm. These are industry-standard dimensions, but upon request, the system can be adapted for modules of different sizes or thicknesses, ensuring full compatibility with diverse suppliers.
System components

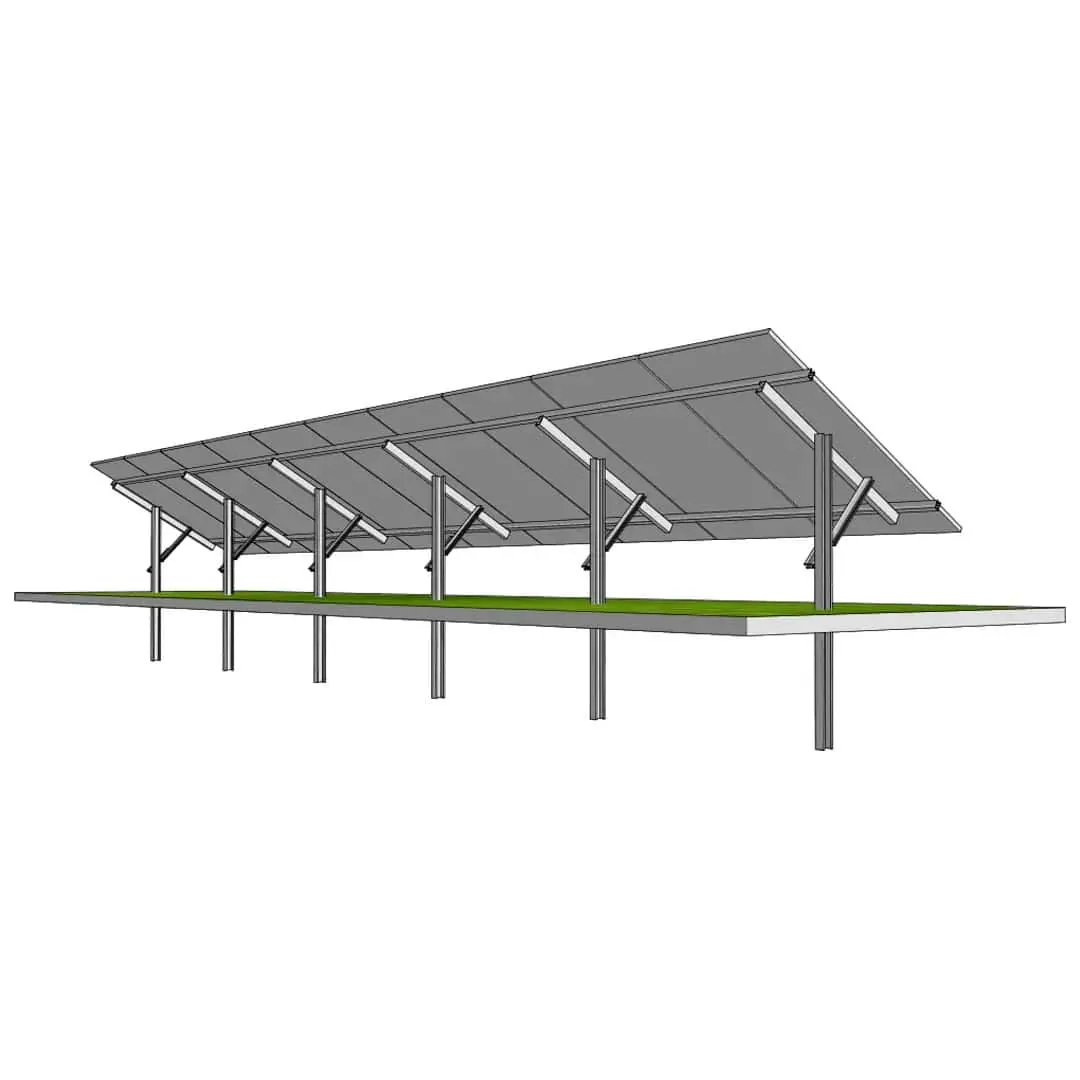

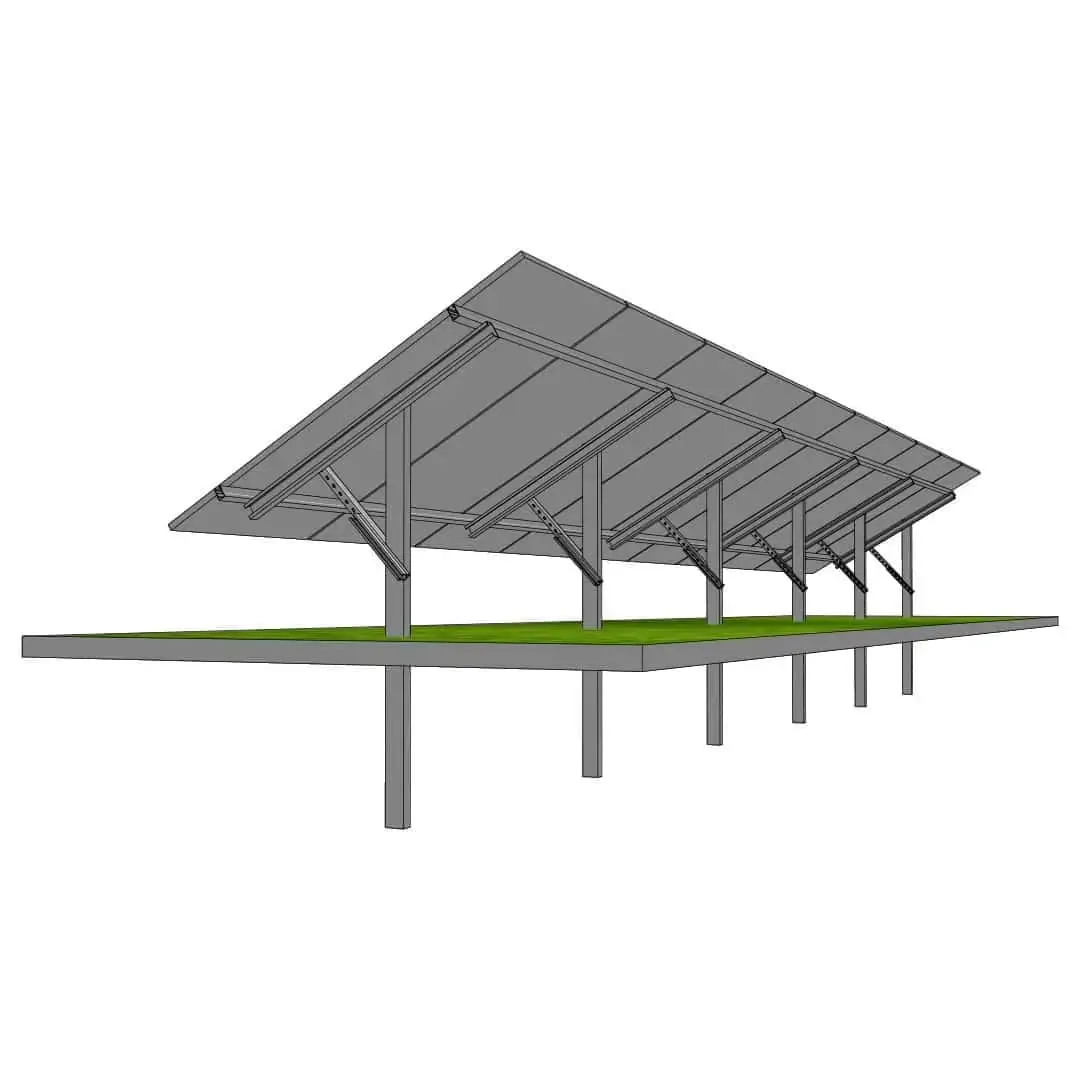

- 6 support poles: Galvanized steel posts, either driven 1000 mm into the ground or set in concrete piers. They provide the essential load-bearing capacity, anchoring the system securely and ensuring resistance to lateral and axial forces.
- 6 main beams: Longitudinal beams interconnecting the support poles. They distribute loads evenly across the array, provide structural stability, and simplify alignment thanks to pre-drilled holes and standardized connections.
- 4 cross purlins: Transverse components supporting the modules across the width of the structure. They guarantee proper spacing, prevent uplift during strong winds, and ensure panels remain aligned over time.

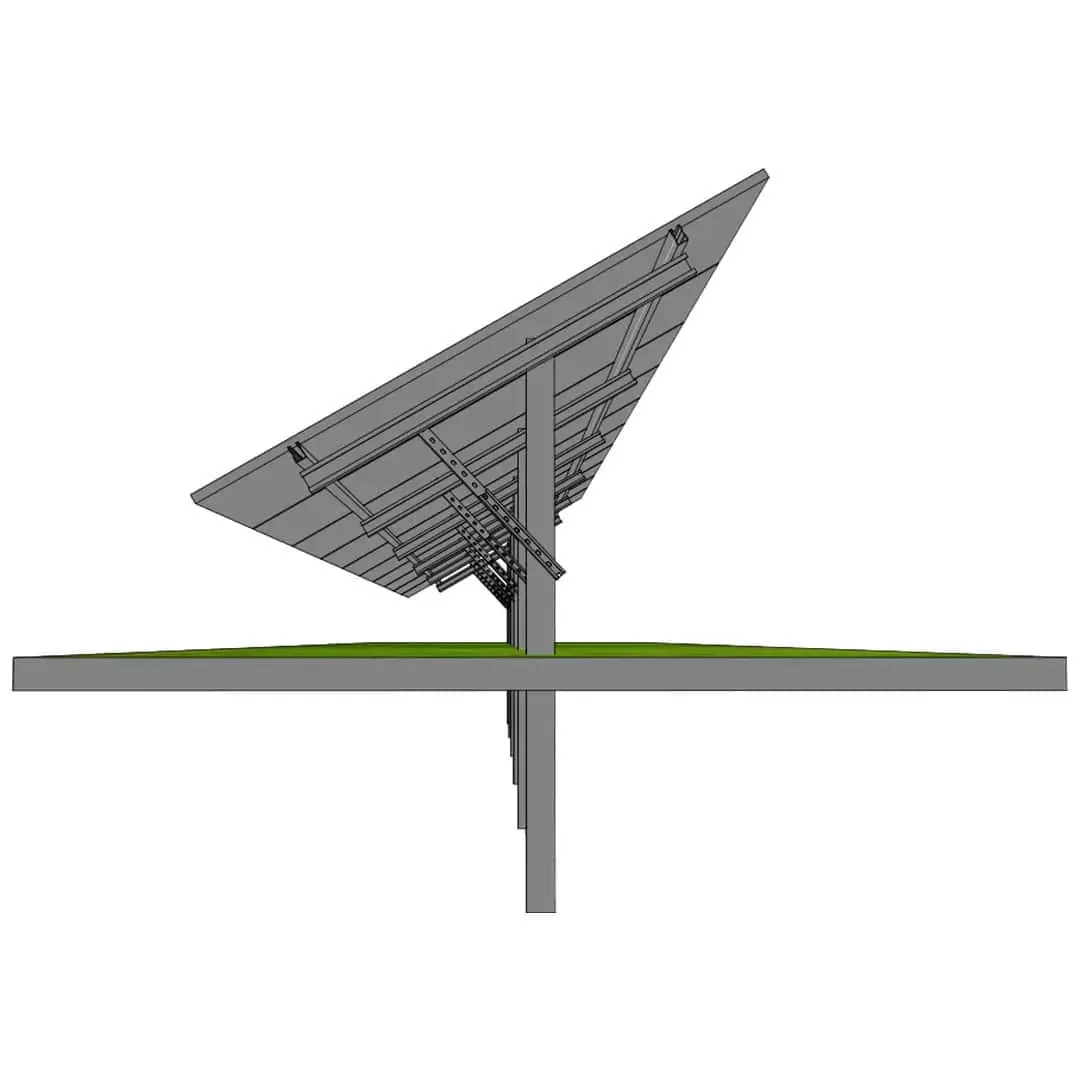

- 2 bracing members: Diagonal reinforcement bars that prevent torsional twisting and add rigidity to the structure. They maintain the system’s geometry even under challenging environmental stresses such as uneven terrain or gusty winds.
- Set of high-strength galvanized bolts (class 8.8): Corrosion-resistant fasteners designed to create durable, slip-resistant joints. Their tensile strength reduces loosening over time, minimizing the need for ongoing adjustments.
- Aluminum clamps: Mid and end clamps designed for precise, secure fastening of photovoltaic modules. Their anodized finish and stainless-steel hardware provide durability and compatibility with different module frame thicknesses.
As direct manufacturers, we maintain large stocks of ground-mounted solar structures for immediate delivery. The 1P-10 combines cost efficiency, fast installation, and long-term reliability, offering EPCs and developers a practical, sustainable, and future-proof solution for solar power plants.
