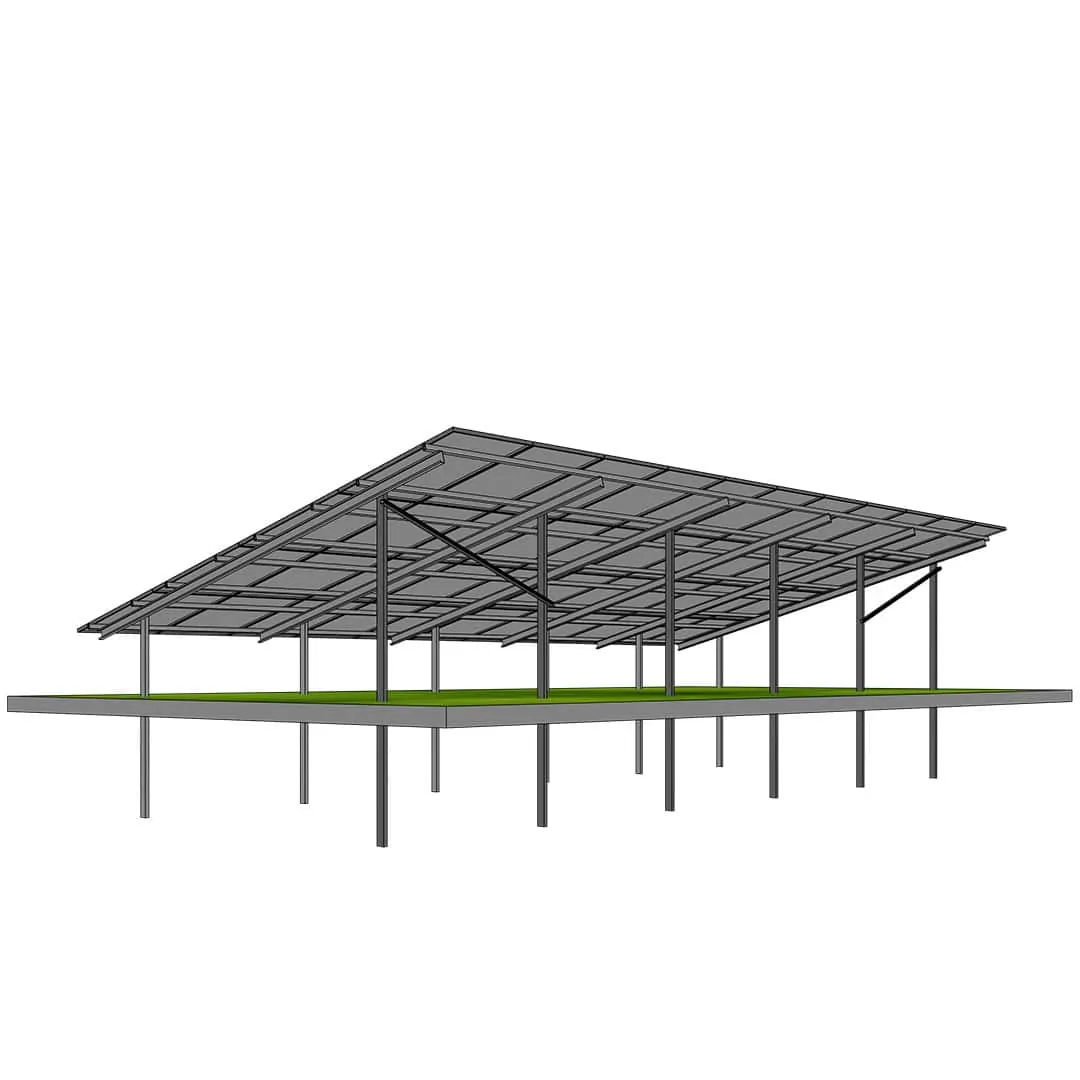

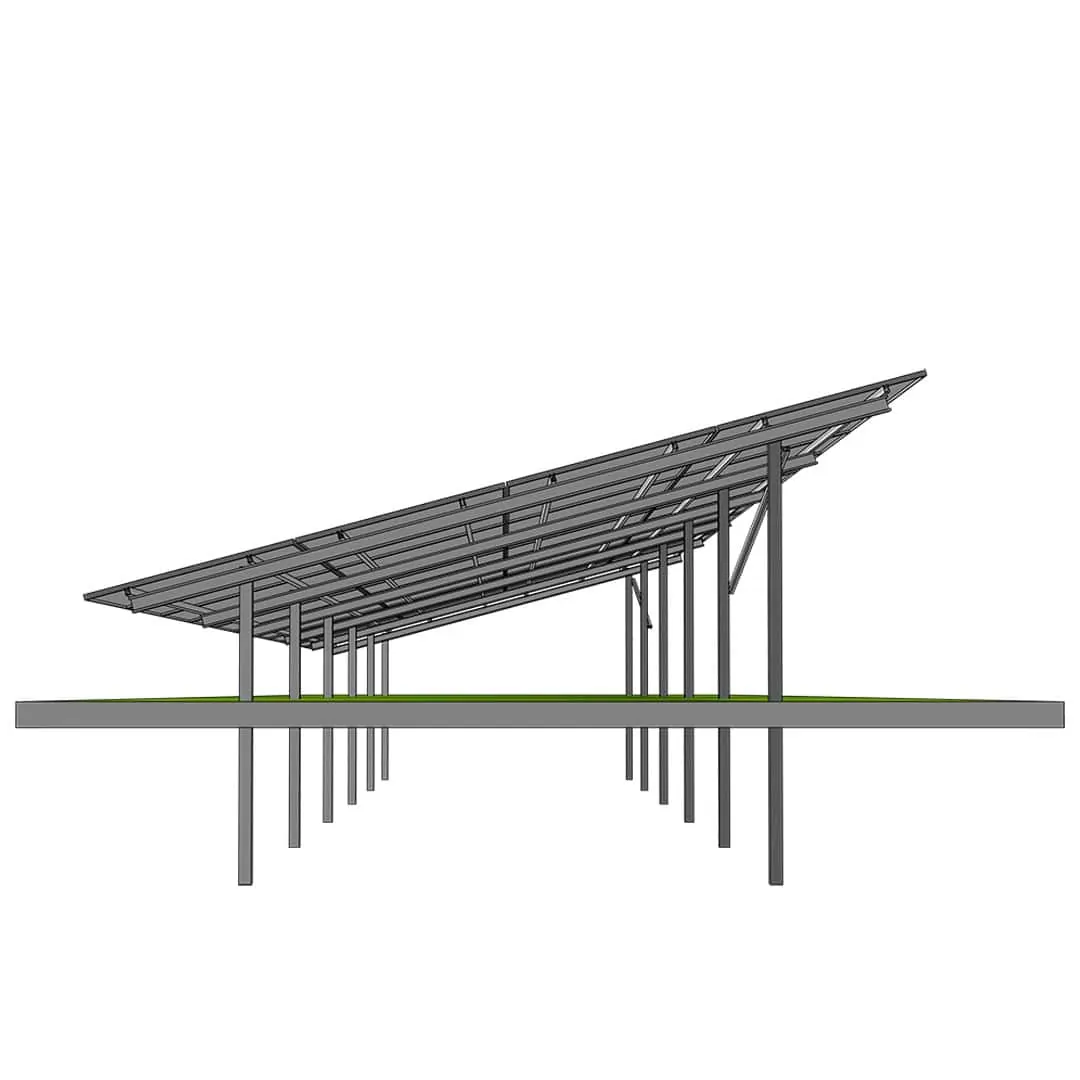

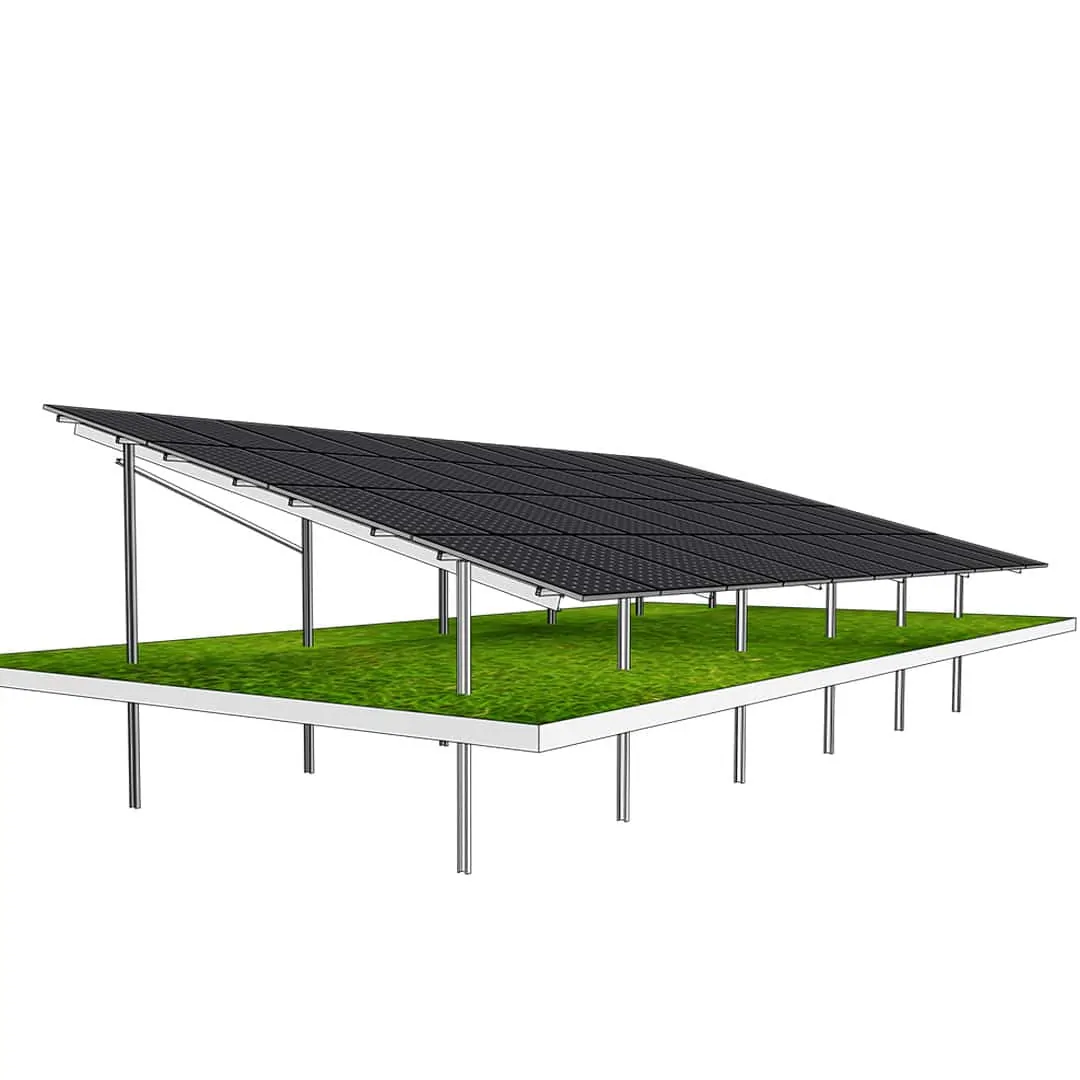

Ground mounted pv panels 4P-11
Engineered for utility-grade reliability and rapid deployment, this four-column ground-mount structure balances high energy density with clean cable management and straightforward O&M. Hot-dip galvanized steel members provide long-term corrosion resistance and stiffness under wind and snow loads, while the portrait layout preserves service aisles for vegetation control and cleaning. A modular geometry aligns neatly across rows and arrays to simplify design, compress installation time, and reduce BOS complexity. Well suited to commercial, agricultural, and industrial projects, the system supports predictable output, scalable capacity, and low lifetime maintenance across diverse soil and climate conditions.
Capacity: 44 panels (portrait orientation); panel dimensions 2278 × 1134 × 30 mm
Foundation system: Driven poles
Kit includes:
- Galvanized steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted pv panels 4P-11
The Ground mounted PV panels 4P-11 is a high-capacity racking solution engineered by Pro Solar Tech for utility-scale, commercial, and agricultural photovoltaic projects. With four portrait columns per rack supporting forty-four modules, it delivers strong energy density while maintaining clear service aisles for vegetation management, inspections, and cleaning. Its design balances large-scale energy output with practical accessibility, making it ideal for long-term, high-performance installations.
Manufactured from hot-dip galvanised steel, the 4P-11 structure provides excellent resistance to corrosion and mechanical loads. Reinforced with purlins and bracing members, and assembled with class 8.8 high-strength bolts, it guarantees structural rigidity and long-term stability under harsh weather conditions, including strong winds and heavy snow. The modular geometry of the system allows seamless alignment across rows and arrays, reducing BOS complexity and compressing installation time.
Designed for rapid deployment, the 4P-11 system enables EPC contractors to achieve predictable project schedules and reduced labour costs. For developers and investors, it ensures scalable capacity, dependable output, and a lower total cost of ownership. Whether deployed in solar parks, co-located with agricultural land, or integrated into industrial facilities, this ground-mount kit provides a robust, efficient, and economically attractive solution for modern renewable energy projects.
Advantages of Ground mounted PV panels 4P-11
- High-capacity structure with scalable deployment: Supporting forty-four panels per rack in four portrait columns, the 4P-11 system delivers substantial energy yield per structure. This high-density design reduces the number of support posts, beams, and foundations required per megawatt, improving installation efficiency and lowering overall project costs. Despite its size, the configuration maintains clear service aisles, ensuring access for vegetation management and maintenance tasks. For developers, this combination of capacity and accessibility makes large-scale deployments more cost-effective and easier to manage.
- Durability and long-term stability: The 4P-11 system is manufactured from hot-dip galvanised steel to provide superior resistance to corrosion and mechanical stress. Reinforced with purlins and bracing members, and secured with high-strength bolts, the system withstands wind loads, snow accumulation, and seasonal temperature fluctuations without compromising alignment. This structural resilience ensures reliable energy output and reduces the risk of costly repairs or downtime. For investors, the durability of the 4P-11 system guarantees predictable returns over decades of operation.
- Simplified installation and efficient maintenance: The modular geometry of the 4P-11 system accelerates installation with prefabricated components and pre-drilled connection points. Crews can assemble the racks quickly and accurately, shortening project timelines and reducing labour costs. Once operational, integrated cable routing ensures tidy layouts and easy access for inspections, cleaning, and panel replacement. By simplifying both installation and O&M, the system minimises downtime and ensures consistent energy production throughout its lifecycle.
- Cost efficiency and lifecycle value: By combining high panel capacity per rack with robust construction and streamlined installation, the 4P-11 system provides a strong economic advantage. It reduces upfront capital expenditure, minimises long-term maintenance, and supports scalability across diverse projects. The result is a lower total cost of ownership and stronger financial performance. For developers and investors, this makes the 4P-11 a secure, cost-efficient, and future-proof choice for utility-grade solar projects.
Compatible photovoltaic panels
The Ground mounted PV panels 4P-11 is designed for large-format modules measuring 2278 × 1134 × 30 mm, which are widely available from Tier 1 manufacturers. This ensures secure fixation, strong structural performance, and reliable compatibility across the system’s lifetime. Supporting a standard panel format also guarantees procurement flexibility and replacement availability. We can also manufacture customised structures for other dimensions and types of photovoltaic modules.
Capacity
44 panels/structure

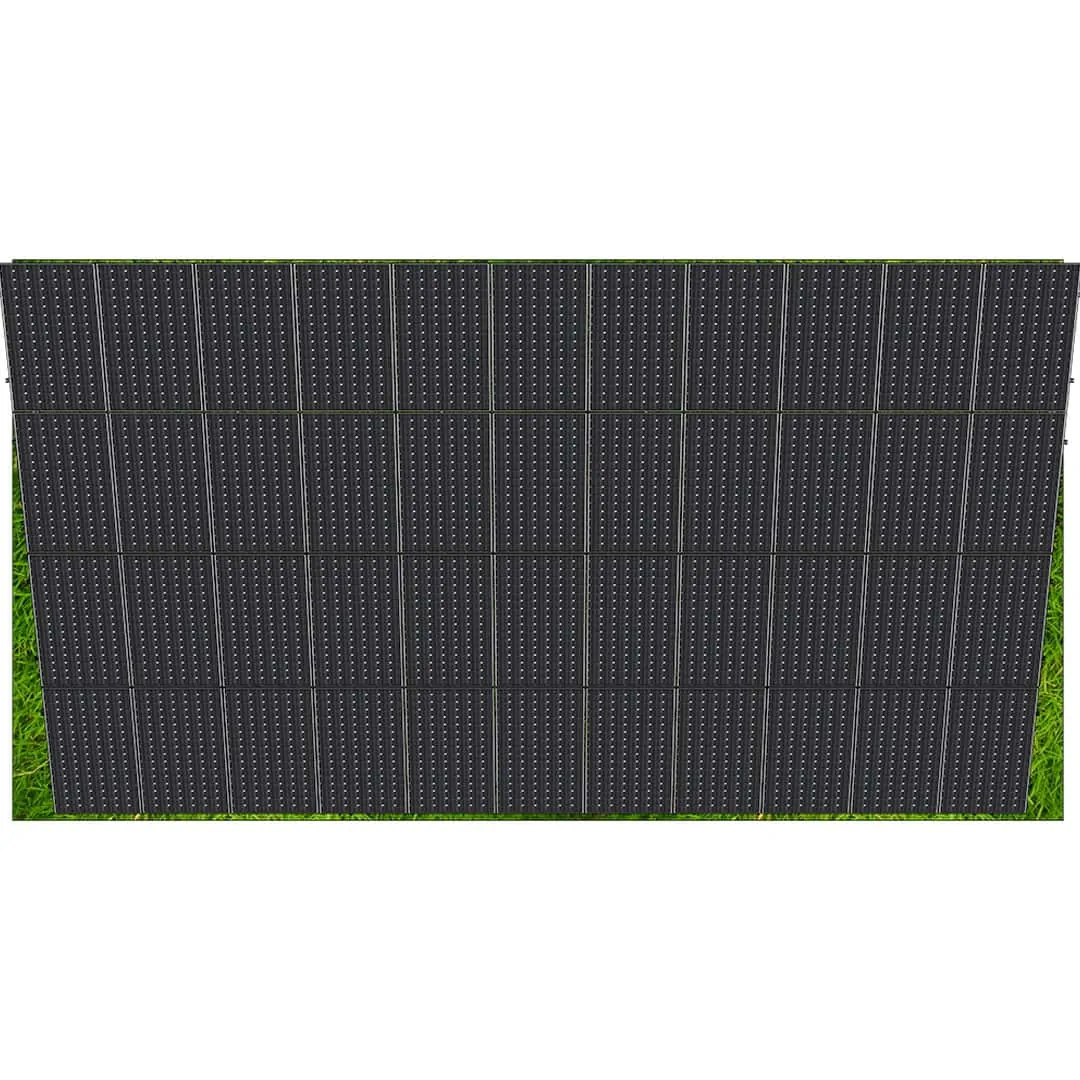

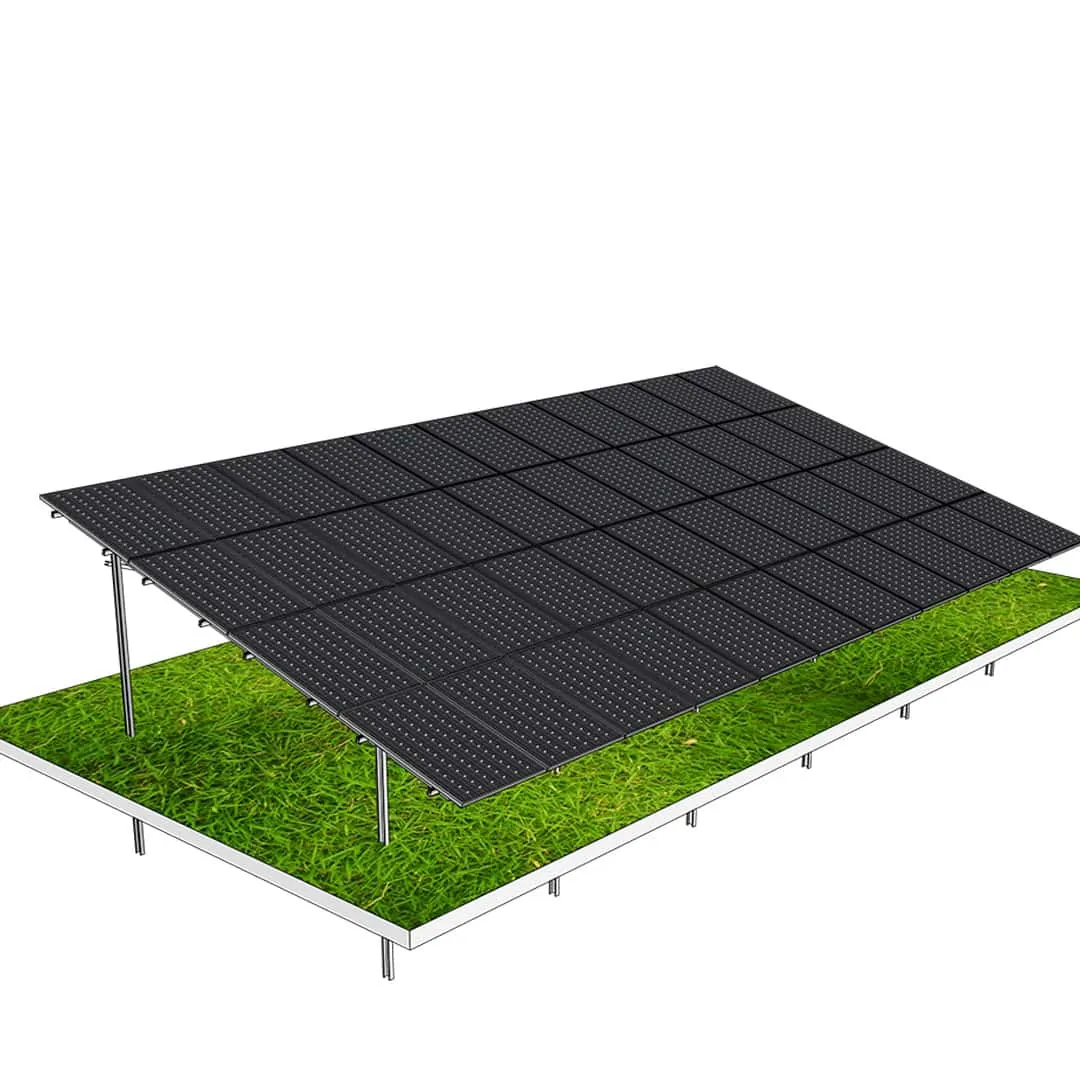

Each 4P-11 structure accommodates forty-four photovoltaic modules in portrait orientation across four vertical columns. With panel dimensions of 2278 × 1134 × 30 mm, the configuration delivers significant output per rack while preserving service aisles for efficient vegetation control and O&M.
Foundation system
Driven poles – a proven foundation solution that ensures fast installation, strong anchoring, and long-term stability across a wide range of soil and climate conditions.

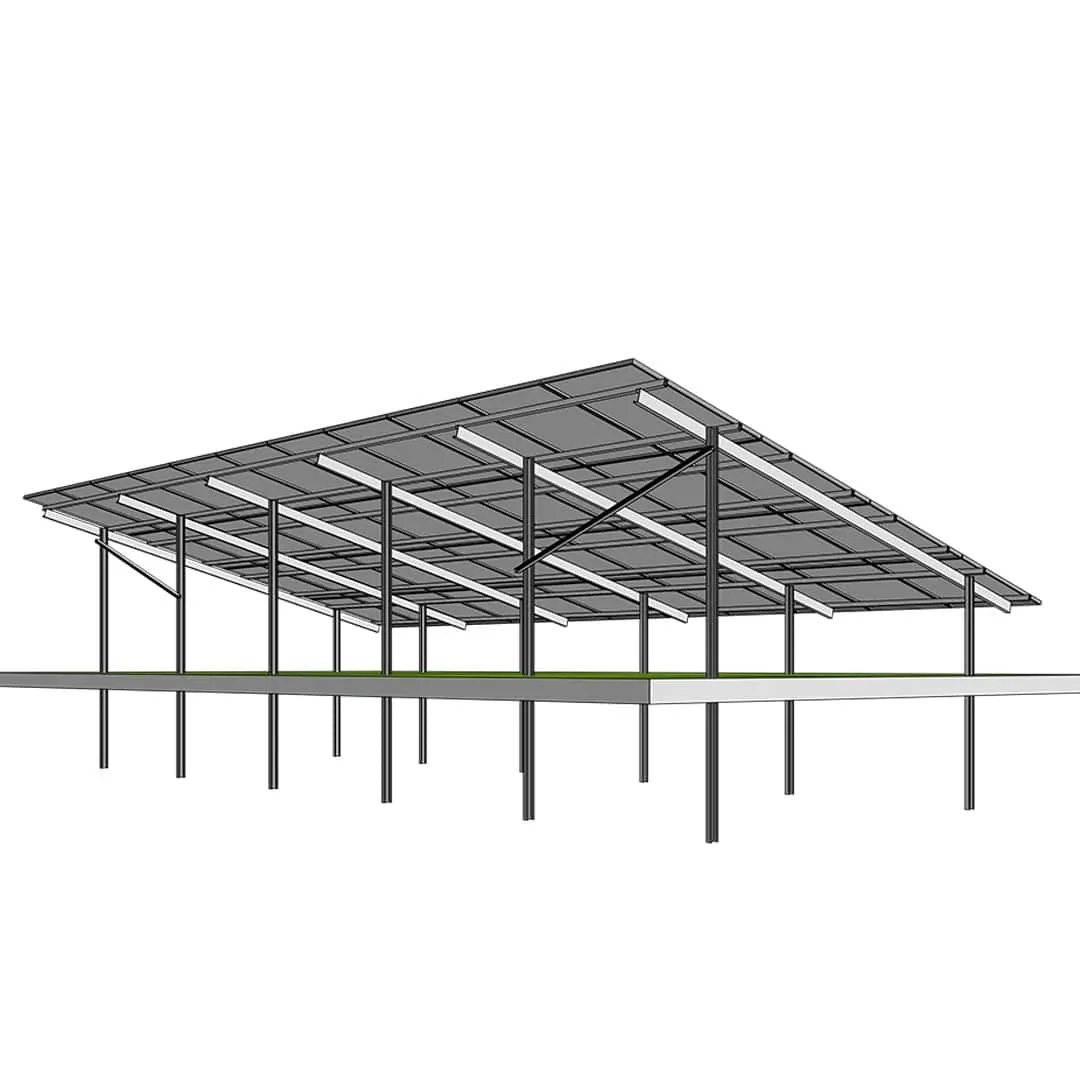

System components
- Galvanised steel poles (support posts)
- Main beams
- Transverse purlins
- Bracing members for structural reinforcement
- Complete set of high-strength galvanised bolts (class 8.8)
- Aluminium clamps for panel fixation
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
