Ground Mounted Solar Systems 4P-11 East-West

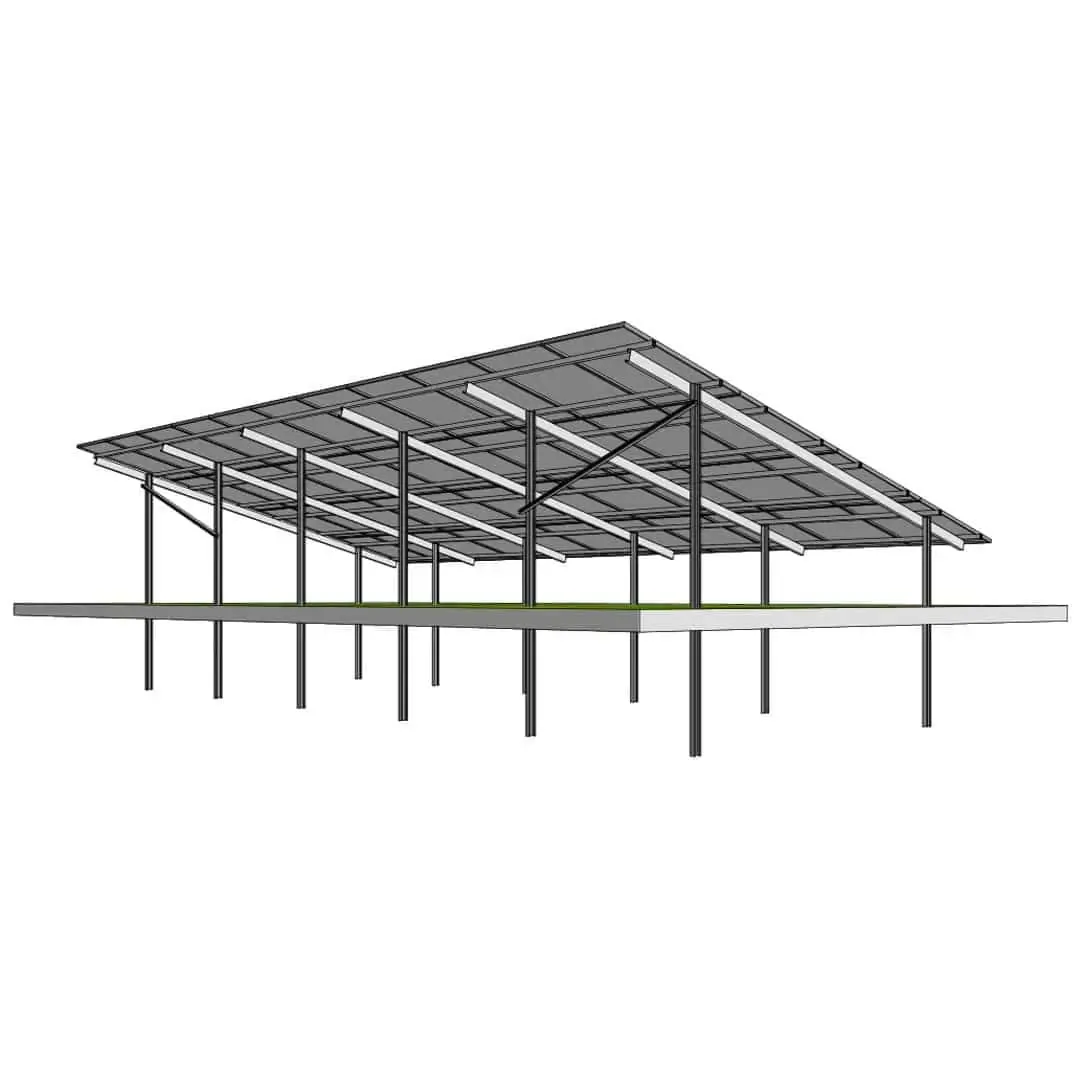

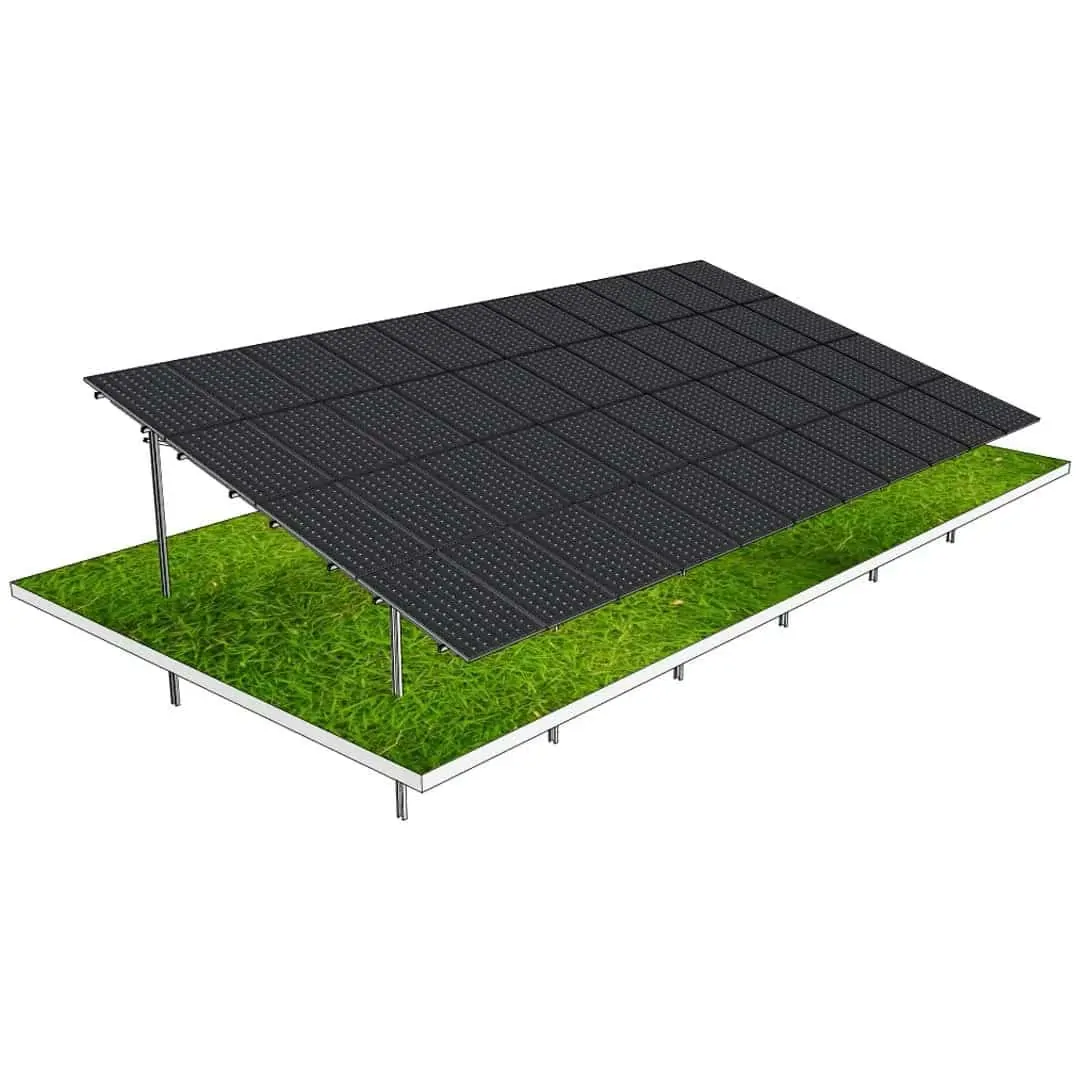

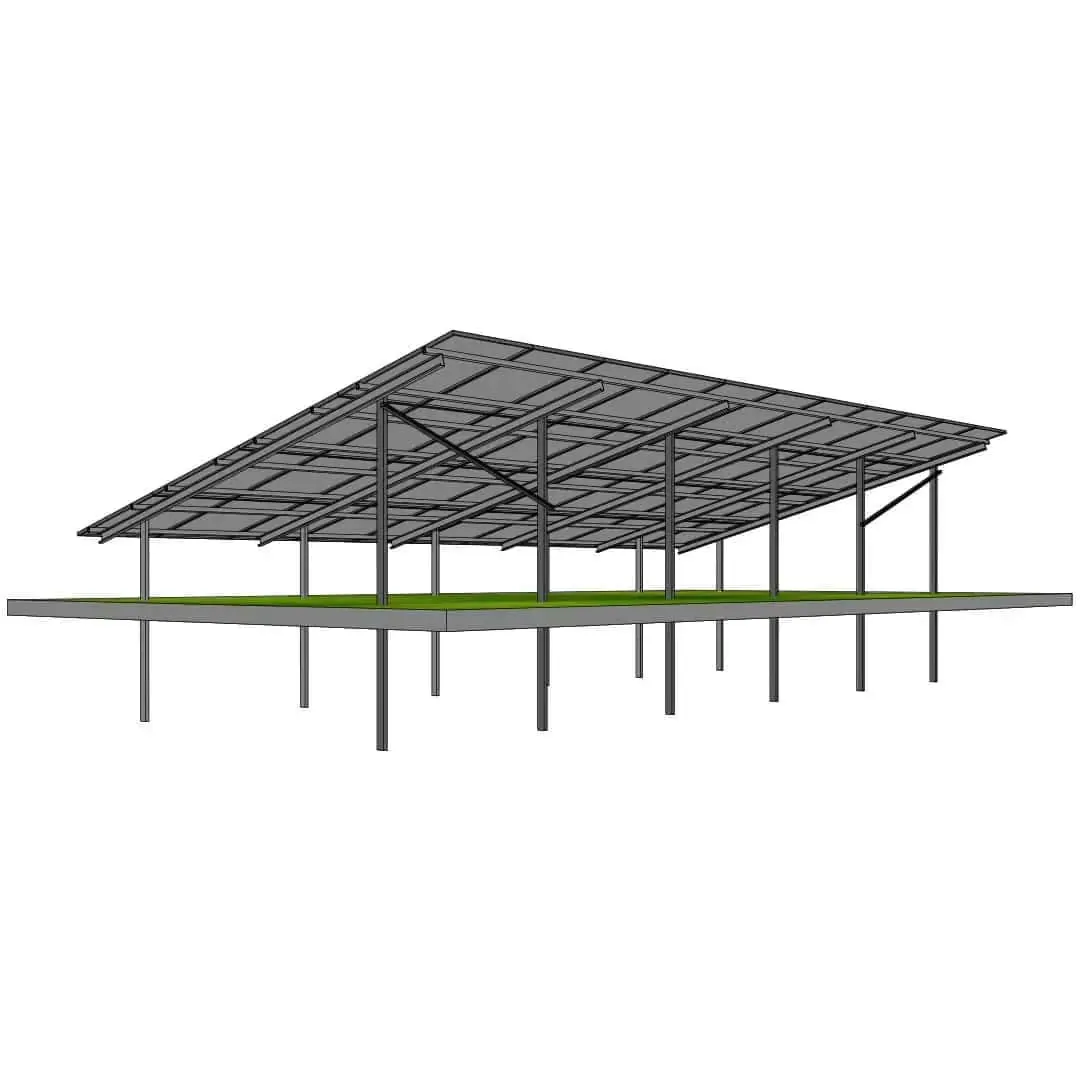

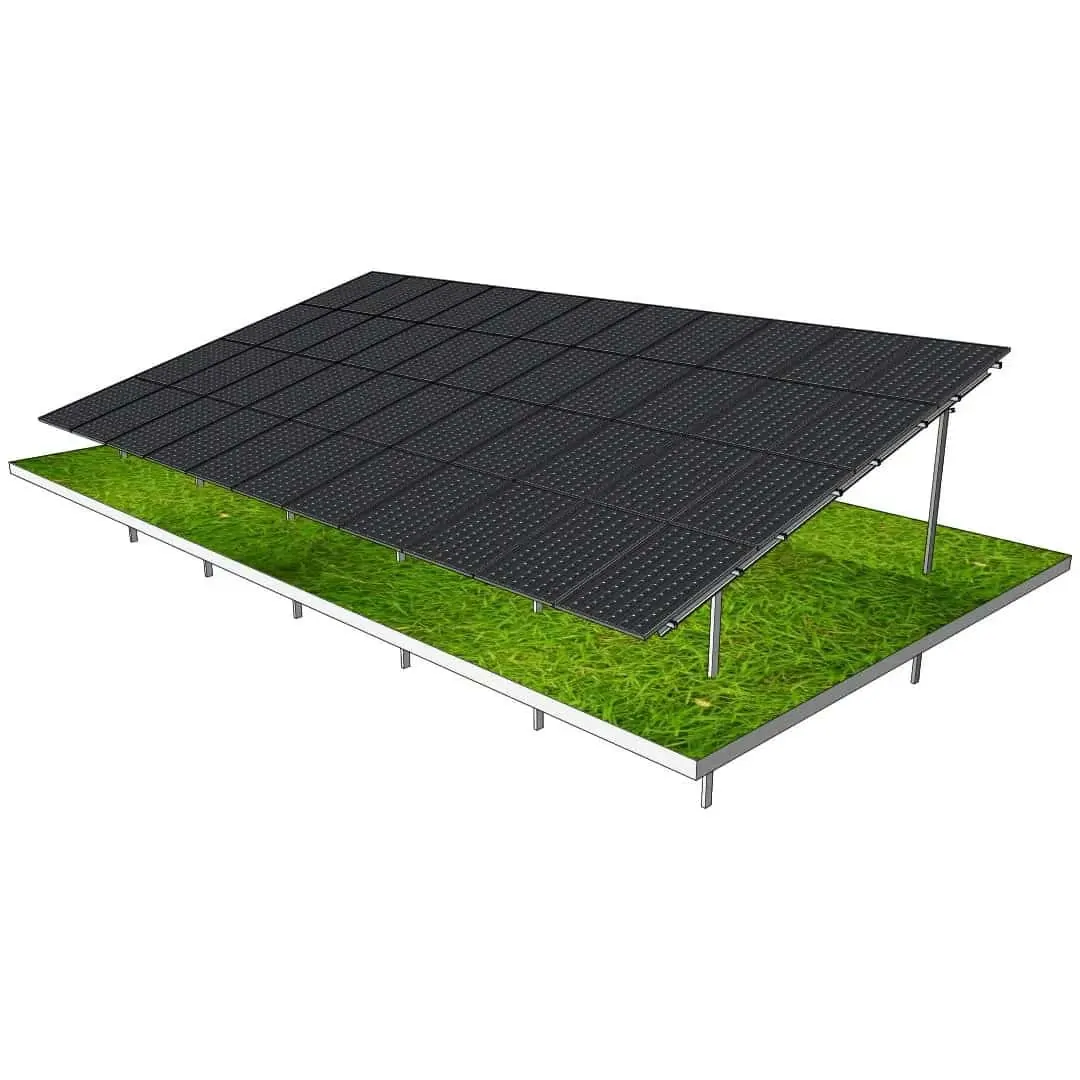

The Ground Mounted Solar System 4P-11, designed for East-West orientation, is a robust and efficient solution for ground-based photovoltaic plants. Its fully galvanized steel frame ensures durability with corrosion resistance and low maintenance, even under challenging environmental conditions. With tilt angle options of 8°, 10°, 12° and 15°—optimized for East-West layouts—the system offers flexible configuration to maximize energy yield throughout the day. The modular design adapts to varied terrains and production needs, while the clamping system simplifies both panel alignment and future servicing. With sufficient capacity to host a complete row of modules, the 4P-11 structure provides developers with a cost-effective system that balances installation speed, operational safety, and long-term reliability.
Capacity: 44 photovoltaic panels (2278 × 1134 × 30 mm)
Foundation system: galvanized steel poles driven 1500 mm into the ground
Kit includes
- 12 galvanized steel poles (support posts)
- 6 main beams
- 24 transverse purlins
- 2 bracing members for structural reinforcement
- Complete set of high-strength galvanized bolts (class 8.8)
- Aluminum clamps for panel fixation
Solar panels
Poles
Foundation system
Info: The photovoltaic panels have standard dimensions of 2278 × 1134 × 30 mm, with the tilt angles listed above. For other sizes or angles, please specify in your quote request.
Ground mounted solar systems 4P-11 East-West

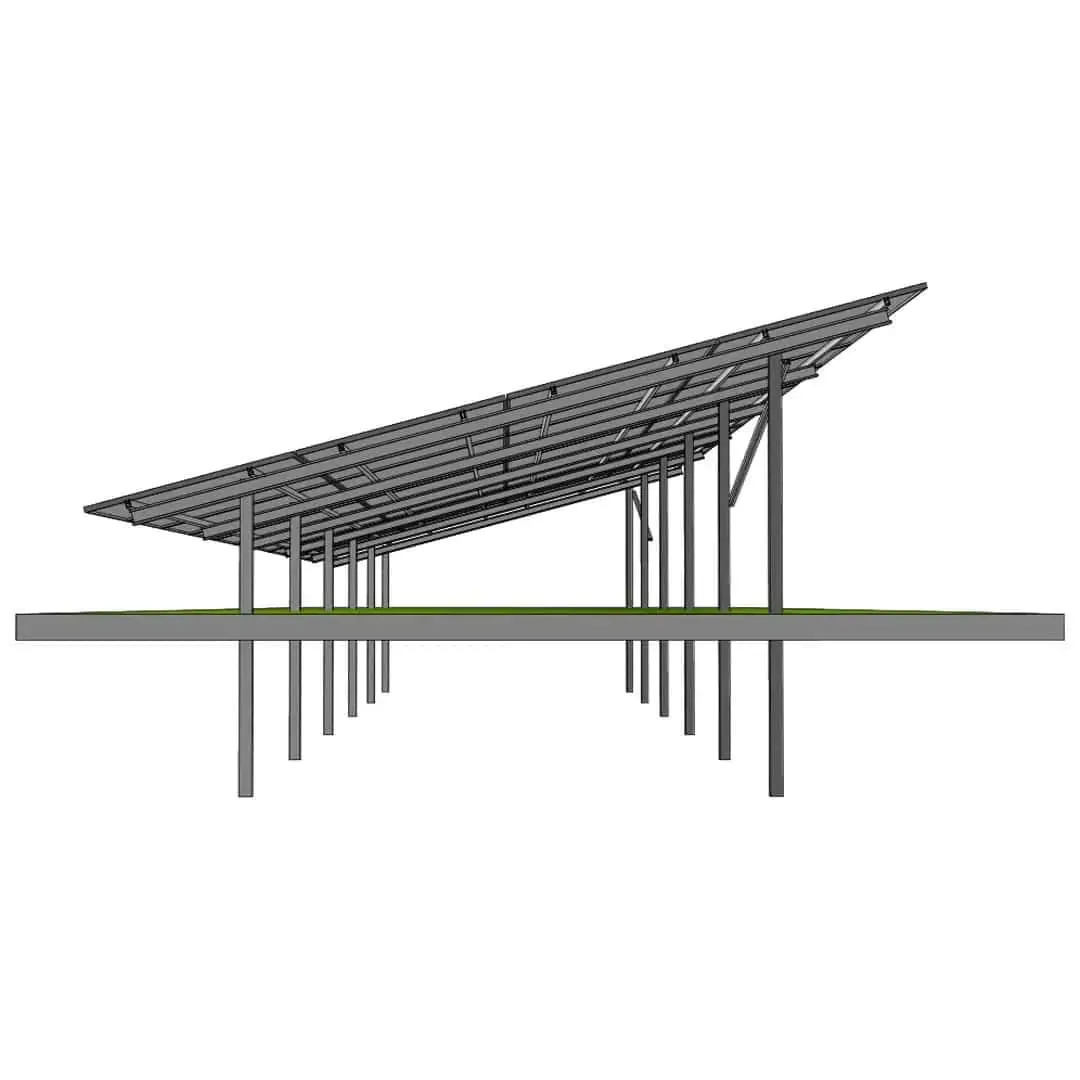

The Ground mounted solar systems 4P-11 East-West is a high-performance mounting solution specifically designed for large photovoltaic installations where efficiency, durability, and speed of deployment are critical. Built entirely from hot-dip galvanized steel, the system ensures long-term corrosion protection and low maintenance costs even in harsh environments. With a configuration of four modules in portrait orientation and eleven rows per table, this support accommodates a total of 44 panels per structure, making it the ideal choice for commercial and industrial applications. Its East-West design is particularly suited for maximizing energy production across the entire day, reducing peak load effects while increasing consistency of power output. The modular design allows for quick adaptation to different terrains and project requirements, while the ramming foundation system ensures rapid installation without concrete, minimizing environmental impact and reducing construction costs. For developers seeking a cost-effective and reliable solution, the 4P-11 East-West system provides the perfect balance of strength, flexibility, and long-term performance.
Key Advantages of the 4P-11 East-West Ground Mounted Solar System
- Maximizes land utilization: With its compact design and efficient row configuration, the Ground mounted solar systems 4P-11 East-West makes full use of available land while maintaining easy access for inspection and service. The East-West orientation enables closer row spacing without shading losses, optimizing energy density per square meter of land. This configuration is ideal for projects where land costs are significant or where maximizing production from limited areas is a priority.
- Minimizes long-term maintenance needs: Constructed from corrosion-resistant galvanized steel, high-strength zinc-coated bolts, and durable aluminum clamps, the system is engineered for decades of reliable operation. The robust components withstand challenging environmental conditions such as humidity, dust, strong winds, and thermal fluctuations without compromising structural integrity. This minimizes the need for frequent interventions, reduces operational costs, and ensures stable performance across the system’s lifespan.
- Allows expansion or modification without redesign: Thanks to its modular design, the system can be extended by simply adding identical sections or adjusted to accommodate different module sizes with minimal changes to the clamping system. This flexibility is essential for investors looking to scale projects in stages or upgrade equipment in the future. It eliminates the need for costly redesigns and accelerates the approval and construction phases of subsequent expansion stages.
- Complies with modern green energy standards: The East-West 4P-11 system is installed without concrete foundations, relying instead on direct ramming of galvanized steel posts into the soil at a depth of 1500 mm. This approach reduces the project’s carbon footprint, minimizes land disturbance, and makes the installation fully reversible at the end of its life cycle. With over 95% of its materials recyclable, the system meets stringent ESG and sustainability requirements, ensuring eligibility for environmentally driven funding programs.
Capacity

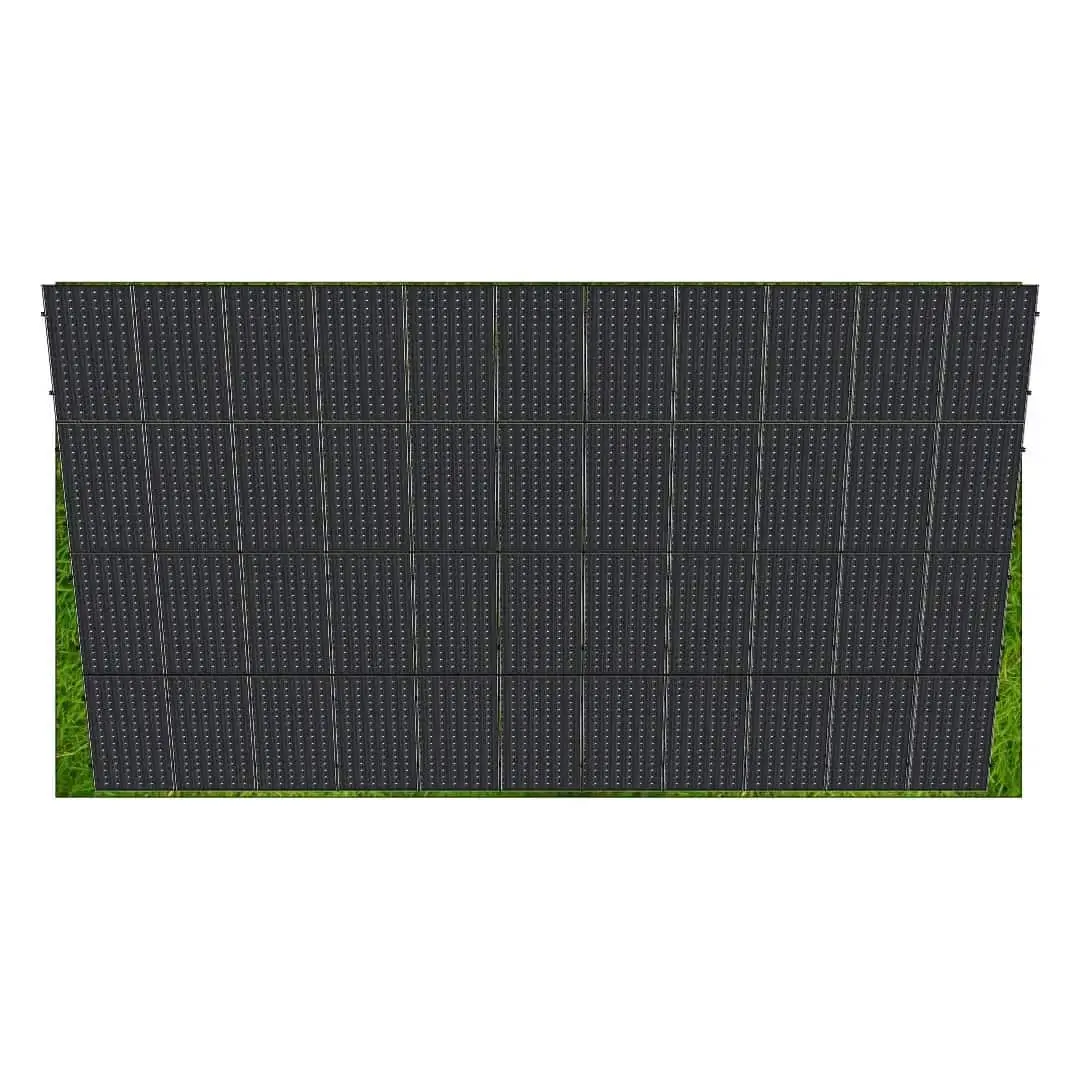

The 4P-11 East-West mounting system is designed to support 44 photovoltaic panels with dimensions of 2278 × 1134 × 30 mm, ensuring efficient use of space and balanced daily power generation.
Tilt angles
The system is available with tilt angles of 8°, 10°, 12°, and 15°, optimized for East-West configurations. Custom tilt angles can also be produced on request to match specific project requirements.
Compatible photovoltaic panels
The Ground mounted solar systems 4P-11 East-West is optimized for standard modules with dimensions of 2278 × 1134 × 30 mm. This size is widely adopted in the industry, ensuring compatibility with Tier 1 module manufacturers. However, the system can also be engineered to support other panel sizes or thicknesses, allowing developers to use a wide range of modules without additional redesign.
System components
- 12 support poles: Hot-dip galvanized steel posts rammed 1500 mm into the ground to provide a stable foundation. This eliminates the need for concrete and ensures durability against wind and snow loads.
- 6 main beams: Longitudinal galvanized beams that distribute structural loads evenly across the installation, forming the backbone of the support.
- 24 cross purlins: Precision-aligned members that hold the modules in place, ensuring proper orientation, alignment, and stability throughout the system.
- 2 bracing members: Diagonal braces that provide essential rigidity, preventing torsion, movement, or vibrations under strong wind conditions.
- Set of high-strength galvanized bolts (class 8.8): Industrial-grade bolts that ensure secure connections across all steel members. Zinc coating prevents corrosion and guarantees long-term fastening strength.
- Aluminum clamps for panel fixation: Lightweight, corrosion-resistant clamps that firmly secure the photovoltaic modules without damaging their frames.
As direct manufacturers, we supply a wide range of ground-mounted solar systems from stock. The Ground mounted solar systems 4P-11 East-West is available for immediate delivery, ensuring projects can be executed quickly and efficiently. Designed for long-term reliability, easy installation, and compliance with sustainability standards, it is the ideal choice for professional solar developers and EPC contractors.
| Tilt angle | |
|---|---|
| Solar panels | |
| Poles | |
| Foundation system |
